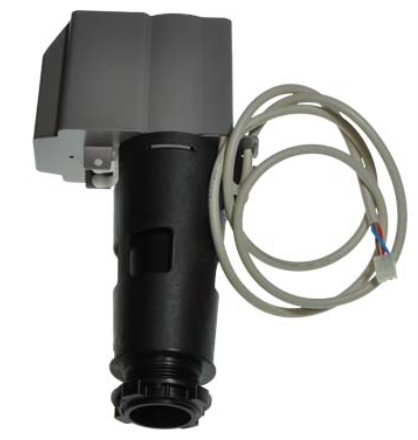

Seeley 24V Drain Valve

This Seeley 24V Drain Valve is a crucial replacement part for maintaining your evaporative cooler, helping techs and DIY owners keep units running efficiently. In the harsh Australian climate, regular draining prevents scale and mould buildup, ensuring your cooler delivers fresh, clean air without costly breakdowns.

I've seen firsthand how a clogged or faulty drain valve can lead to water overflow and premature pump failure, especially on a hot summer day when you need your cooler working reliably.

Best For

• HVAC Technicians
• Evaporative Cooler Service Teams
• Competent DIY Homeowners
• Refrigeration Apprentices working on domestic systems

Compatibility

This 24V drain valve is designed for use with a range of Seeley evaporative cooler models, including:

• Breezair: EXQ, EZQ, EXS, EXD, EZD, EXH, EZH, ES, EV, EX, EZ series
• Braemar: BMQ, LCQ, LCS, LCB, BM series
• Coolair: CVP, CPL, CPS, CPQ series

If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Seeley part ensures reliable performance and a perfect fit.
• Operates on a standard 24V power supply, compatible with most modern evaporative cooler control systems.
• Essential for automated draining cycles, preventing stagnant water and minimising scale build-up in the cooler's tank.
• Direct replacement for faulty or worn-out drain valves, restoring proper water management to your system.

Technical Specifications

What's in the Box

• 1 x Seeley 24V Drain Valve (PN 105345)

Using It on the Job

1. Isolate Power: Always ensure the evaporative cooler's power supply is isolated at the mains switch and confirm lockout before starting any work.
2. Drain & Disconnect: Drain any remaining water from the cooler's tank and carefully disconnect the wiring and plumbing from the old drain valve, noting its orientation.
3. Install New Valve: Mount the new Seeley 24V drain valve, ensuring all connections are secure and watertight. Follow the manufacturer's specific instructions for your cooler model.
4. Test Operation: Restore power and initiate a drain cycle to verify the valve opens and closes correctly. Check all connections for any leaks immediately after installation.
5. Final Check: Observe the cooler during normal operation to ensure proper water levels are maintained and the drain function activates as expected.

Limitations & Safety Notes

• Always isolate power before performing any maintenance or installation work on evaporative coolers.
• Ensure the cooler's control board provides 24V output for the drain valve; incompatible voltages can cause damage.
• Only compatible with the specific Seeley evaporative cooler models listed above.
• Follow all Australian electrical and plumbing standards, and relevant Safe Work guidance during installation.

Tradie Pro Tip

When you're replacing the drain valve, take the extra five minutes to give the cooler's water tank a thorough clean. Getting rid of any sediment and algae now will prevent premature blockages and keep the system running sweeter for longer.

Pair With

Pair with new evaporative cooler filter pads and a quality tank cleaning solution for a complete annual maintenance service, ensuring your unit runs efficiently throughout the hot season.
