Mastercool Valve Core Remover/installer - MC91496

Made for sparkies and fridgies who hate slow vacs.

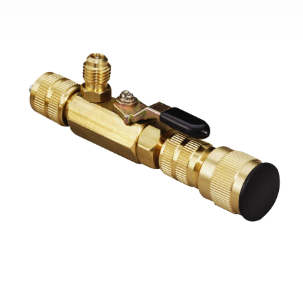

The Mastercool 91496 Valve Core Remover/Installer lets you pull the Schrader core and get full, unrestricted flow during recovery, evacuation and recharge and no mucking around. It’s a tidy, brass-bodied tool with a built-in access port so you can keep the gauges hooked up while you work.

Ideal for service techs on splits, VRF, refrigeration cabinets and rooftopsm quicker jobs, fewer call-backs. Too easy.

Key features & trade benefits

• Removes valve core under pressure — eliminates the restriction for full refrigerant & vacuum flow, speeding up recovery/evacuation.
• Built-in 1/4″ access port — connect gauges/pump without breaking your setup; monitor pressures as you go.
• Brass construction — tough, workshop-proof, and a bloody good fit for daily field use.
• Faster vacs = fewer call-backs — removing the core can dramatically cut evacuation time when used correctly.
• Standard 1/4″ SAE interface — suits common service valves; grab a 5/16″ adapter for R410A/R32 minisplits.

Why this tool matters on the job

Ever been on a Brisbane roof in 38-degree heat waiting for the micron gauge to budge? Yank the core with the 91496 and you’ll see the needle drop quicker — she’ll be right. The side access port means you can pull a deep vacuum while watching pressures, then swap straight to charge without tearing the setup apart. For techs running tight schedules across Sydney metro and surrounds, that’s minutes saved on every callout.

Browsing related gear? See our HVAC fittings, valves & service tools to build out your kit.

Pro tip

Before you start, crack the 91496’s side port and connect your micron gauge there — no hose blanks needed. If you’re on a system with 5/16″ service ports (many R410A/R32 minis), add a 1/4″→5/16″ adapter to keep everything sealed and flowing.

Compatibility & system info

• Interface: 1/4″ SAE flare (typical service valve size).
• Applications: HVAC/R service on split systems, VRF/VRV, reach-ins, and condensing units (use appropriate adapters for 5/16″ ports).
• Refrigerants: Suitable where 1/4″ ports are present across legacy (R22/R134a) and many current systems; use correct adapters for R410A/R32 minisplits.

Built for Aussie conditions. Whether you’re chasing leaks in humid Sydney summers or pulling vacuums on a dusty Brisbane site, this tool keeps the job moving — no worries.

What’s included

• Mastercool 91496 Valve Core Remover/Installer with built-in access port.

Specifications

Brand / Model	Mastercool 91496
Body	Brass
Function	Removes Schrader core to provide full flow during recovery/evacuation/charge
Side Port	1/4″ access port for gauges/pump
Fittings	Standard 1/4″ SAE (use adapter for 5/16″ minisplit ports)

Specs derived from Mastercool resources and industry listings.

Warranty & returns

Covered by HVAC Shop’s standard warranty and returns policy. If it arrives faulty or not as described, we’ll sort it — fast and fair.

FAQs

Does pulling the core really speed up evacuation?
Yes — removing the restriction improves flow and can significantly reduce vacuum time when done before charging.

Is this safe to use on charged systems?
It’s designed for core removal with the system sealed. Always follow best practice and local regulations for refrigerant handling. See AIRAH’s Refrigerant Handling Code of Practice.

Will it fit R410A/R32 minisplits?
Many minisplits use 5/16″ ports — just add a suitable 1/4″→5/16″ adapter.

What’s the difference vs the Mastercool 91498 kit?

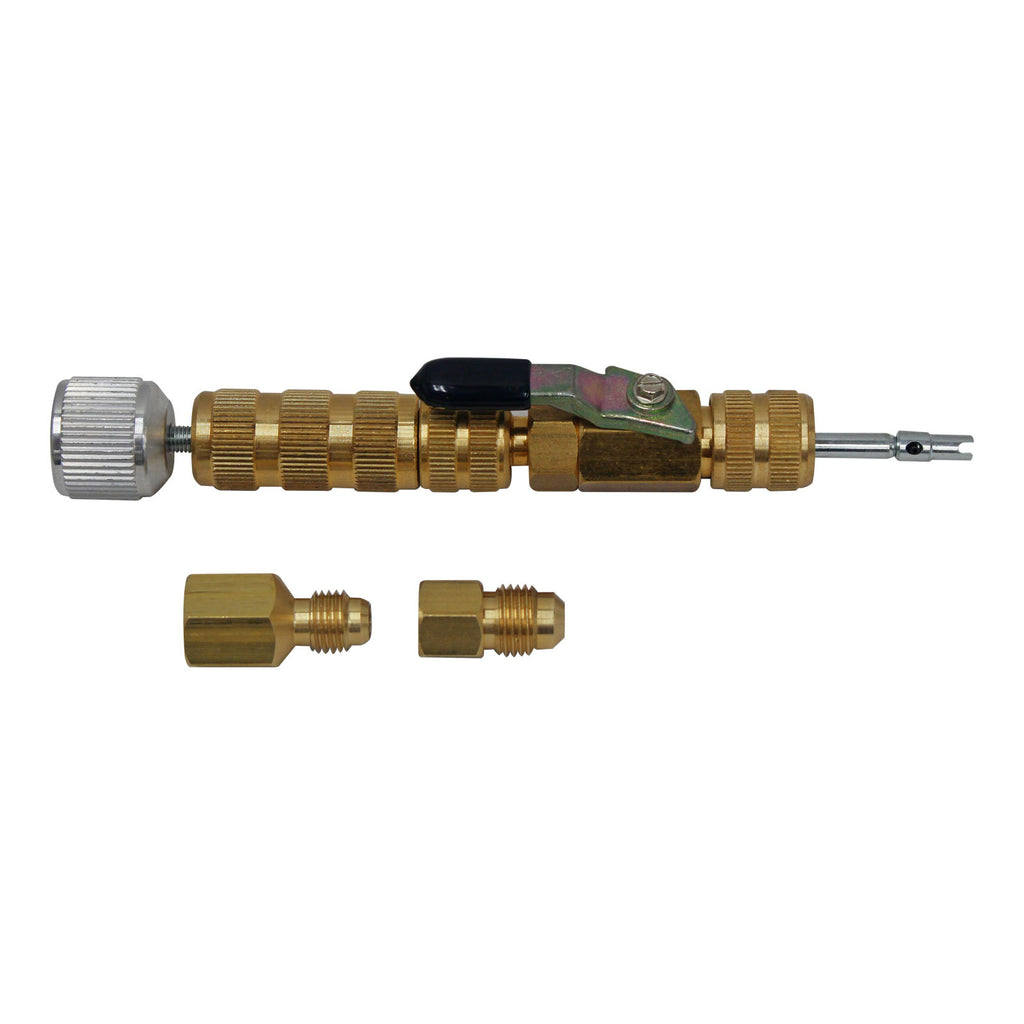

The 91498 is a universal, high-pressure kit with a patented safety nut and multiple fittings for R410A work. Choose it if you want the safety-lock mechanism and case.
