Mastercool

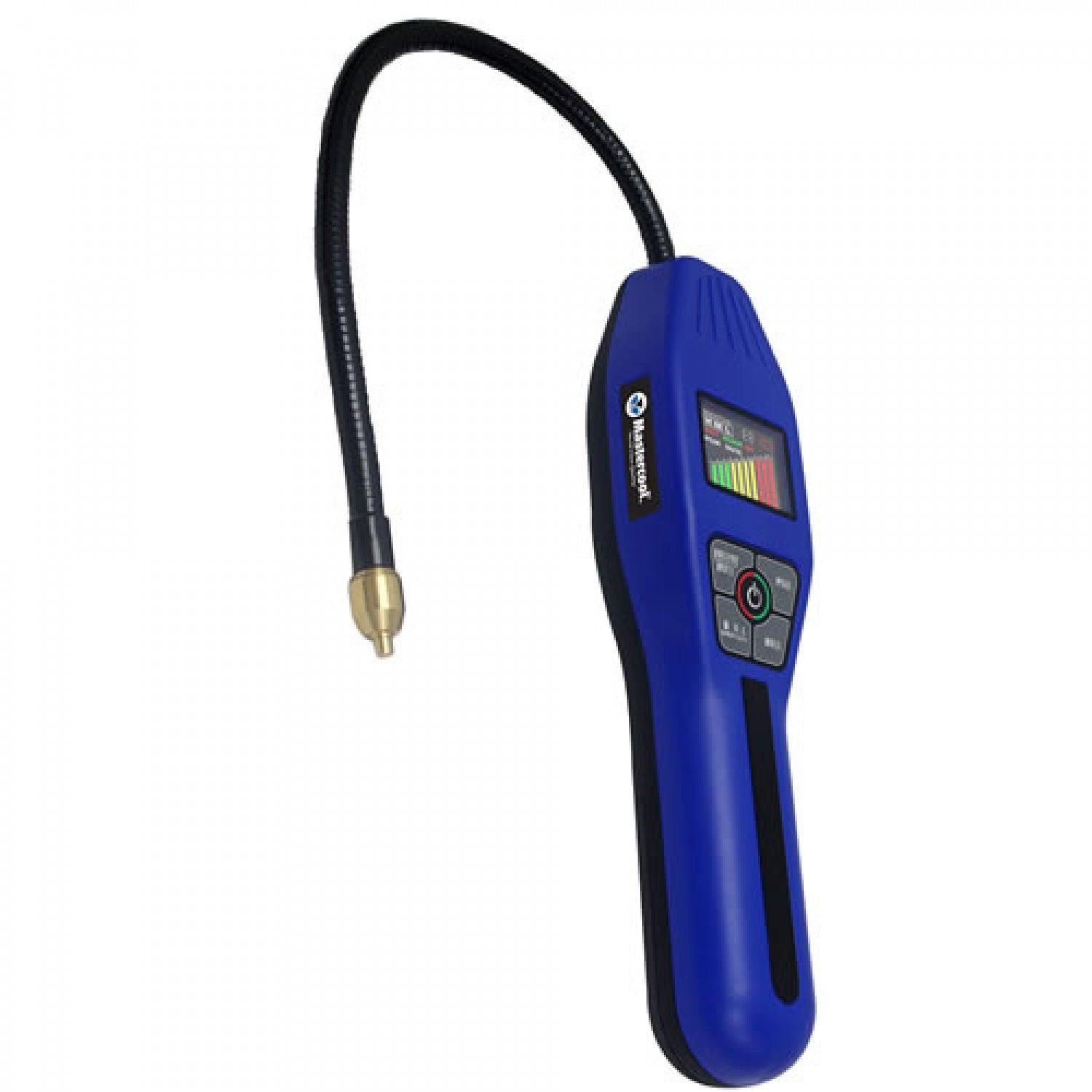

Electronic Leak Detector W/ LCD Display 55800
The Electronic Leak Detector with LCD Display 55800 is a tool designed for detecting refrigerant leaks in air conditioning and refrigeration systems. It is a highly sensitive device that can detect even the smallest leaks, helping to prevent damage to the system and the environment.
The leak detector features an LCD display that shows the level of refrigerant in the system, allowing the user to quickly identify leaks and take action. It is designed to work with all types of refrigerants, including CFCs, HFCs, and HCFCs.
Detects:
- Combustible Gases
- Hydrogen
- Refrigerants: All CFCs, HCFCs & and HFCs
<< Meets and exceeds J2791 (R134a), J2913 (R1234yf) and EN 14624 >>
The 55800 leak detector employs a new metal oxide gas sensor for the detection of chlorofluorocarbon gasses and blends. This tin oxide sensor is characterized by high sensitivity and fast response, upon detecting the presence of extremely small levels of chlorofluorocarbon gases. Integrated into the design is a powerful
microprocessor that automatically selects the best operating conditions for the sensor, to ensure optimum performance. The optimum sensor performance is maintained and monitored throughout the life of the sensor.
Specifications
-
SENSITIVITY:
- HIGH ≥ 0.05 oz/yr (1.5 g/yr)
- MEDIUM ≥ 0.25 oz/yr (7 g/yr)
- LOW ≥ 0.5 oz/yr (14 g/yr)
-
PROBE:
- Intelligent tip design that senses the condition of the environment, to eliminate the potential of false alarms.
- Flexible 16” probe for difficult to reach locations
-
DISPLAY:
- Progressive LCD with vertical bars corresponding to the magnitude of the detected leak
- Visual indication of the selected sensitivity range
-
REFRIGERANTS:
- Detects all refrigerants (CFC’s, HCFC’s, & HFC’s)
- Unit has been tested and approved to work with R1234yf as well as R32 and R410a
- SENSOR LIFE: 2000 hours
- OPERATING TEMPERATURE RANGE: 0 to 140˚F
- POWER: Two (2) D Batteries
- BATTERY LIFE: 60 hours continuous use
- WEIGHT: 1 lb. 8 oz
“Super Sensitive Function” allows the unit further sensitizing beyond the standard settings for locating small leaks with gases such as R1234yf and R407C
LCD Features
- WAIT: This indication flashes whenever the unit is in the wait mode. This could occur whenever the unit is turned on or interference is detected
- READY: This indication appears when the unit is ready for use
- INT: This indication appears whenever the microprocessor detects conditions that are not suitable for reliable leak detection. Excessive wind blowing, blocked probe (no air flow), burned out fan, or a missing or defective sensor that needs to be replaced
- BATTERY SYMBOL: When the battery symbol becomes illuminated this is an indication that the battery is low and needs to be replaced
- H – M – L: High, Medium and Low sensitivity ranges will be displayed accordingly based on the selection made on the keypad
- SIGNAL LEVEL BARS: There are 10 vertical signal level bars on the display corresponding to the level of signal detected by the unit
- ERROR SIGNALS: E1 through E9 indicates diagnostic signals
Keypad Functions
- ON/OFF: Press the ON/OFF button on the center of the keypad to turn the unit on or off
- VOLUME/MUTE: Press the VOLUME/MUTE button to control the volume of the unit
- H M L SENSITIVITY: Press the H M L SENSITIVITY button to select the desired sensitivity level
- HOLD: Press the HOLD button to freeze the signal bars. Press the HOLD button again to disengage
- PEAK: Press the PEAK button when multiple leaks are suspected as being present
55800: Packaged in a blow molded case with 2 “D” batteries, leak test vial and replacement filters
Replacement Parts:
55800-FILTER: 3 replacement filters
55800-VL: Leak test vial
