Description

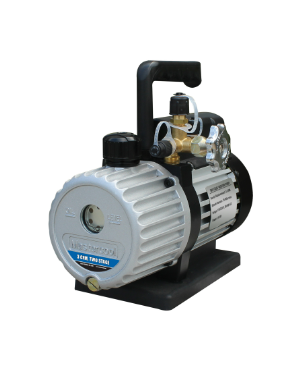

Mastercool 8 CFM Two Stage Vac Pump
227 lit/min / 189 lit/min
Part/Code: MC90068-2V-220-B
Product Description:
A good quality vacuum pump is an integral tool for complete A/C service. Mastercool vacuum pumps are durable and time tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your applications.
- • New U.S. Design
- • Stronger Motor
- • Gas Ballast Valve Helps Prevent Oil Contamination Caused by High Moisture
- • Easily Removable Vapor Discharge/Oil Fill Port. Contains Internal Check Valve to Prevent Escape of Liquid Oil
- • Large Oil Level Sight Glass with Max/Min Oil Level Indicator
- • Easily Accessible Oil Drain Valve
- • Large, Light Weight Reinforced Base for Stable Positioning
- • Field Replaceable Cartridge
- • Cooling Fins to Keep Temperature Cooler During Extended Motor Operation
- • High Volume Fan Provides Cool Air to Motor and Pump
- • Manifold Valve Isolates Pump from the System when Testing for Leaks. Includes 3 Inlet Ports, 1/4", 3/8" SAE and 1/2" ACME
- • Dual Voltage Capability
- • Thermally Protected Motor with On/Off Rocker Switch
Specifications
| No. of Stages | 2 |
| Free Air Displacement | 227 lit/min / 189 lit/min |
| Ultimate Vacuum | 15 Microns |
| Pump Motor | 3/4 HP |
| Pump Speed | 1440 RPM |
| Electrical Specs | 110/220 V, 50/60 Hz |
| Power Cord | 220 V Cable (Shuko) |
| Shipping Weight | 34 lbs (15.43 kg) |
| Dimensions (cm) | 38 x 18 x 27 |
Service Information
- • Oil Capacity: 19 oz / 570 ml
- • Replacement Cartridge: 90168-B
