Description

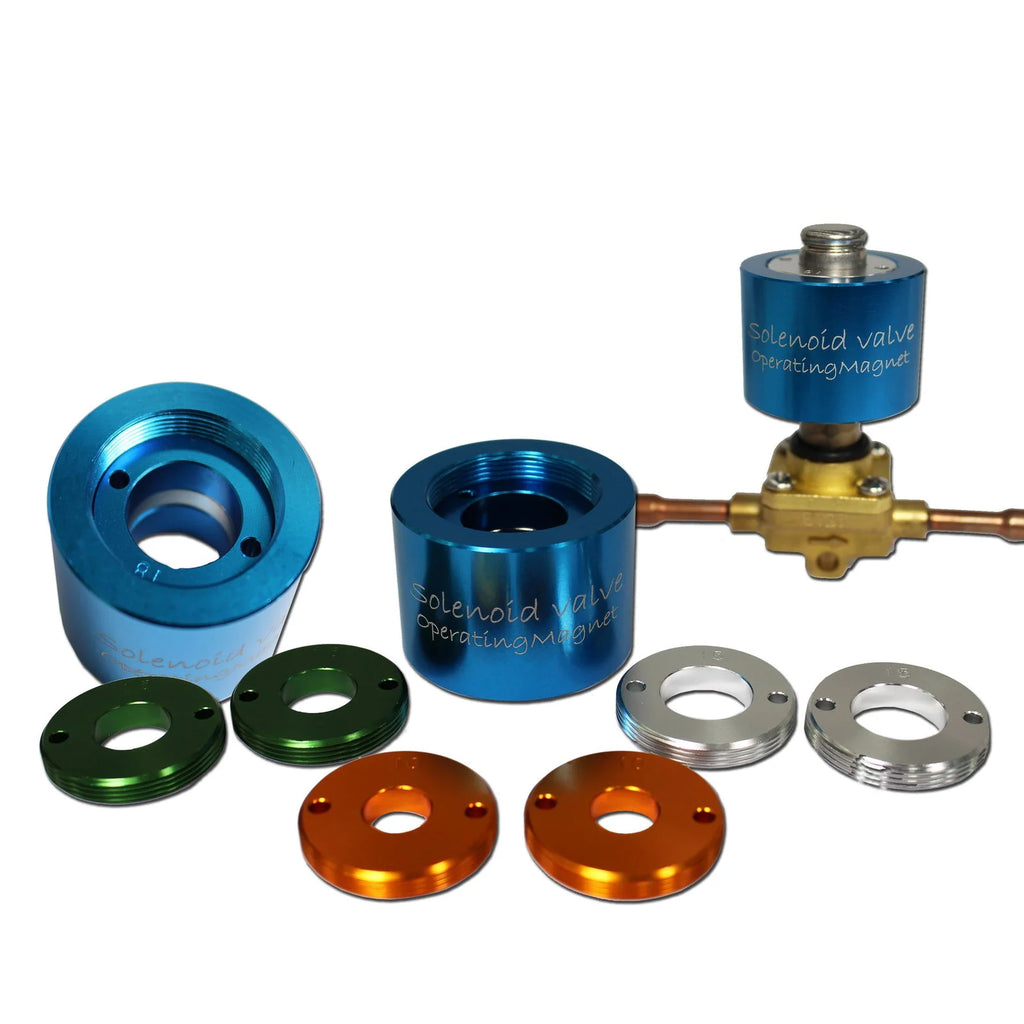

Javac Manual Solenoid Valve Operating Magnet Kit (ESVM1258)
Stop wasting time trying to wire up dodgy temporary power supplies just to open a valve. The Javac ESVM1258 Operating Magnet is the absolute quickest and easiest way to manually operate electrically driven solenoid valves on a dead system. Engineered from durable anodized aluminum and designed to fit virtually all makes and models, this pocket-sized tool is a mandatory addition to any professional refrigeration engineer's tool kit.
Key Features & Trade Benefits
- Instant Manual Operation: Converts electrically operated solenoid valves into hand-operated valves in seconds, requiring zero electrical current.
- Universal Compatibility: Supplied with 4 interchangeable sleeve sizes (10mm, 12.5mm, 15mm, and 18mm) to ensure a perfectly snug, safe fit on all major brands of solenoid valves.
- Heavy-Duty Construction: The main body and permanent/temporary magnets are housed in premium anodized aluminum for ultimate job site durability.
- Pocket-Sized Convenience: Extremely compact and lightweight. Keep it in your top pocket or tool pouch so it is always ready when you encounter a closed valve on a powered-down unit.
Tradie Pro Tip for Solenoid Magnets:When you are recovering refrigerant or pulling a vacuum on a large system with a liquid line solenoid, that valve fails shut as soon as you isolate the power. If you don't open it, you trap refrigerant or moisture behind it! Instead of making a "suicide cord" to energize the coil, simply pull the coil off, slide this Javac magnet over the enclosing tube, and it will instantly lift the internal plunger, giving you unrestricted flow through the entire circuit.
What’s Included
- 1 × Javac Anodized Aluminium Magnet Body
- 4 × Interchangeable Sleeves (10mm, 12.5mm, 15mm, 18mm)
Specifications
| Attribute | Details |
|---|---|
| Model | Javac ESVM1258 |
| Product Type | Manual Solenoid Operating Magnet |
| Included Sleeve Sizes | 10 mm, 12.5 mm, 15 mm, 18 mm |
| Material | Anodized Aluminium |
| Compatibility | Universal (Fits all makes of solenoid valves) |
Frequently Asked Questions (FAQ)
How exactly does this tool work?
A standard solenoid valve uses an electrical coil to create a magnetic field that lifts an internal metal plunger to open the valve. This Javac tool simply replaces the electrical coil with a powerful permanent magnet. When you slide it over the valve stem, its magnetic field pulls the plunger up, opening the valve mechanically without any electricity.
Will this fit my specific brand of valve?
Yes. Because the kit comes with four distinct sleeve sizes (10mm to 18mm), it is universally compatible with the enclosing tubes of all major solenoid brands, including Danfoss, Sporlan, Emerson, and Carel.
Can I leave the magnet on while the system is running?
No. This tool is designed for temporary manual operation during service procedures (like evacuation, recovery, or flushing). You must remove the magnet and reinstall the electrical coil before returning the system to normal operation, otherwise, the valve will remain permanently open and bypass the system's automatic controls.
