Description

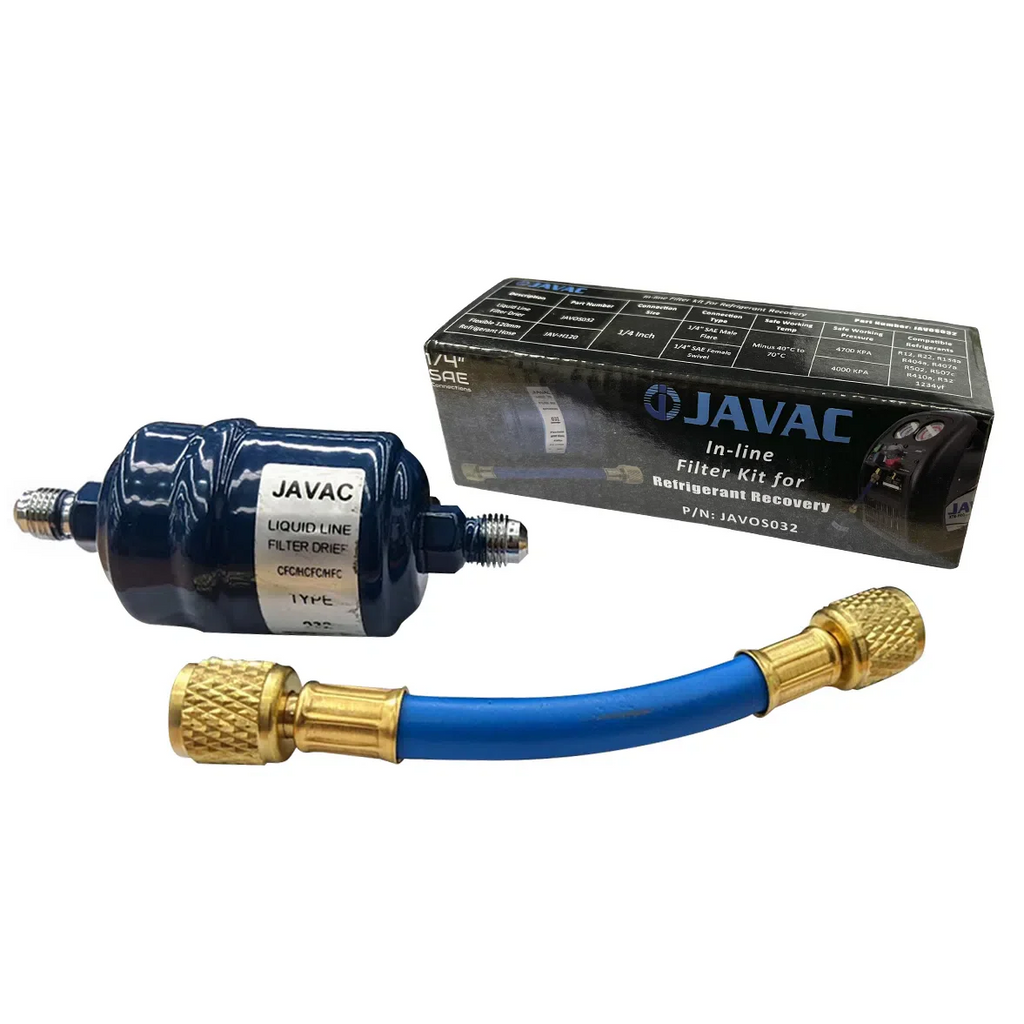

Javac JAVOS032 Filter Kit for Recovery Machines (1/4" SAE)
Protect your most expensive equipment from the hidden dangers inside a dirty refrigeration system. The Javac JAVOS032 Filter Kit is an essential peripheral that acts as a frontline defense for your recovery machine, trapping copper shavings, carbon, acid, and moisture before they can reach and damage the internal valves and compressor.
Key Features & Trade Benefits
- Extend Machine Life: Prevents catastrophic internal damage caused by system debris and contaminants entering the recovery unit during the draw-down process.
- Universal Jumper Hose: Includes a specialized high-pressure jumper hose with a 1/4" Female swivel, allowing you to easily connect standard 1/4" male flare filters to any recovery machine.
- Flexible Setup: The jumper hose provides extra room between the filter and the machine inlet, reducing strain on the fittings and making it easier to maneuver in tight spaces.
- High-Pressure Rated: Built to handle the demands of modern refrigerants, with the filter rated to 4,700 kPa and the hose rated to 4,000 kPa.
- Broad Compatibility: Suitable for use with any refrigerant compatible with your recovery machine (including R32, R410a, and R134a).
Tradie Pro Tip:For maximum protection—especially when recovering from a burnout—attach one kit to the inlet to protect the machine, and a second kit to the discharge side. This ensures that any residual acid or moisture from the machine itself doesn't contaminate your recovery cylinder or the next system you work on.
What’s Included
- 1 × Javac 1/4" Male SAE Refrigerant Filter
- 1 × Premium Jumper Hose (1/4" Female Swivel SAE to 1/4" Male SAE)
Specifications
| Attribute | Details |
|---|---|
| Part Number | JAVOS032 |
| Connection Size | 1/4" SAE |
| Connection Type | Filter: 1/4" M SAE | Hose: 1/4" F Swivel SAE |
| Safe Working Pressure | Filter: 4,700 kPa | Hose: 4,000 kPa |
| Compatibility | All CFC, HCFC, HFC, and HFO Refrigerants |
Frequently Asked Questions (FAQ)
How often should I change the filter in this kit?
As a rule of thumb, you should change the filter after every major recovery job, especially if the system had a compressor burnout. If you notice a drop in recovery speed (increased pressure drop across the filter), it's a sign the filter is clogged and needs immediate replacement.
Can I use other brands of filters with this jumper hose?
Yes. The jumper hose is designed with a standard 1/4" Male SAE flare. This means you can use almost any standard 1/4" male flare filter drier (like a Sporlan or Danfoss) once the initial filter supplied with the kit has been used.
Is this kit necessary if my recovery machine already has a screen?
Most recovery machines have a small internal mesh screen, but these only catch very large debris. They do nothing to stop acid, moisture, or fine carbon dust. Using an external filter kit like the JAVOS032 provides much deeper filtration, keeping your machine's internal compressor and valves in like-new condition for much longer.
