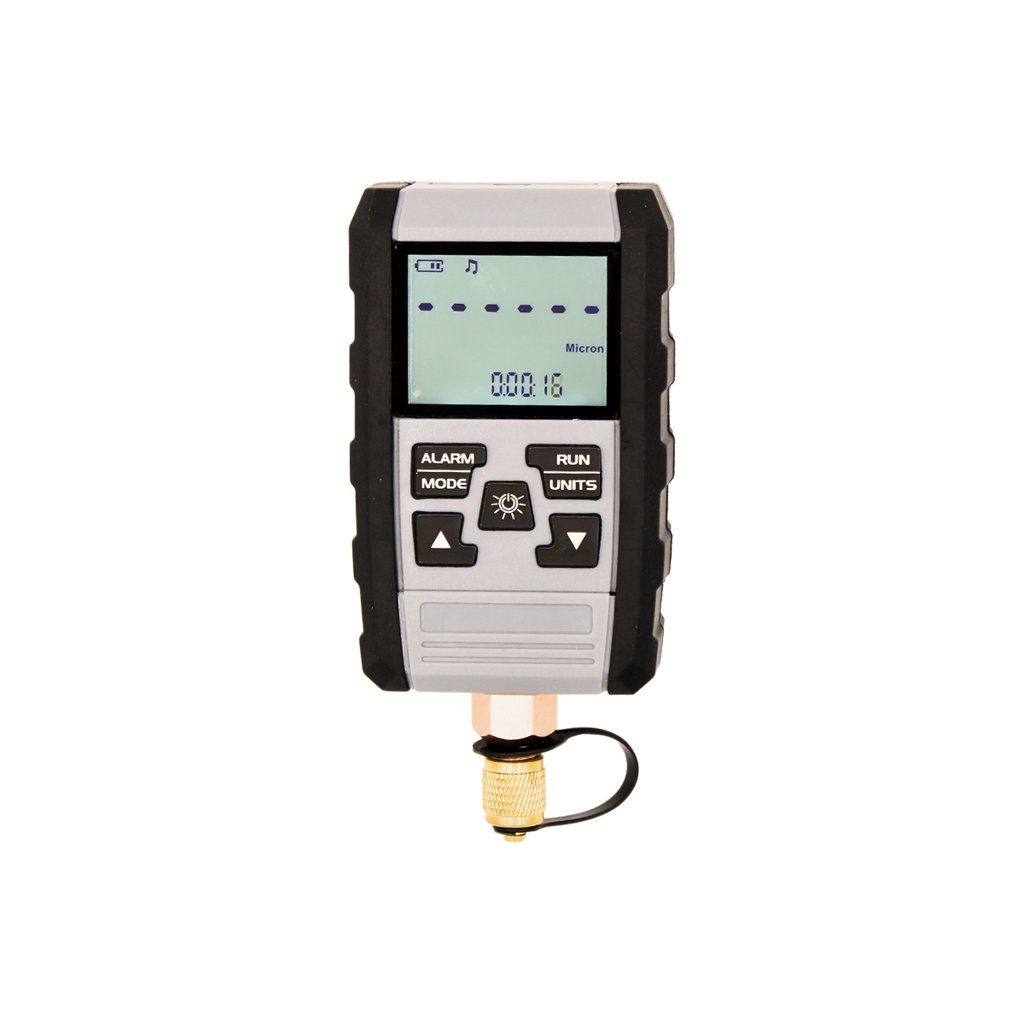

Javac Digital Vacuum Gauge 1/4" M SAE G1

The Javac G1 Digital Vacuum Gauge is a professional-grade Pirani sensor tool designed for precise system dehydration verification in HVAC/R and industrial applications. Featuring an IP65 water-resistant rating and a massive 0–30,000 micron range, it provides the pinpoint accuracy required to ensure zero moisture remains in a system before refrigerant charging.

Javac Digital Vacuum Gauge 1/4" M SAE G1 Overview

Pull a deep, reliable vacuum with absolute confidence. The Javac G1 is built to survive the harsh, demanding environments of field refrigeration and air conditioning. Encased in a rugged shell, it delivers the sensitivity of a Pirani sensor with the durability needed for jobsite rooftops and plant rooms.

Key Features & Trade Benefits

• High-Precision Pirani Sensor: Accurately reads deep vacuum levels across a 0–30,000 micron range to verify total system evacuation.
• Jobsite Tough (IP65): Dust-tight and water-resistant construction protects the internal electronics from rain and debris.
• Smart Alerts & Power Saving: Built-in high/low pressure alarms allow for multi-tasking, while the 10-minute auto-off function preserves battery life.
• Clear, Backlit LCD: Ensures high visibility in dark ceiling cavities or direct sunlight.
• Multi-Unit Display: Toggle easily between Torr (mmHg), mbar, Pa, and Microns to match your specific workflow.

Critical Operating Instructions

Tradie Pro Tip: Never subject a micron gauge to high positive pressure. The Javac G1 has a maximum overpressure limit of 14 PSI (0.1 MPa). Always isolate the gauge using an inline ball valve before releasing nitrogen for a pressure test or opening system valves to release refrigerant. Excessive pressure will permanently ruin the Pirani sensor calibration.

Technical Specifications

Attribute	Details
Measuring Range	0 - 30,000 Microns
Accuracy	+/- 10%
Resolution / Ranges	0-10,000 Pa, 0-100.00 mBar, 0-30.000 Torr
Max Overpressure	14 PSI (0.1 MPa)
Fitting Connection	1/4" Male SAE
Sensor Type	Pirani
Operating Temperature	0°C to 50°C
Power Supply	3 × AA Batteries (Approx. 200 hours)
Dimensions	127 x 74 x 37 mm

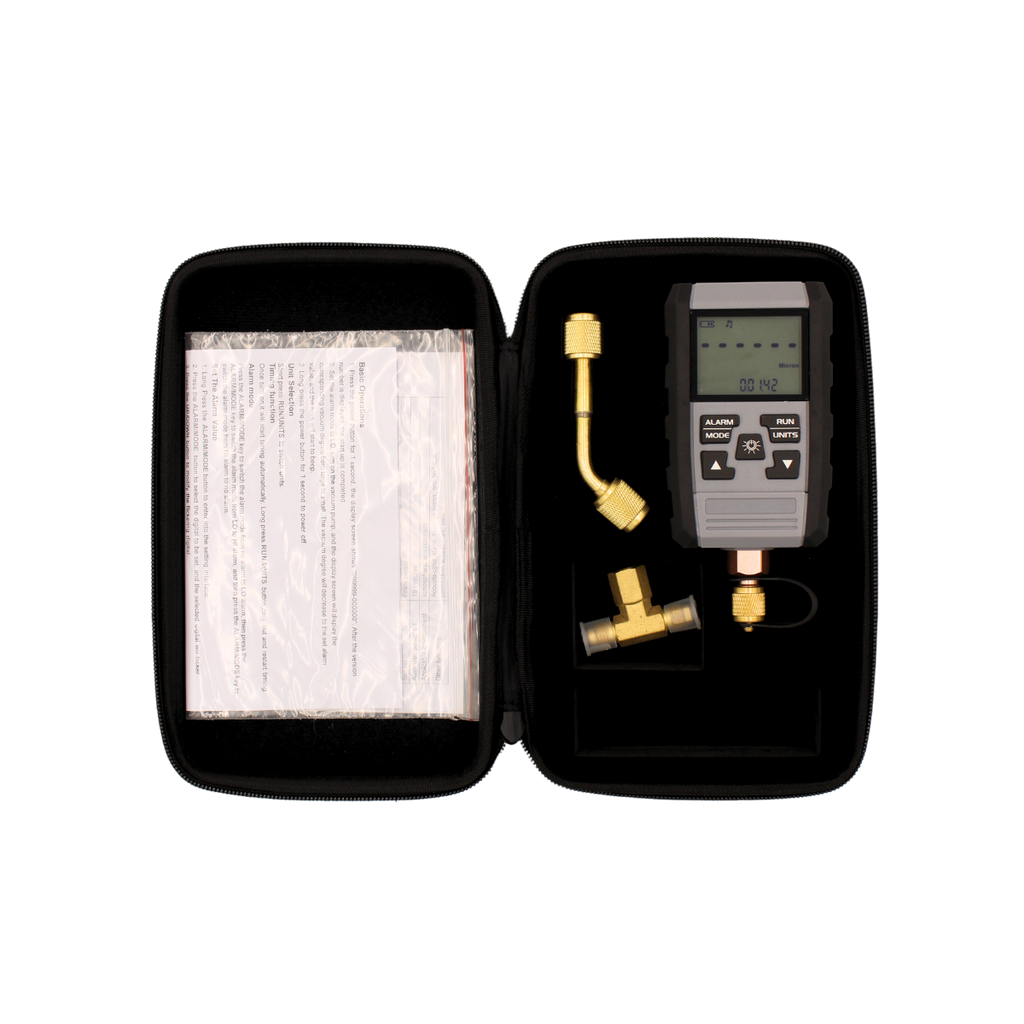

What’s Included

• 1 × Javac G1 Digital Vacuum Gauge
• 1 × Protective Carry Bag
• Note: Operates on 3 × AA batteries (not included).

Frequently Asked Questions

Why is a standalone micron gauge necessary?

While many digital manifolds include vacuum sensors, they are often not sensitive enough to measure the deep vacuum levels (below 1000 microns) required to ensure all moisture has boiled off. A dedicated Pirani sensor gauge like the G1 is essential for precision dehydration.

How do the vacuum alarms assist on-site?

The gauge allows you to set target parameters. A low alarm sounds when you reach your target vacuum, and a high alarm sounds if the system loses vacuum during a decay test, allowing you to monitor the process while performing other tasks.

What does the IP65 rating protect against?

IP65 indicates the unit is dust-tight and protected against water jets. This makes it suitable for use in rainy conditions or dusty environments typically found in commercial HVAC installations.
