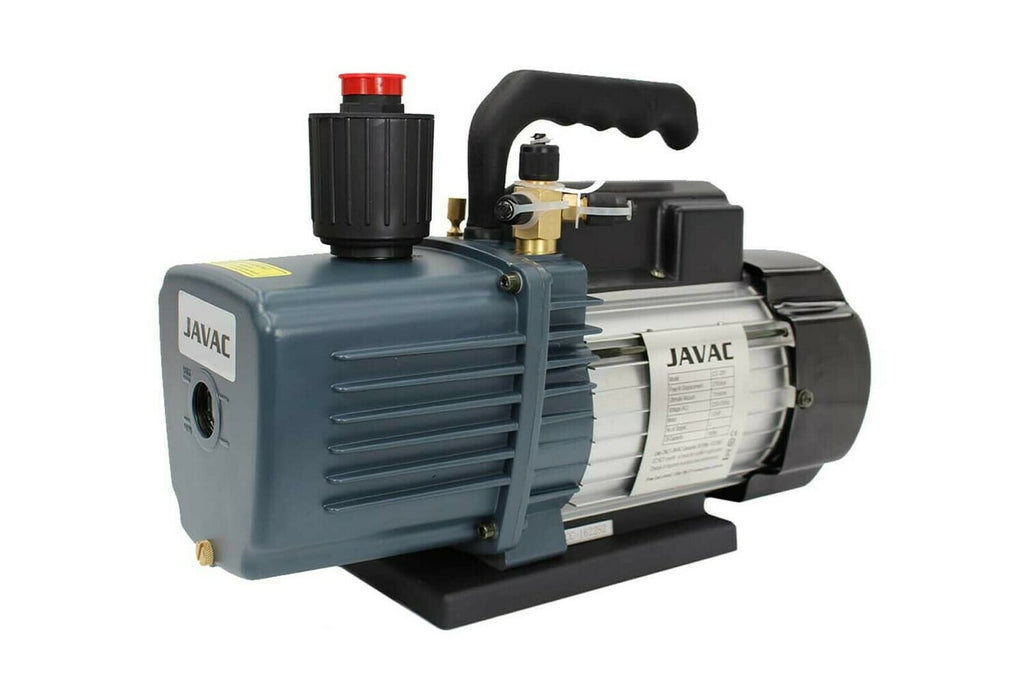

Javac CAL 231 230 L/min R32 Rated Vacuum Pump
The Javac CAL 231 is a high-displacement workhorse designed for technicians who need serious speed and reliability. As an upgraded evolution of the legendary CC231, this dual-stage pump is fully R32 and 1234yf compliant. Delivering a massive 230 litres per minute flow rate, it is the ideal solution for large-scale commercial refrigeration, industrial systems, and high-volume residential installs.
Key Features & Trade Benefits
- High-Flow Displacement: At 230 L/min (approx. 8 CFM), this pump shifts large volumes of air quickly, significantly cutting down evacuation times on big commercial rigs.
- R32 & 1234yf Ready: Fully compliant with modern A2L refrigerants. It is also backward compatible with all standard CFC, HFC, HCFC, and HFO refrigerants.
- 15 Micron Ultimate Vacuum: The two-stage oil rotary vane design ensures a deep, professional-grade vacuum, essential for complete moisture removal and system longevity.
- Integrated Gas Ballast Valve: Allows you to vent condensable vapours (moisture) before they contaminate the pump oil, extending the life of your oil and maintaining high performance during "wet" pull-downs.
- Tri-Connector Intake: No need for adapters. The intake is fitted with 1/4", 3/8", and 5/16" (R410A/R32) SAE connections.
- Anti-Oil Demister: Designed to prevent oil spillage and minimize exhaust mist, keeping your workspace clean.
Tradie Pro Tip:When dealing with large commercial systems or high-humidity days, open the Gas Ballast Valve for the first part of the evacuation. This helps the pump "exhale" moisture without it mixing into your oil. Close it once you hit the lower micron range to reach your ultimate deep vacuum.
Ideal Applications
- Large Commercial Refrigeration (Bottle shops, Restaurants, Supermarkets)
- Industrial Air Conditioning & Process Cooling
- Multi-Head Residential Split Systems
- Automotive A/C Servicing (R134a & 1234yf)
What’s Included
- 1 × Javac CAL 231 230 L/min Vacuum Pump
- 1 × 500ml Initial Charge of Shark Vacuum Pump Oil
- 12-Month Manufacturer's Warranty
Specifications
| Feature | Details |
|---|---|
| Free Air Displacement | 230 Litres per minute |
| Ultimate Vacuum | 15 Microns |
| Motor Power / Speed | 2/3 HP / 2880 RPM |
| Stages | Two-Stage Rotary Vane |
| Oil Capacity | 500 ml |
| Intake Fittings | 1/4" SAE, 5/16" SAE, 3/8" SAE |
| Weight / Dimensions | 15 kg / 380 x 160 x 285 mm |
Frequently Asked Questions (FAQ)
How is the CAL 231 different from the older CC231?
The CAL 231 is the modern, upgraded version of the CC231. The key difference is the R32 and 1234yf safety rating. While the older series was built for traditional HFCs, the CAL 231 features ignition-proof components and seals that make it safe for the mildly flammable A2L refrigerants used in current and future systems.
Is this pump too big for residential split systems?
There is no such thing as "too much vacuum," but 230 L/min is definitely more power than a small bedroom split needs. However, if you do a mix of residential and light commercial work, the CAL 231 is a great "one-pump-does-all" solution. It will pull down a standard split system incredibly fast.
What oil should I use for refills?
We provide a free bottle of Javac Shark Pump Oil with the unit. For future refills, we recommend staying with high-quality mineral-based vacuum pump oils like Shark or Element #15 to ensure you maintain that 15-micron ultimate vacuum rating.
