Description

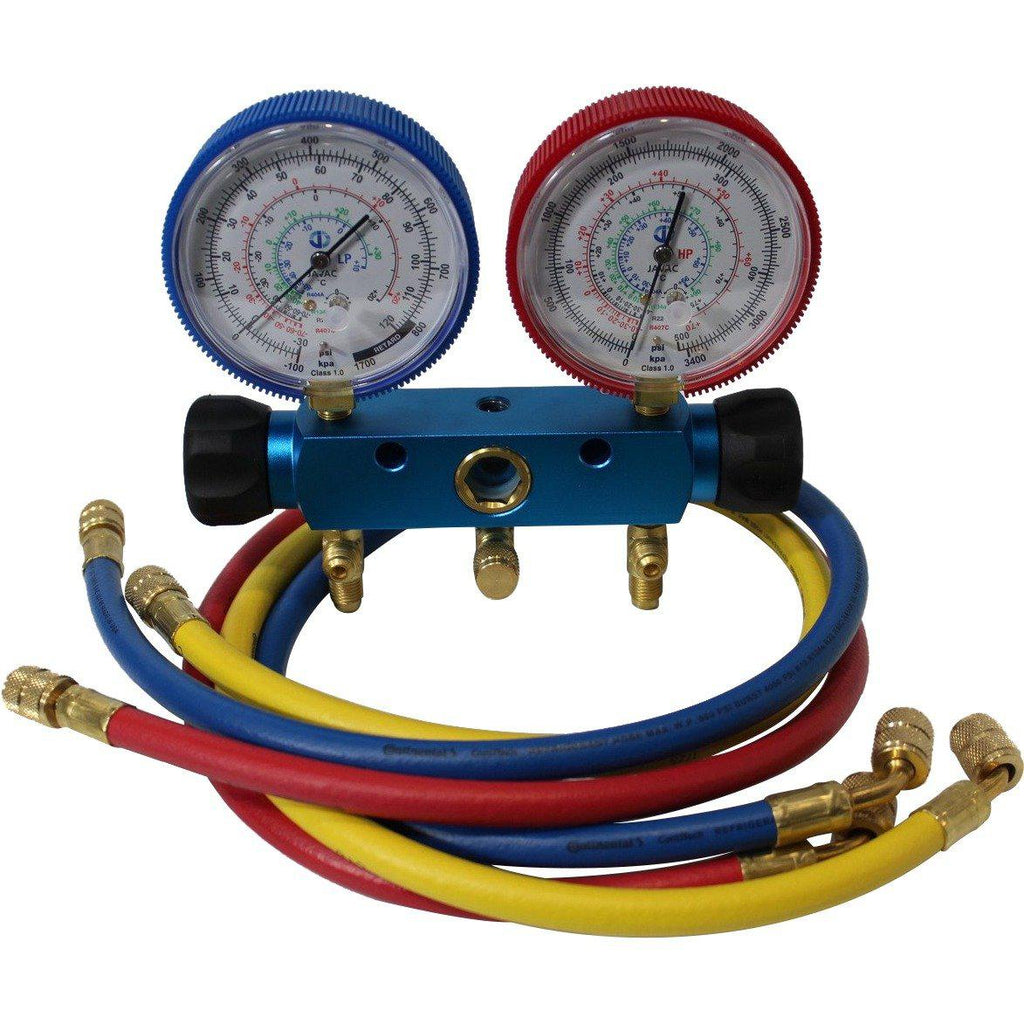

2-Way JAVAC R134a Multi-Refrigerant / Automotive Manifold Set
This premium quality 2-Way JAVAC R134a Manifold Set is purpose-built for professionals who need to accurately vacuum, charge, diagnose, or evacuate refrigerant in automotive and commercial air conditioning systems. Engineered specifically for R134a, this robust set comes complete with a high-pressure 36-inch hose set and features large, highly accurate 80mm gauges for easy, flutter-free reading on the job.
Key Features & Trade Benefits
- Professional-Grade Build: Features a high-quality extruded, anodized aluminium body equipped with a Teflon diaphragm-valve mechanism for excellent sealing and large, unrestricted flow.
- Precision Diagnostics: The large 80mm gauges feature zero-pointed calibration, internal silicon dampeners for pulse-free pointer movement, and soft cushion protective covers to survive drops and workshop abuse.
- Visual Confirmation: An extra-large sight glass allows for quick, clear visual checks of refrigerant flow and condition.
- Premium Goodyear Hoses: Includes GY5 hose sets that meet strict UL1963 and SAE J196 standards, ensuring safety and durability under high pressures.
- Ergonomic Operation: Designed with a heavy-duty swivel hanging hook and soft, colour-coded knobs for comfortable, secure operation even with greasy hands.
Tradie Pro Tip for Automotive Use:While this manifold is fully equipped for R134a systems, direct connection to standard vehicle A/C ports requires specific snap-on adapters. To use this set on cars, make sure you grab the Javac R134a High & Low Side Automotive Coupler Set (Part # 3F1053), which is sold separately.

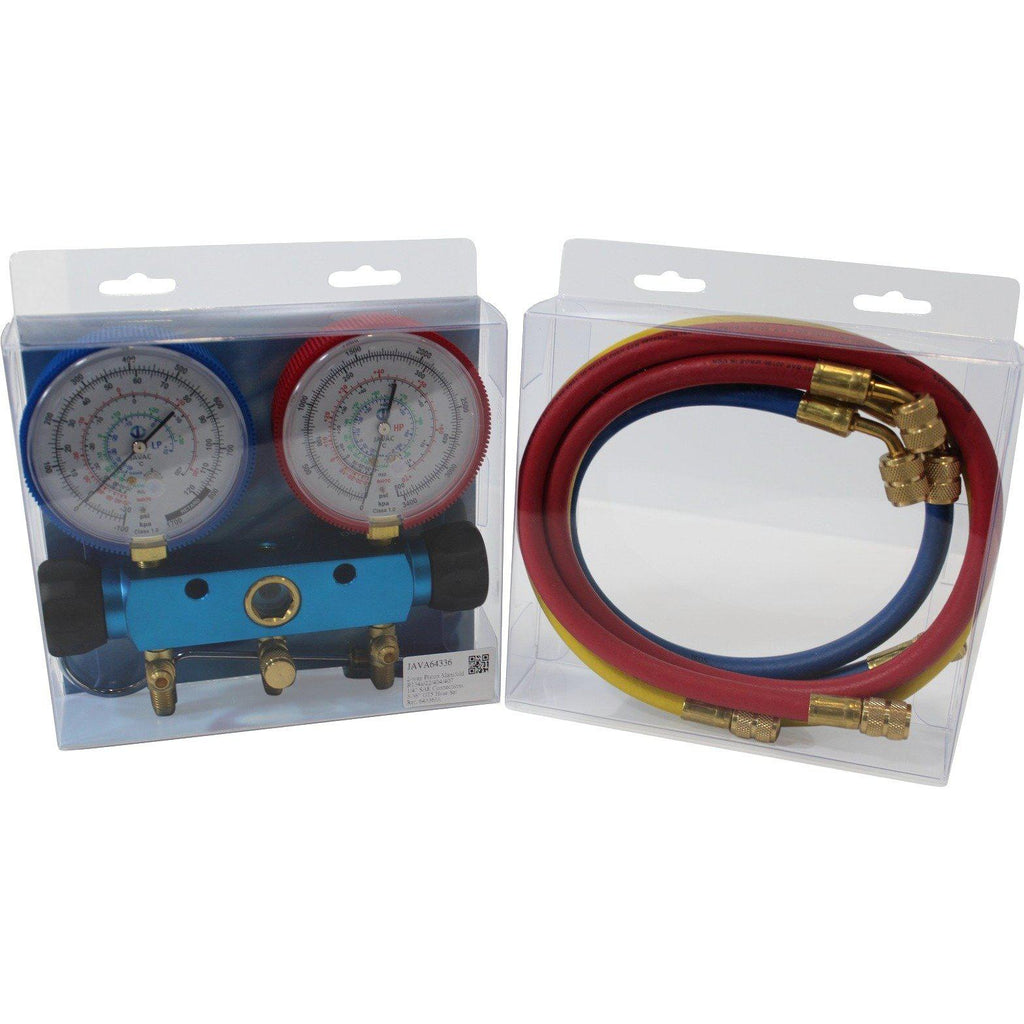

What’s Included
- 1 × 2-Valve Multi-Refrigerant R134a Manifold
- 1 × 90cm (36 inch) Premium JAVAC Hose Set (Red, Blue, Yellow)
Specifications
| Attribute | Details |
|---|---|
| Body Type | 2-valve anodized aluminium body with ¼” SAE fittings |
| Valve Type | Piston (2) |
| Gauge Type | 80mm Class 1.0 accuracy gauges with internal silicon dampeners |
| Refrigerant Scales | R134a |
| Pressure Scales | PSI / KPA |
| Temperature Scales | °C |
| Hoses | Premium 36″ JAVAC hose set with ¼” SAE fittings (R134a), 800 psi (55bar) working pressure, 4000psi (276bar) burst pressure |
| Package Dimensions | 18 x 18 x 12 cm |
| Package Weight | 2 kg |
| Manufacturer's Warranty | 1 Year |
Frequently Asked Questions (FAQ)
Are the hoses suitable for high-pressure systems?
Yes. The included premium Goodyear GY5 36-inch hoses are extremely heavy-duty. They meet UL1963 & SAE J196 standards and are rated for an 800 psi (55 bar) working pressure and a massive 4000 psi (276 bar) burst pressure, giving you a huge margin of safety while working.
Why do the gauges have internal silicon dampeners?
Compressors create internal pressure pulsations that can cause standard gauge needles to vibrate wildly, making it impossible to get an accurate reading. The internal silicon dampeners in these Class 1.0 accuracy gauges absorb those pulsations, giving you a smooth, "flutter-free" pointer for highly precise diagnostics.
Is this ready to hook up to a car out of the box?
The set includes everything you need for the manifold side (manifold, gauges, and 1/4" SAE hoses). However, because automotive R134a ports require specific quick-connect fittings, you will need to purchase standard High & Low Side Automotive Couplers (like the Javac 3F1053) to snap onto the vehicle's service ports.
