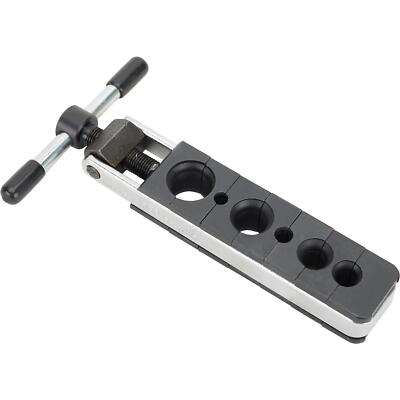

Imperial S7924901 Replacement Die Bar Assembly for 37° Flaring Tools

The Imperial S7924901 Replacement Die Bar Assembly is an essential component designed to restore the precision and performance of your 37° flaring tools, particularly the Imperial 400-F. This high-quality assembly ensures that your flaring operations continue to meet stringent government specifications for 37° flares, critical for reliable connections in various applications.

Engineered for durability and accuracy, this die bar assembly is capable of forming precise 37° flares in a range of challenging materials, including steel, stainless steel (adhering to MIL-T-6845 standards), titanium, and other robust metal tubing. Its advanced design features a positive stop gauge for consistent sizing and a unique three-roller flaring cone that delivers a superior, burnished flare face, all while minimizing user effort and preserving the original wall thickness of the tubing.

Why It Matters

In HVAC and other demanding industries, the integrity of a flare connection is paramount for preventing leaks and ensuring system efficiency and safety. A worn or damaged die bar can compromise flare quality, leading to costly call-backs and potential system failures. Replacing your die bar assembly with the Imperial S7924901 ensures every flare is perfectly formed, providing airtight, stress-free connections that stand the test of time, thereby maintaining the longevity and reliability of your installations.

What's Included

• ✓ 1 x Imperial S7924901 Replacement Die Bar Assembly for 37° Flaring Tools
• ✓ Limited Lifetime Warranty

Features & Benefits

• Precision 37° Flares: Forms flares to exact government specifications, ensuring compliance and superior sealing for critical applications.
• Versatile Material Compatibility: Expertly flares steel, stainless steel (MIL-T-6845), titanium, and other metal tubing, offering broad utility.
• Positive Stop Gauge: Guarantees consistent and correct flare size every time, eliminating guesswork and reducing errors.
• Three-Roller Flaring Cone: Creates a highly polished flare face through a special burnishing action, enhancing seal quality.
• Reduced Effort & Material Integrity: Roller action minimizes the force required for flaring and maintains the original wall thickness of the tubing, preventing stress concentration and weakening.

Specifications

Applications

• HVAC and Refrigeration Line Connections
• Automotive Fluid and Brake Line Fabrication
• High-Pressure Industrial Gas and Liquid Systems
• Specialized Aerospace Applications (conforming to MIL-T-6845)
• General Plumbing and Piping Installations requiring precise 37° flares

Tradie Pro Tip

Regularly inspect your flaring tool's die bar assembly for wear, nicks, or damage. Even minor imperfections can lead to faulty flares. Replacing a worn die bar proactively with a genuine Imperial part like the S7924901 ensures consistent, leak-free connections and extends the life of your valuable flaring tool. Always deburr tube ends thoroughly before flaring for the best results.

Pair With

• Imperial 400-F 37° Flaring Tool
• Professional Tube Cutters
• Quality Deburring Tools
• High-Grade Copper Tubing and Fittings

Keep Your Space Clean

Ensure the longevity and precision of your flaring equipment. Invest in the Imperial S7924901 Replacement Die Bar Assembly today and maintain peak performance for all your 37° flaring needs. Shop now at HVAC Shop for genuine Imperial tools and accessories!
