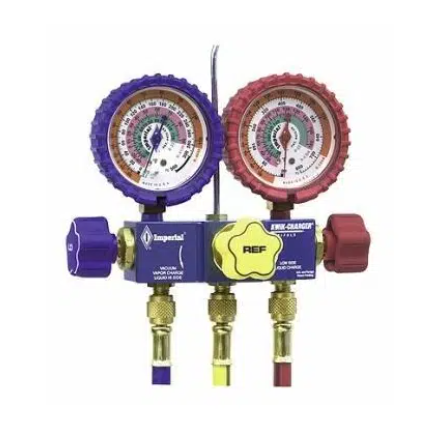

Imperial 762-CKPC 3 Valve R22 KwikCharge Manifold

Charging the system is faster and easier than ever using Imperial® manifolds with a built-in liquid low side charger.

FEATURES:

• Dual Action Valve – Operates as a conventional manifold, or engage the special control valve and the manifold accepts liquid refrigerant from the cylinder and discharges into the low side of the system. Charging rate is up to eight times faster than vapour charging.
• Safe – Internal metering element reduces liquid flow to a level below the capacity of the compressor.
• All-In-One – No connecting or disconnecting special adapters for charging new blended refrigerants.
• No Pressure Drop-In Cylinder – No need to heat refrigerant cylinder.
• Works With Refrigerants – R22, R404A, R507
• Filters In All Manifold Port Fittings – To keep out particulate material during recovery or reclaim.
• Deep Vacuum Valve Design – Proven diaphragm-type, soft-seat valves require only fingertip pressure to close completely.
• Precision Gauges & Protective Boots – Superior resistance to shock, vibration & pulsation.
• PolarShield® Hi-Performance Hoses – 800 PSI working pressure, 4,000 PSI burst pressure.
• Ergonomic Handles – Durable, soft-touch non-slip surface, even with oily fingers.
• Swivel Hanger.

INCLUDES:

3 x 60″ Hoses, Hose Hanger, and Limited Lifetime Warranty.

SPECIFICATIONS:

• Brand: Imperial
• Refrigerant: R22, R404A, R507
• Gauges: PSI, KPa, C°
• Burst Pressure: 4000 PSI
• Country of origin: USA.

---
