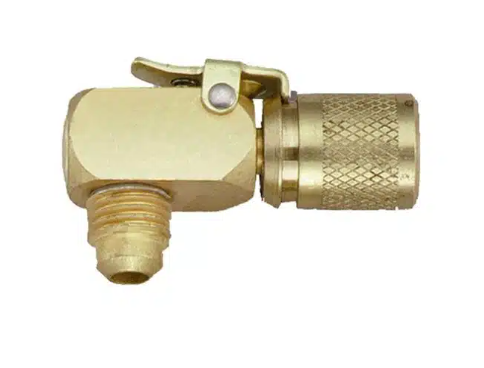

Imperial 27C 90° Elbow KWIK-Coupler 5/16″

The kwik-coupler set is intended for use with refrigeration and air-conditioning service hoses when connecting to core valve access fittings. Conventional threaded connecting becomes converted to a push-pull operation which is faster, more comfortable and positive sealing at all times. Valve cores are depressed automatically without adjustments or loss of refrigerant. Disconnecting is also accomplished without loss of coolant.

An automatic shut-off valve retains refrigerant pressure in a disconnected hose. This feature permits transferring high side hose refrigerant through the service manifold into the low side, thereby eliminating waste and hazardous high-pressure discharge and atmospheric damage.

FEATURES:

• Designed for R410a & R32 systems
• Automatic full depression of core valves without adjustment, regardless of core position.
• Easy push/pull operation automatically opens or closes system without loss of refrigerant.
• Automatic shut-off of hose ends permits discharging high side hose through the manifold into low side.
• Eliminates hazardous discharge of refrigerant and oil from the system when disconnecting the hose.
• Simplifies operation of charging a critical amount of refrigerant into small systems.
• Prevents finger burn when disconnecting – especially servicing heat pumps in cold weather.
• Core depressors in the hose end no longer necessary – speeds servicing of systems with hand valves.

INCLUDES:
1 x IMP-27C 90° 5/16 Elbow KWIK-Coupler and 12-Month Warranty.

SPECIFICATIONS:

• Size: 5/16″
• Warranty: 12-Month Warranty.

---
