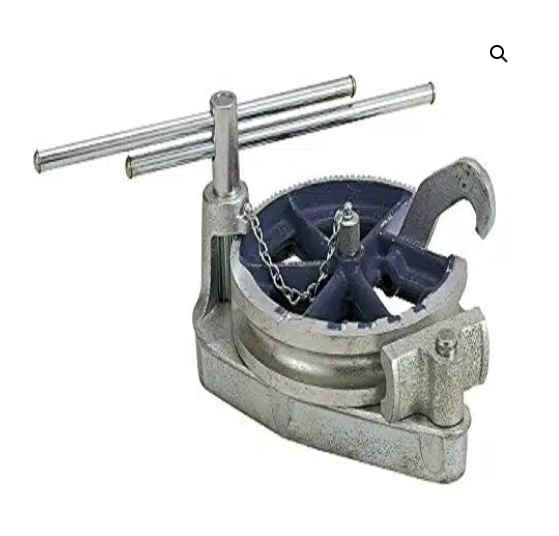

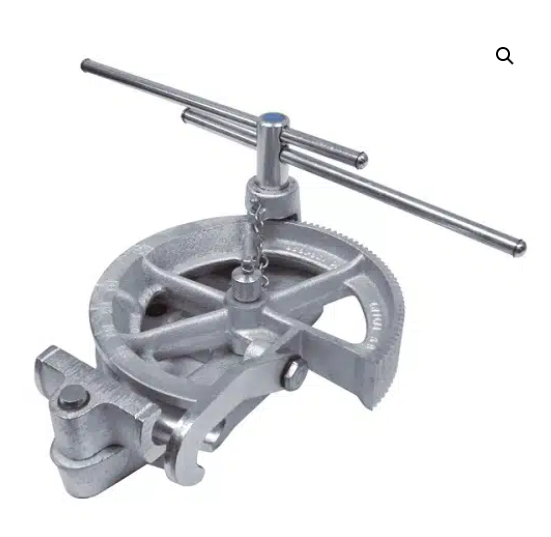

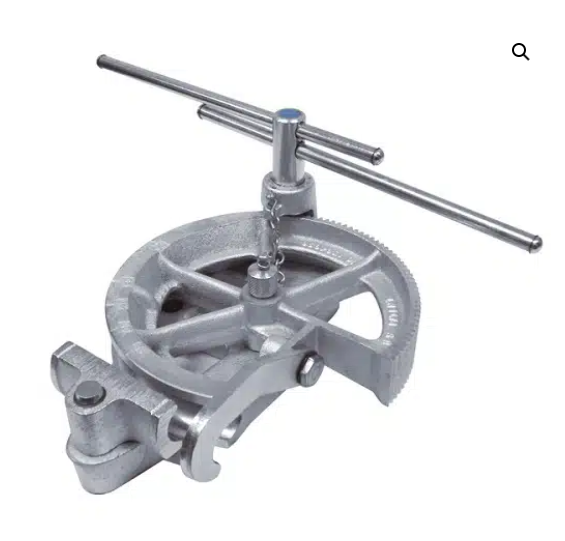

Imperial® 270-F Gear Type Bender Range
$614.95
$768.95

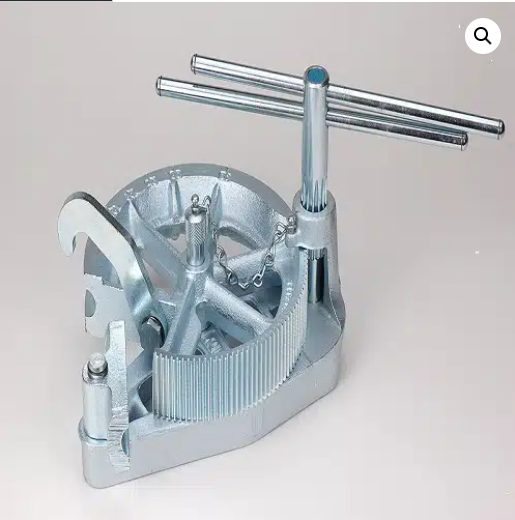

For all bending work. Spur-gear type with 10-to-1 ratio for easy bending of tempered tubing.

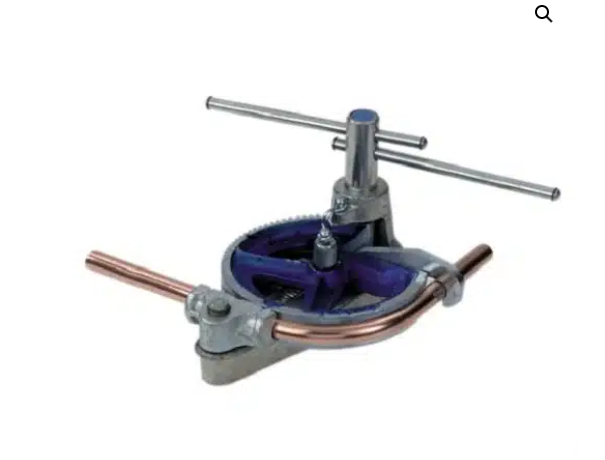

Floating shoe aligns the tube perfectly on a calibrated forming wheel. Pull-pin on wheel speeds repositioning for bends over 90°.

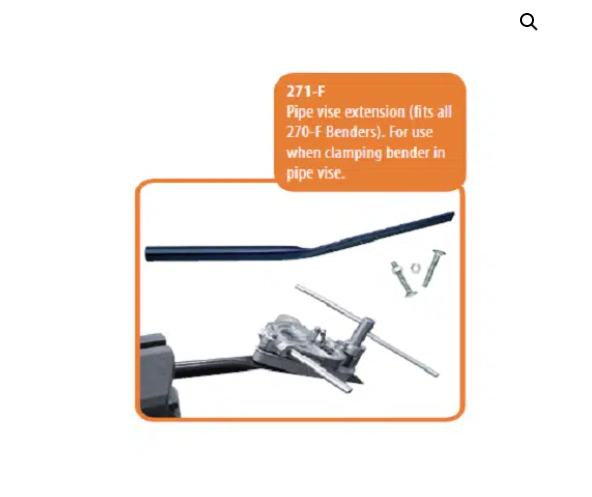

A Portable Bender which can be handheld, clamped in a vise, or bolted to bench. Adapts to pipe vise with handle 271-F.
* Not recommended for Type L Hard and Type M copper tubing with a wall thickness over .065”.
FEATURES:
- Easy to use for all bending work
- Perfect bend every time
- Heavy duty
- Vise mounted or handheld.
OPTIONS:
IMP-270F12 – 3/4″ OD Tube
IMP-270F14 – 7/8″ OD Tube
IMP-270F16 – 1″ OD Tube
IMP-270F18 – 1, 1/8″ OD Tube
SPECIFICATIONS:
| PART NO. |
TUBE O.D.
(in.) |
RADIUS
TO CENTER OF TUBE (in.) |
MIN. RETURN
FROM CENTER TO CENTER OF TUBE (in.) |
WEIGHT EACH
(lbs.) |
WALL THICKNESS
(in.) |
| IMP-270F12 | 3/4 | 4 | 9-1/2 | 15 | .042 to .083 |
| IMP-270F14 | 7/8 | 4 | 9-1/2 | 14.75 | .042 to .083 |
| IMP-270F16 | 1 | 4 | 9-1/2 | 14.75 | .065 to .095* |
| IMP-270F18 | 1-1/8 | 4 | 9-1/2 | 14.75 | .065 to .095* |
* Not recommended for Type L Hard and Type M copper tubing with a wall thickness over .065”.
