Description
The Fieldpiece HR3XB Hose Extension Set bridges the gap between rigid manifold workflows and fast, tidy service work. It makes set-ups clean and safe with ball-valve control right where you need it.
The compact 8″ (200 mm) extensions and 1/4″ female × 1/4″ male ends help reduce venting, route hoses neatly, and speed up charging, recovery, and evacuation.
- ✅ A2L compatible for modern refrigerants
- ✅ Rugged full-ring triple crimp for long life

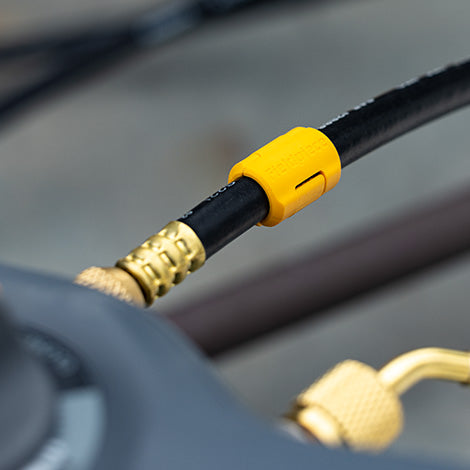

- ✅ Colour tags included for quick line ID
Advantages of hose-extension flow control
Best when you want simple benefits that save time on site.

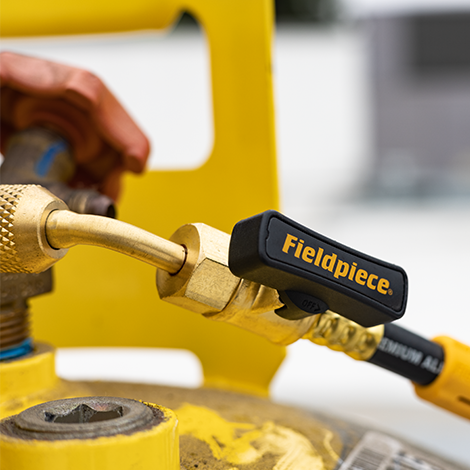

- Intuitive, efficient and convenient — ball valves at the hose let you control flow instantly.
- Short extensions improve routing in tight plant rooms and roof spaces for cleaner set-ups.
- Reduce disconnect spray and handling errors to save time and lower rework.
- Permeation barrier (meets SAE J2196) plus A2L readiness supports modern refrigerants.
Features
Best when you need key specs and build highlights.
- ✅ Working pressure: 800 psi
- ✅ Burst pressure: 4000 psi
- ✅ A2L compatible
- ✅ Permeation barrier (meets SAE J2196)
- ✅ For charging, recovery and evacuation
- ✅ Fitting size: 1/4″ female × 1/4″ male
- ✅ Hose length: 8″ (200 mm)
- ✅ Rugged full-ring triple crimp for durability
- ✅ Four-layer hose construction; neoprene gaskets for lasting seals
- ✅ Customisable hose colour tags included
Includes
Best when you want to know exactly what arrives.

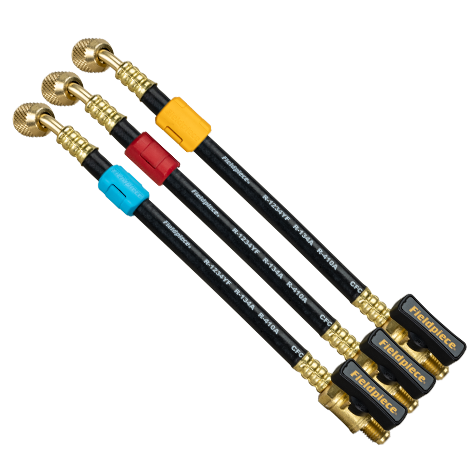

- ✅ 3 × 1/4″ ball-valve hose extensions (HR3XB)

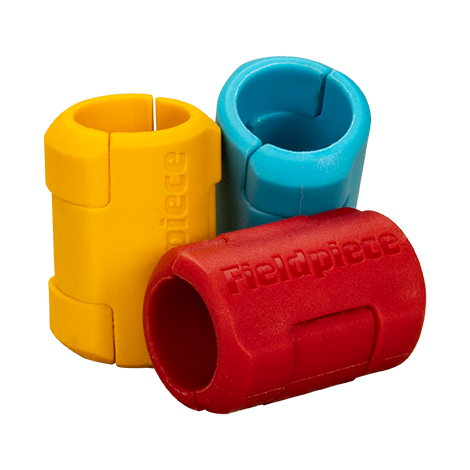

- ✅ 3 × colour tags (red, blue, yellow)
- ✅ 12-month warranty
Lead time
Best when planning installs or service runs. Typically ships fast; contact us for current stock and dispatch times.
Specifications
Best when you need full technical details to match your gear.
- ✅ Model: HR3XB
- ✅ Application: Charging, recovery, evacuation
- ✅ Compatibility: A2L-ready; permeation barrier (SAE J2196)
- ✅ Pressure ratings: 800 psi working / 4000 psi burst
- ✅ Fittings: 1/4″ female × 1/4″ male
- ✅ Length: 200 mm (8″) per extension
- ✅ Construction: Four-layer hose; rugged full-ring triple crimp
- ✅ Seals: Neoprene gaskets
- ✅ Identification: Customisable colour tags (R/B/Y)
