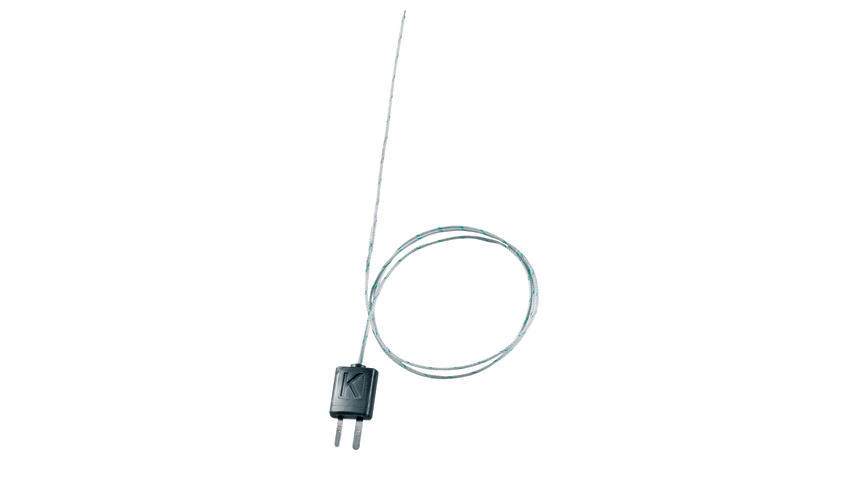

Flexible Thermoelectric Couple 0602 0644

Overview

Engineered for maximum adaptability, the Flexible Thermoelectric Couple (TC Type K, product 0602 0644) utilizes an exposed sensor junction to deliver incredibly fast temperature readings. This low-mass solution is perfect for precise temperature measurements in ambient air, various environmental testing scenarios, or when requiring direct attachment to complex, irregular surfaces.

The highly pliable 800 mm cable is sheathed in durable glass fibre, providing exceptional thermal resistance and unparalleled flexibility. Unlike rigid probes, this thermocouple can be effortlessly routed through tight enclosures, wrapped securely around pipes, or taped directly onto flat surfaces, enabling highly targeted and accurate thermal monitoring.

Why Precision and Flexibility Matter

In HVAC, electrical, and industrial applications, rapid and adaptable temperature measurement is crucial for diagnosing issues, ensuring optimal performance, and maintaining safety. This flexible thermocouple addresses these needs by combining a quick 5-second reaction time with a design that conforms to virtually any measurement point, ensuring you get accurate data without cumbersome setup or compromising on probe contact.

What's Included

• ✓ 1 x Flexible Thermoelectric Couple (TC Type K), Product no. 0602 0644
• ✓ Integrated 800 mm glass fibre cable
• ✓ Standard Thermocouple plug connection

Features & Benefits

• Highly Pliable Design: Glass fibre cable allows for complex routing and access to tight, confined spaces.
• Rapid Response: Exposed measuring junction ensures a blazing-fast 5-second reaction time for immediate readings.
• Wide Temperature Range: Capable of measuring from -50 to +400 °C, suitable for diverse applications.
• Lightweight and Versatile: Ideal for non-invasive air measurements and direct surface temperature monitoring without adding significant mass.
• Durable Construction: Glass fibre sheathing provides excellent thermal resistance and protects the sensor in demanding environments.

Common Applications

• Environmental chamber monitoring
• HVAC duct temperature profiling
• Surface temperature measurement of pipes, motors, or components
• Quick spot checks in refrigeration units
• General laboratory and industrial temperature assessments
• Attaching to circuit boards or heat sinks for electronic thermal analysis

Tradie Pro Tip

Tradie Pro Tip: Need to measure surface temps on the fly? Use a piece of high-temperature Kapton tape or aluminum foil tape to secure the exposed thermocouple tip directly to your target surface. This ensures maximum contact and guarantees you hit that rapid 5-second reaction time!

Pair With These HVAC Shop Essentials

Maximize the utility of your flexible thermocouple by pairing it with other critical tools from HVAC Shop:

• Digital Multimeter with Temperature Function: For versatile electrical and temperature diagnostics.
• Thermal Imaging Cameras: To quickly identify hot and cold spots before pinpointing with the thermocouple.
• High-Temperature Adhesives & Tapes: Securely mount your thermocouple for extended monitoring or challenging surfaces.

Technical Specifications

Temperature - TC Type K (NiCr-Ni)

Feature	Value
Measuring range	-50 to +400 °C
Accuracy	Class 2 ¹
Reaction time	5 s

¹ According to standard EN 60584-1, the accuracy of Class 2 refers to -40 to +1200 °C (Type K).

Physical Dimensions & General Data

Feature	Value
Cable length	800 mm
Cable material	Glass fibre
Weight	10 g
Connection	Thermocouple plug

Keep Your Operations Optimized

Don't let rigid tools slow you down. The Flexible Thermoelectric Couple 0602 0644 provides the adaptability and speed you need for accurate temperature diagnostics in any situation. Invest in precision and efficiency – add this indispensable tool to your kit today!
