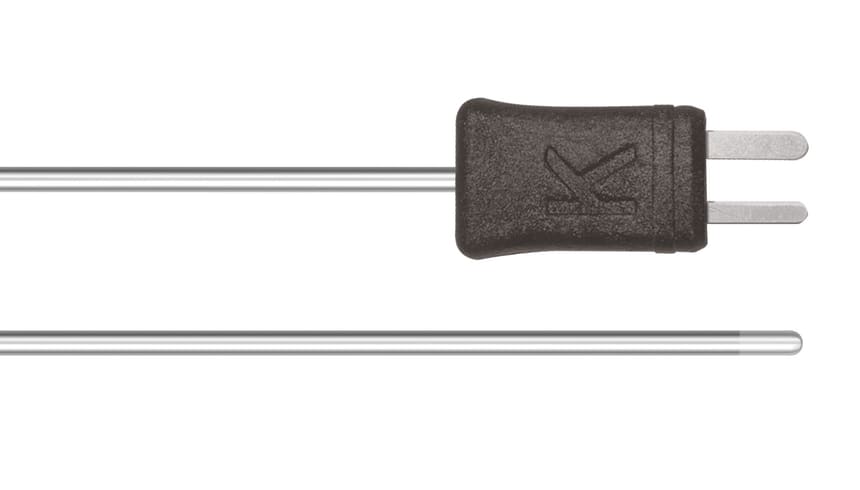

Flexible Immersion Measuring Tip (Tc Type K)

Flexible Immersion Measuring Tip (TC Type K)

Engineered for hard-to-reach areas, this flexible immersion measuring tip utilizes a high-performance TC Type K thermocouple sensor. Designed for versatility and agility, it is the perfect solution for temperature measurements in air and flue gases where standard rigid probes simply cannot go.

The highly flexible shaft allows for effortless alignment into complex ducting or narrow openings. With a total length of 1,000 mm, it offers the reach required for industrial exhaust monitoring, all while maintaining a rapid 4-second reaction time to keep your data gathering fast and accurate.

Tradie Pro Tip: Take advantage of the 1-meter flexible shaft to bypass obstacles! For the most accurate flue gas reading, ensure the tip is positioned in the center of the flow, allowing the thermocouple to stabilize instantly in the air stream.

Key Technical Highlights

• Highly flexible design for easy insertion into restricted or awkward measurement points
• Generous 1,000 mm probe shaft length for deep-reach industrial applications
• Rapid 4-second reaction time for real-time temperature tracking
• Wide measuring range from -40 to +1000 °C

---

Technical Specifications

Temperature - TC Type K

Feature	Value
Measuring range	-40 to +1000 °C
Accuracy	Class 1 ¹
Reaction time	4 s

¹ According to standard EN 60584-1, the accuracy of Class 1 refers to -40 to +1000 °C (Type K).

Physical Dimensions & General Data

Feature	Value
Length probe shaft	1,000 mm
Diameter probe shaft tip	3 mm
Weight	54 g

---

Delivery Scope

1 x Flexible immersion measuring tip (TC Type K) (Product no. 0602 5693).
