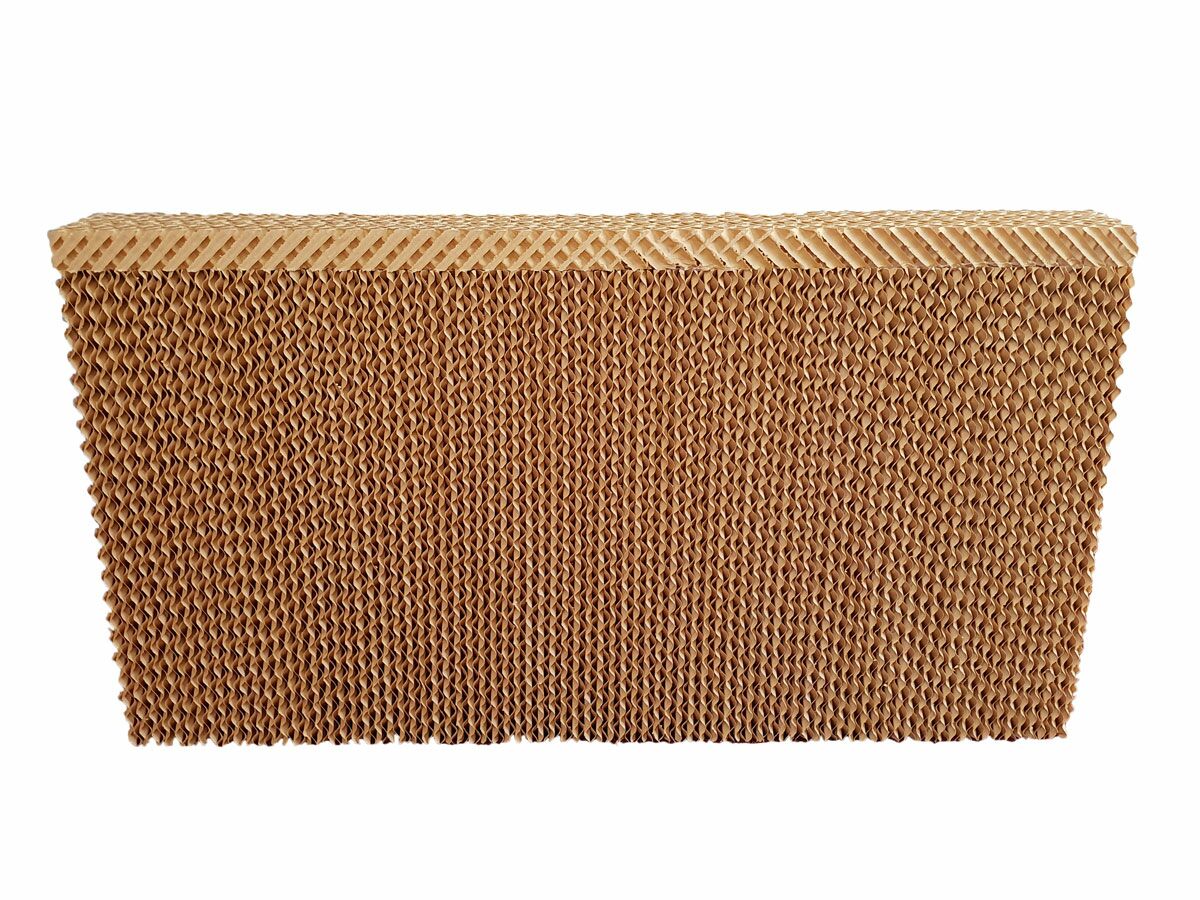

Filtex Evaporative Cooler Pad Set, 800x635mm

This Filtex evaporative cooler pad set is your go-to for keeping your cooler running top-notch, delivering effective, fresh air cooling through the Australian summer. Good pads are crucial for these systems, especially when it's hot and dry; worn-out pads just don't cut it and waste water. You'll notice the difference in air quality and cooling performance immediately with a fresh set.

Best for: Replacing worn-out pads in compatible Filtex or similar evaporative cooling units, ensuring optimal performance and efficiency.

Compatibility

These Filtex pads are designed for evaporative cooling units that take an 800mm x 635mm x 120mm pad size. The set includes four contoured pads, fitting units that use a multi-pad system. If you're running a different model, check fittings and specs before ordering.

Features

• 4 pad contour set for a precise fit in compatible units.
• Low scaling and self-cleaning design to reduce maintenance.
• Self-supporting structure minimises water carry-over.
• Superb wetting properties for high evaporation efficiency.
• Maintains a low pressure drop even when wet, for better airflow.
• Includes pins and washers for straightforward installation.

Technical Specifications

What's in the Box

• 4 x Filtex Evaporative Cooler Cellulose Pads (800 x 635 x 120 mm)
• Set of pins and washers for installation

Using It on the Job

1. Isolate power to the evaporative cooler at the mains before starting any work.
2. Remove the old, worn-out pads and thoroughly clean out any scale or debris from the cooler's sump and frame.
3. Carefully position the new Filtex pads into their respective frames, ensuring correct orientation for their contoured fit.
4. Secure each pad using the included pins and washers, checking for a snug fit.
5. Inspect the water distribution system and pump for any blockages or issues before restoring power.
6. Restore power and run the unit, checking for even water flow over the pads and no water carry-over into the ductwork.

Limitations & Safety Notes

• Ensure power is isolated and locked out before any maintenance on evaporative coolers to prevent electric shock.
• These pads are specific to 800mm x 635mm x 120mm units; verify your cooler's dimensions before purchase to ensure a correct fit.
• Always wear appropriate personal protective equipment (PPE), such as gloves, during pad replacement and cleaning tasks.
• Regular cleaning of the cooler sump and water distribution system is recommended to extend pad life and maintain optimal cooling efficiency.

Tradie Pro Tip

When you're swapping out pads, always give the cooler's water tray and pump a good clean. It'll prevent new scale from forming on your fresh pads too quickly and keeps the whole system running smoothly.

Pair With

Pair with evaporative cooler cleaning solutions and a replacement pump for a full system overhaul, ensuring your cooler performs at its best all season.
