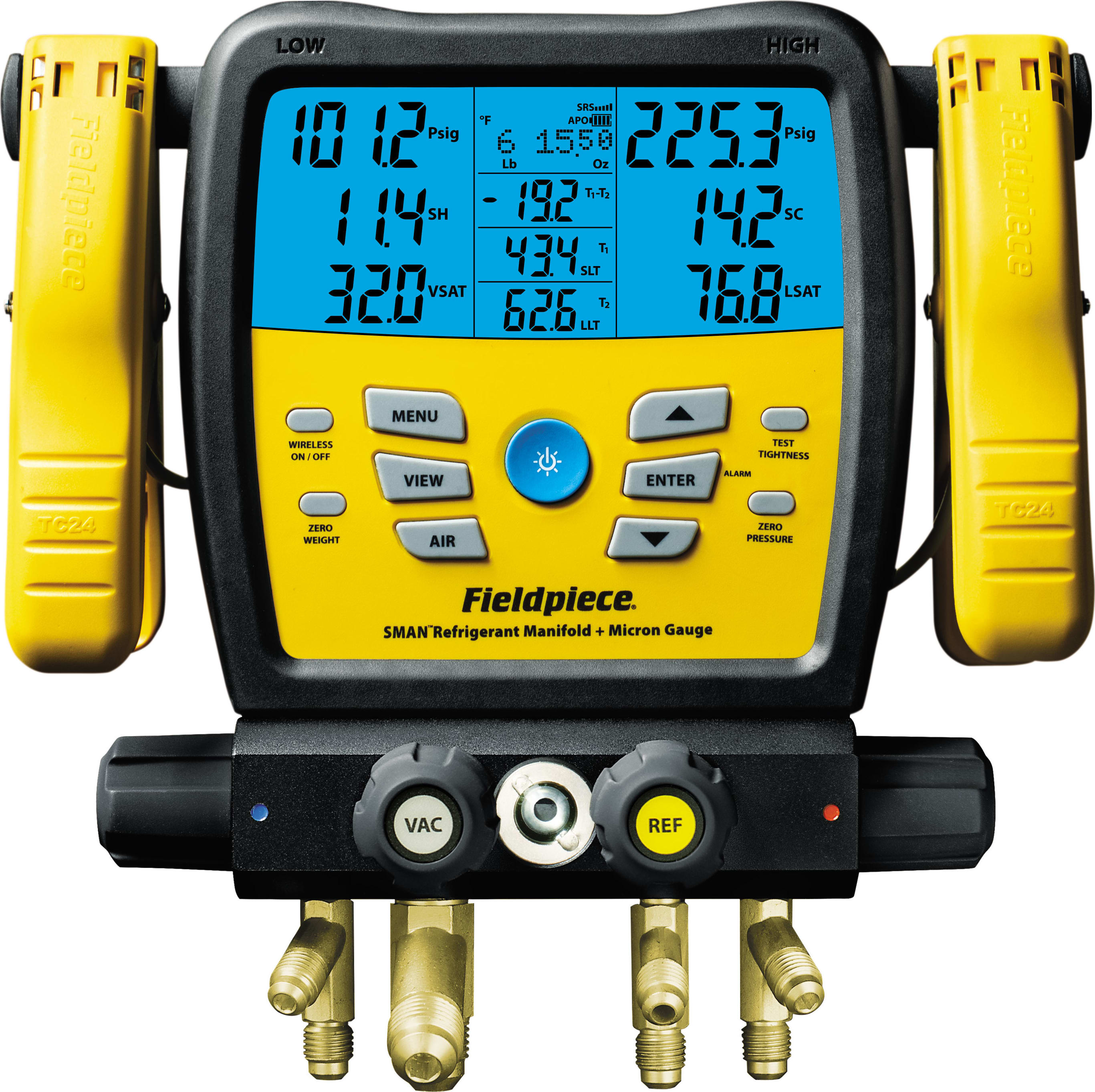

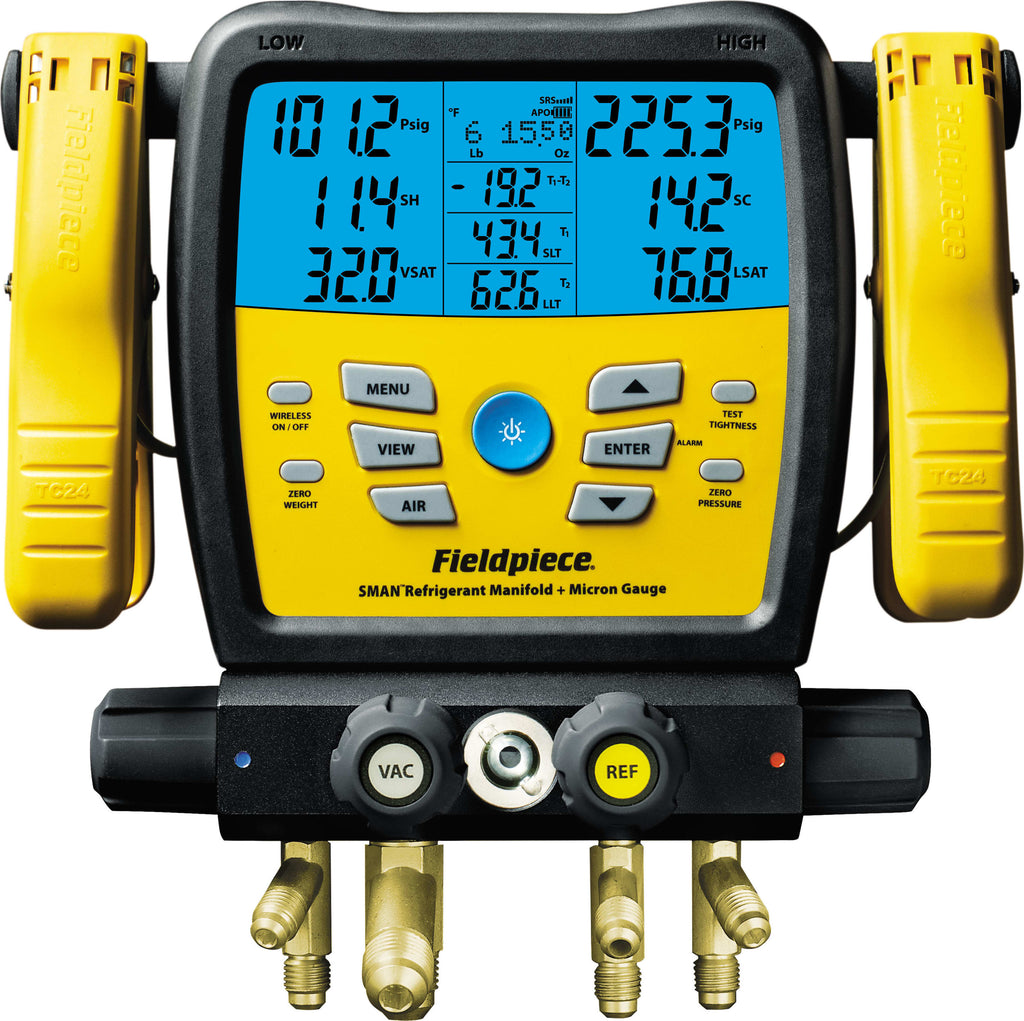

Fieldpiece SM480VINT Wireless 4-Port Digital Manifold with Micron Gauge

Fieldpiece SM480VINT Wireless 4-Port Digital Manifold with Micron Gauge

The Fieldpiece SM480VINT is a professional 4-port digital manifold built for HVAC technicians who need accurate refrigerant charging, vacuum monitoring, and system diagnostics in a single rugged tool. With a built-in micron gauge, wireless Job Link® connectivity, and data logging for up to 9 jobs, it replaces multiple instruments on the service van.

Key Features

• Built-in micron gauge: Accurate vacuum measurement without a separate gauge — monitor evacuation progress directly on the manifold display
• 4-port design: Dedicated ports for high side, low side, recovery, and refrigerant cylinder
• Data logging: Store up to 9 jobs; record continuously for up to 7 days
• Leak test mode: Monitor pressure differential over time with temperature compensation
• Wireless Job Link® compatible: 100m range — pair with psychrometers, pipe clamps, and scales for full-system visibility
• Rugged construction: Impact-resistant screen, hermetically sealed sight glass, reinforced hook for daily jobsite use
• Customisable menu: Vacuum alarms, backlight settings, and unit selection

Job Link® System Integration

Pair the SM480VINT with Fieldpiece Job Link wireless probes — including the JL3PC pipe clamp, JL3RH psychrometer, and JL3PR pressure probe — for live air and refrigerant data on the manifold display and in the Job Link app. Generate shareable job reports and reduce callbacks with documented system performance data.

What’s Included

• SM480VINT 4-Port Digital Manifold
• 2 × TC24 Type-K Wired Pipe Clamp Thermocouples
• 1 × ATA1 Type-K Bead Thermocouple with Clip
• 1 × ANC11 Padded Drawstring Case
