Fieldpiece
Fieldpiece Arctic Essentials

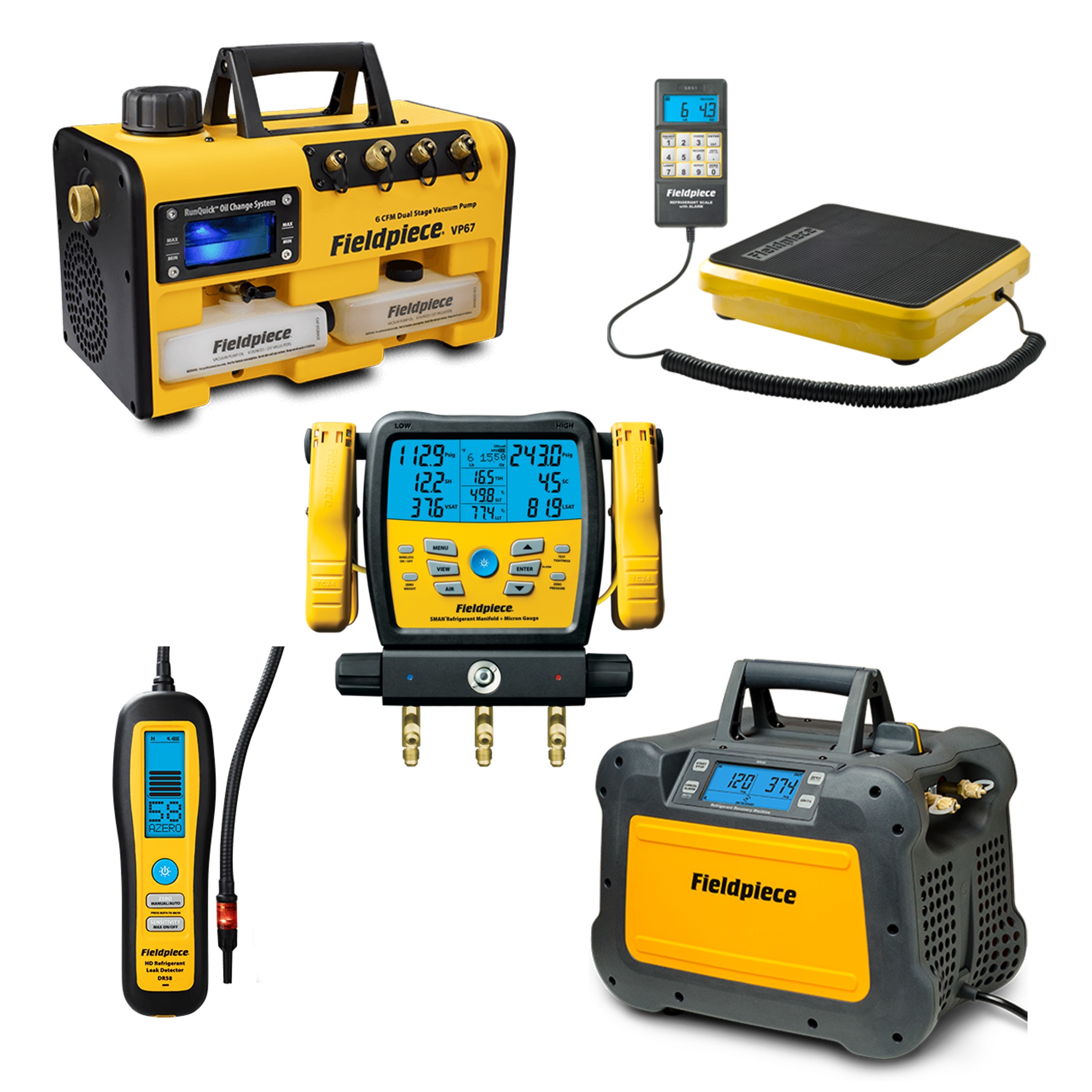

This Fieldpiece R32 Premium Kitt for air conditioning and refrigeration includes:
-

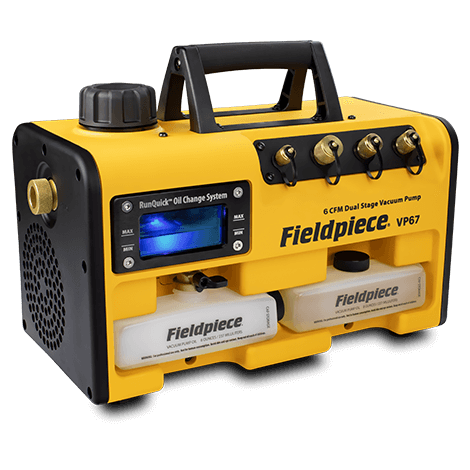

1 x Fieldpiece VP67 170 L/M 6 CFM A2L Certified 2 Stage Vacuum Pump - VP67INT
-
1 x Fieldpiece Recovery Unit - MR45INT

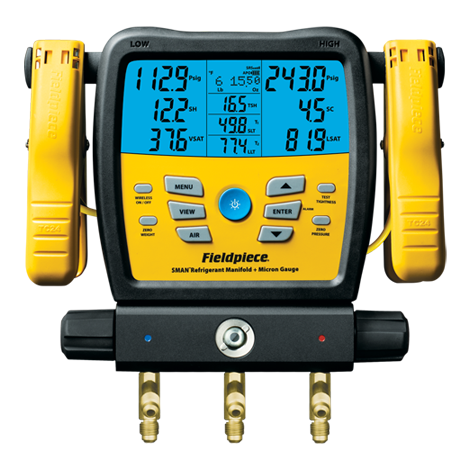

- Fieldpiece 2-Valve Digital Manifold with Data Logging and Micron Gauge - SM380vINT
-

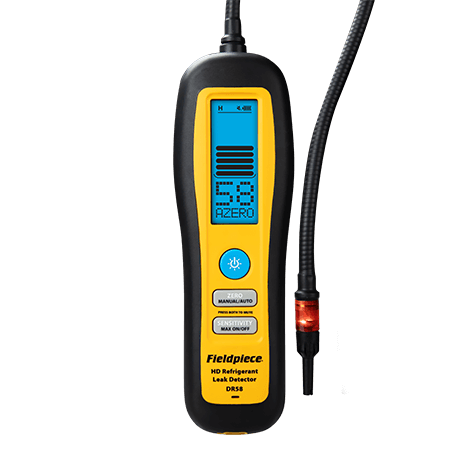

1 x Fieldpiece Infrared Refrigerant Leak Detector - DR58
- 1x Fieldpiece Digital Refrigerant Scales 50KG - SRS1
FEATURES AND CAPABILITIES
Fieldpiece VPX7 283 L/M 10 CFM A2L Certified 2 Stage Vacuum Pump - VPX7INT
The NEW Fieldpiece VPX7INT high-efficiency Vacuum Pump with RunQuick™ Oil Change System - No Fuss - No Mess
- 10 CFM (283 l/m)flow rate with 15 microns ultimate vacuum
- 3/4 HP DC motor
- RunQuick™ Oil Change System offers on-the-fly oil changes in seconds
- Extra oil bottle storage
- Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
- Backlit oil reservoir to view condition of oil and system
- Water resistant to withstand direct rain
- Patented lightest weight pump
- Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
- Sturdy base stays upright
- Small footprint – 1,346 cubic inches
- Quarter-turn gas ballast with LED indicator
- Convenient, removable cord storage
- Error messages: indicate wrong power source or other errors
- Suitable for A2L class refrigerants
- R32, R1234YF, R1234ZE, R512A, 419B, 439A & other
WHAT'S INCLUDED
- VPX7INT Vacuum Pump
- 2 x 8oz RunQuick Oil Containers (Filled)
- Operator’s Manual
SPECIFICATIONS
| Flow Rate | 10 CFM (283 l/m) |
| Oil Capacity | 8oz (237mL) |
| Oil Compatibility | Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication) |
| Fieldpiece part numbers | OIL8X3, OIL32, OIL128 |
| Oil Backlight | Blue LED |
| Oil Drain | Ball valve |
| Port Sizes | (1) 1/4”, (2) 3/8”, (1) 1/2” |
| Compressor | Rotary vane, two stage |
| Motor | 3/4 HP Brushless DC |
| RPM | 2500 |
| Power Source | 240 VAC @ 50 Hz 1 phase |
| Nominal Current Draw | 6.0 AAC |
| Ultimate Vacuum at Input Ports | 15 microns |
| Operating Environment | -1.1°C to 50°C |
| Dimensions | 201 mm x 296 mm x 406 mm |
| Weight | 11.1 kg |

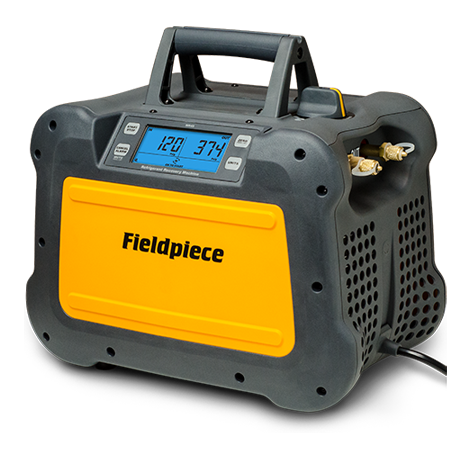

Fieldpiece Recovery Unit - MR45INT
Refrigerant Recycling has never been easier or faster with the MR45INT Recovery Machine
Dual cylinder compressor with long life and low friction with ceramic lined cylinders
WHAT'S INCLUDED
- MR45 Refrigerant Recovery Machine
- 10 Extra Mesh Screens for Input Port
- 3 Extra O-ring for Input Port
- Operator’s Manual
SPECIFICATIONS
| Display | 2 x 10000 count LCD with status messages |
| Backlight | Blue color |
| Measurement rate | 3.3 times per second, nominal |
| Input Port Pressure Sensor Range | -30” Hg to 600 psig |
| Output Port Pressure Sensor Range | -30” Hg to 600 psig |
| High Pressure Cutoff | 558 psig, nominal |
| Resolution and Units | 1 psig (1” Hg), 0.05 bar (2 cmHg), 0.01 Mpa (2 cmHg), 5 Kpa (2 cmHg) |
| Pressure Sensor Accuracy | ± 0.5 “ Hg (Vacuum) ± (0.6% of reading +2 psig) |
| Final Recovery Vacuum | 14.9” Hg |
| Compressor | Twin cylinder reciprocating (oil-less) |
| DC Motor | 1 HP (variable smart speed) |
| Power Source | 220 - 240 VAC @ 50 Hz 1 phase |
| Max Current Draw | 7.0 Amp |
| Valve | Single dual-route ball valve |
| Input Port Filtration | 9 mm mesh screen, stainless |
| Dimensions | 376 mm x 250 mm x 344 mm |
| Weight | 10 Kgs |
| Operating Environment | 32°F to 122°F (0°C to 50°C) |
| Storage Environment | -4°F to 140°F (-20°C to 60°C) |
| Approved Refrigerants | R12, R12345YF, R134A, R22, R32, R401A (MP39), R401B, R401C, R402A, R402B, R404A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R412A, R500, R502, R507, R509 |

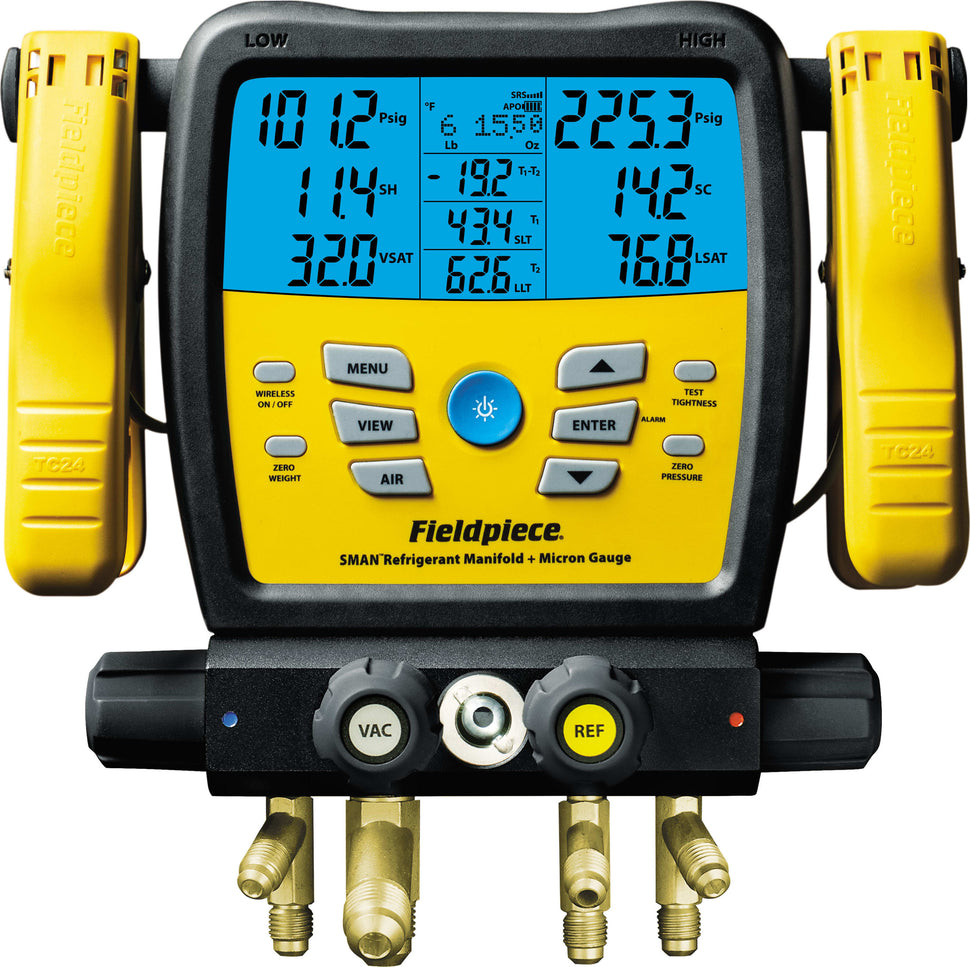

Fieldpiece Wireless 4-Valve Digital Manifold with Micron Gauge - SM480vINT
The newly designed Fieldpiece Manifolds are stronger and more robust than ever before!
Data Logging
• Stores up to 9 jobs internally
• Easy download via USB port
• Displays % free storage space before logging begins
• Logs up to 7 days (168 continuous hours)
Tightness Test built-in feature
• Check for leaks after repairs or installations
• View pressure differential over time
• Timer tracks duration of test
• Temperature compensated with SL temp to avoid false positives
Customisable Menu
• Adjust auto power off duration
• Adjust backlight duration
• Set high and low vacuum alarms
• Select each unit of measurement individually
Receives Wireless Measurements
Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SRS3 Refrigerant Scale.
Place pipe clamps in the perfect location. Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments.
Increase Professionalism with Job Link® System App
Streamline and simplify your call even further with the Job Link System App. See your measurements up to 100 metres away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.
• View measurements on SMAN and/or in Job Link App
• Monitor and record refrigerant weight
• Direct 100 meter wireless range (no transmitter needed)
WHAT'S INCLUDED
- SM480vINT
- 2 x TC24 Wired Type-K Pipe Clamp thermocouple
- 1 x ATA1 Type-K Bead Thermocouple with clip
- 1 x ANC11 Padded Drawstring Case
SPECIFICATIONS
| Display | LCD (5 inches diagonal) |
| Backlight | Blue (adjustable duration) |
| Low Battery Indication | Displayed when the battery voltage drops below the operating level |
| Over Range Display | OL for pressure, – – – – for temperature |
| Auto Power Off | 30 minutes of inactivity (adjustable) |
| Maximum Manifold Pressure | 800 Psig (5500 kPa) |
| Battery Type | 6 x AA alkaline |
| Battery Life | 350 hours typical (without vacuum, backlight, and wireless) |
| Radio Frequency | 2.4 GHz |
| Wireless Range | 305 meters line of sight – distance decreases through obstructions |
| Data Port | Micro USB (for extracting data logs or updating firmware) |
| Operating Environment | 0°C to 50°C at <75% RH |
| Storage Environment | -20°C to 60°C at <80% RH (with battery removed) |
| Temperature Coefficient | 0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°C) |
| Weight | 1.83 kg |
| Water Resistant | Designed to IP54 |
Fieldpiece Infrared Refrigerant Leak Detector - DR82
Infrared Refrigerant Leak Detector for HVACR - Superior Sensitivity in a Rugged Design for HVACR
- 10-year sensor life
- Doesn’t trigger on soap bubbles and oil
- Compact – designed to fit in your hand
- Multiple alarms
- LED lighted tip and loud beep help find leaks in noisy and dark environments
- Sensitivity better than 0.03 oz/yr (1g/yr)
- Ruggedized and IP54-certified
- 10-hour battery charge
- Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
- Non-conductive, sturdy probe that stays where you want it.
- Weighs less than a pound
- Works on A2L Refrigerants
WHAT'S INCLUDED
- Advanced IR Refrigerant Leak Detector (DR82)
- 5 x Replacement Filtered Tips (RFT6)
- Wall Charger with USB-C Cable (RCA3)
- Blow-Molded Case (ABM2)
- Operator’s Manual
SPECIFICATIONS
| Sensor Type | Infrared (IR) |
| Sensor Life | 10 years typical |
| Sensitivity Levels | High, medium, low, turbo (selectable) |
| Maximum Sensitivity | 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion |
| Display Type | LCD (backlit for indoor use) |
| Detection Feedback | Red tip LED, LCD bar graph, LCD digits, beeper |
| Refrigerants | Detects CFC, HFC, HCFC, HFO and blends and doesn’t trigger on oil or soap bubbles |
| Response Time | <1 seconds typical |
| Recovery Time | <5 seconds typical |
| Body Type | Compact, rugged overmolded |
| Battery Type | 3.7 VDC (nominal) 2600mAh, non-replaceable |
| Charge Time | 6 hours typical with included charger. |
| Battery Life | 10 hours typical, backlight off |
| Auto Power Off | 10 minutes without detection or button press |
| Operating Environment | 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C); < 80% RH |
| Weight | 14 oz (400g) |
| Water Resistance | Designed to IP54 |

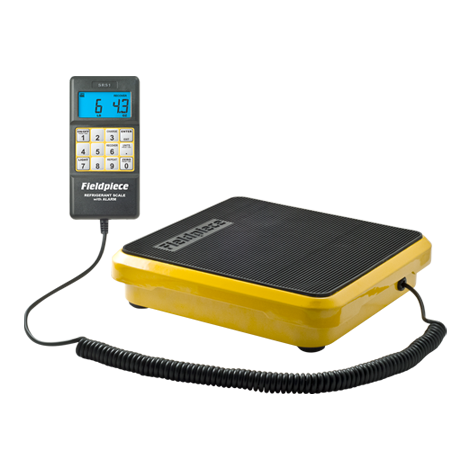

Fieldpiece Digital Refrigerant Scales 50KG - SRS1
Perfectly suited for the Residential or Light Commercial Technician with a weighing range up to 50 kgs in increments of 0.01kg.
Heavy Duty
The SRS1 has the ruggedness needed for the HVACR field with thick aluminium walls to maintain accuracy, and rubber feet and rubber pad to soften the impact of daily use. It's also water-resistant. The scale itself can withstand a downpour, while the handle needs a little more care because of the electronics inside (it can handle some rain, but please don't drop it in a lake).
Charging and Recovery Alarms
You can quickly set a charge or recovery alarm using the big numeric keypad without scrolling through digits. Once you dial in how much refrigerant to charge or recover you can work on other tasks, knowing the alarm will sound when it hits your target.
Easy to Carry
Weighing less than seven pounds, and housed in a heavy-duty soft-sided case, the SRS1 refrigerant scale is easy to throw over your shoulder when you need to carry other things or climb a ladder.
Get More Done
- Charging & recovery weight alarms
- Easy to carry
- 0.25 oz (0.01 kg) resolution
- Water-resistant
WARRANTY
1 Year from Date of Purchase (excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
