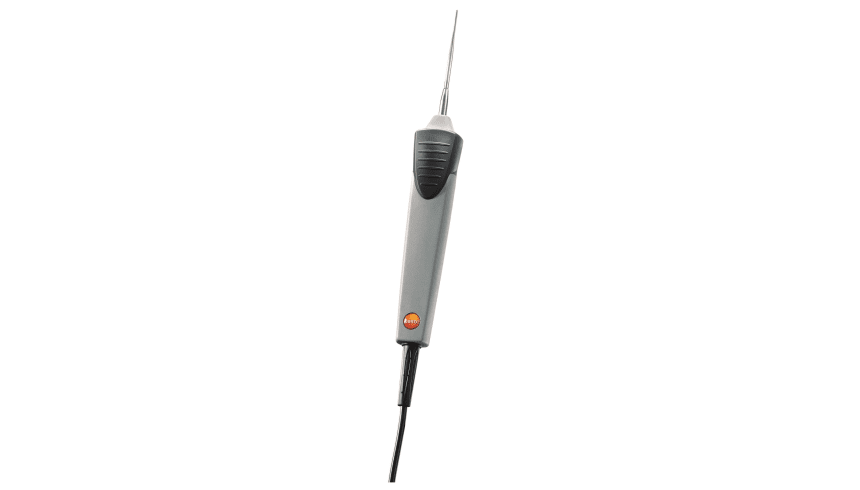

Fast-action Immersion/penetration Probe (Tc Type K)

Fast-Action Immersion/Penetration Probe (TC Type K)

The fast-action immersion and penetration probe is engineered for high-speed, accurate temperature measurement in liquids, semi-solids, pastes, and air. Equipped with a reliable thermocouple Type K sensor, it delivers exceptional performance across a massive temperature range.

Thanks to its extremely thin 1.5 mm tip, this probe ensures rapid thermal response, achieving precise readings in as little as 3 seconds. Its splash-proof IP54 housing makes it an incredibly versatile tool for everything from HVAC system checks to demanding field measurements.

Tradie Pro Tip: The magic of this probe is in that stepped 14 mm tip. Make sure the entire 1.5 mm slim section is fully submerged in your medium to hit that lightning-fast 3-second response time perfectly!

Key Features

• Ultra-fast 3-second response time for immediate readings
• Wide measuring range from -60 to +800 °C
• Ultra-slim 1.5 mm stepped probe tip for quick temperature detection
• Splash-proof design with an IP54 protection rating

---

Technical Data

Temperature - TC Type K

Feature	Value
Measuring range	-60 to +800 °C
Accuracy	Class 1 ¹
Reaction time	3 s

¹ According to standard EN 60584-1, the accuracy of Class 1 refers to -40 to +1000 °C (Type K).

Physical Dimensions & General Data

Feature	Value
Length probe shaft	60 mm
Length probe shaft tip	14 mm
Diameter probe shaft	5 mm
Diameter probe shaft tip	1.5 mm
Cable length	1.5 m
Protection class	IP54

---

Delivery Scope

1 x Fast-action immersion/penetration probe (TC Type K) with 1.5 m fixed cable (Product no. 0602 2693).
