Description

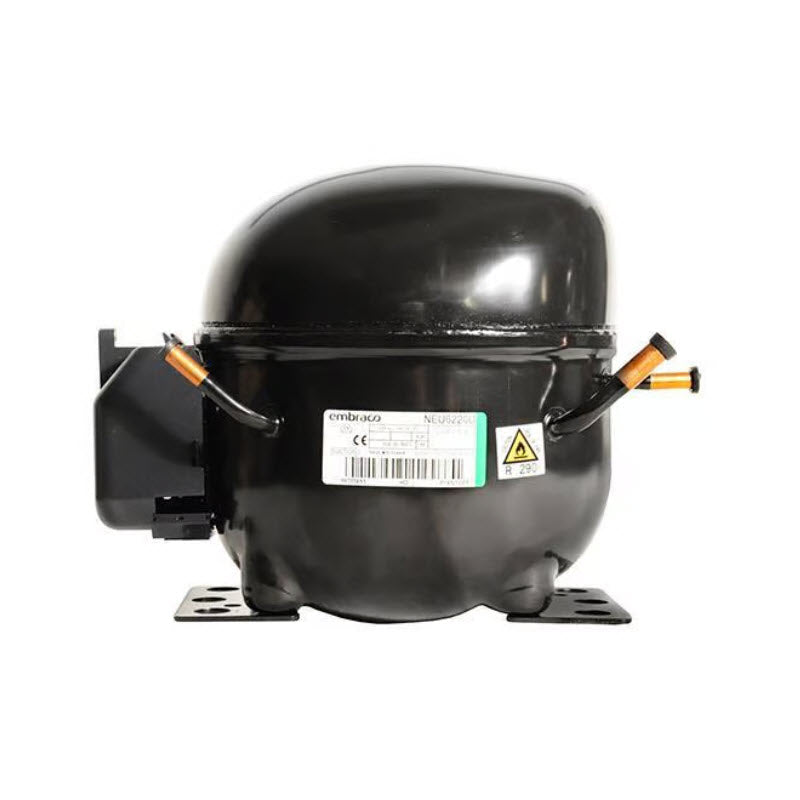

Embraco NEU6220U Medium Temp Compressor (3/4 HP, R290)
When you are dealing with large-scale walk-in chillers, expansive multi-door supermarket displays, or heavy-duty commercial cool rooms, you need a compressor with serious muscle. The stock has to stay cold, and the pull-down time has to be immediate. The Embraco NEU6220U is a top-tier, heavy-duty 3/4 HP Medium Back Pressure (MBP) compressor engineered to handle the most demanding medium-temperature commercial applications using the highly efficient, eco-friendly R290 natural refrigerant.
Key Features & Trade Benefits
- Massive Cooling Capacity: As a 3/4 HP unit, this is one of the heavy hitters in the NEU lineup. It provides massive heat displacement capabilities required for large-volume cabinets and high-traffic cool rooms.
- R290 Optimized Performance: Engineered exclusively for R290 (Propane). It delivers brilliant thermodynamic efficiency, allowing you to achieve massive cooling power while drastically lowering energy consumption and maintaining an ultra-low Global Warming Potential (GWP).
- NEU Series Robustness: The NEU platform is built for extreme commercial demands. It offers vastly superior efficiency and motor cooling over older legacy models, ensuring it can run continuously under heavy load without breaking a sweat.
- Trusted Embraco Reliability: Embraco sets the global standard for commercial refrigeration. Expect smooth, torque-heavy starts, robust mechanical longevity, and rock-solid performance even during the hottest summer shifts.
Why This Compressor Matters on the Job
Aussie hospitality and retail environments don't do "average" conditions. When a busy commercial kitchen or supermarket hits peak hours, with cool room doors constantly open and ambient temperatures soaring, the compressor takes an absolute beating. The NEU6220U is built specifically for these brutal, high-stress cycles. Its massive ~16.8 cm³ displacement means it can shift enormous volumes of heat and recover safe food storage temperatures incredibly fast, protecting your client's thousands of dollars in inventory and preventing frustrating callback jobs.
Tradie Pro Tip for R290:R290 is a highly flammable (A3 safety class) hydrocarbon. Treat it with respect. Never unbraze a live system. Always recover the refrigerant safely with an A3-rated recovery machine, purge the lines thoroughly with dry oxygen-free nitrogen (OFN), and ensure your work area is heavily ventilated before striking a torch. Because this is a larger 3/4 HP system, accurate weigh-in of the new charge is absolutely critical to avoid flooding the compressor.
What’s Included
- 1 × Embraco NEU6220U Medium Temp Compressor (3/4 HP, R290)
- Note: Standard starting components, relays, and covers supplied as per factory Embraco packaging.
Specifications
| Attribute | Details |
|---|---|
| Brand & Model | Embraco NEU6220U |
| Application | MBP / HMBP (Medium/High Back Pressure) |
| Refrigerant | R290 (Propane) |
| Nominal Horsepower | 3/4 HP |
| Cooling Capacity (-10°C) | Approx. 1450 Watts |
| Displacement | 16.80 cm³ |
| Power Supply | 220-240 V 50 Hz |
| Weight | Approx. 12.5 kg |
Frequently Asked Questions (FAQ)
What is the difference between Medium Temp (MBP) vs Low Temp (LBP), and how does Horsepower (HP) factor into R290 compressors?
Selecting the right compressor requires understanding three main factors: Application (Temp), Capacity (HP), and Refrigerant (R290). Here is how they break down:
- Medium Temp (MBP) vs. Low Temp (LBP): Medium Back Pressure (MBP) compressors like this NEU6220U are designed for standard refrigeration (cool rooms, heavy-duty prep fridges, beverage displays) operating between -10°C and +5°C. Low Back Pressure (LBP) compressors are designed specifically for deep freezing applications (freezers, ice cream cabinets) operating down to -25°C or lower. You cannot swap an LBP for an MBP.
- Low HP (e.g., 1/4 HP) vs. High HP (e.g., 3/4 HP): Horsepower indicates the physical cooling capacity (muscle) of the compressor. A "low" HP compressor is perfect for smaller, single-door under-bench fridges. A heavy-duty compressor (like this 3/4 HP unit) has a massive displacement and is required for commercial walk-ins or massive multi-door uprights that need to shift huge volumes of heat fast.
- The R290 Factor: Whether it is a 1/4 HP MBP fridge or a 1 HP LBP freezer, if it uses R290, it benefits from incredible energy efficiency and cooling performance. However, because R290 is flammable, all R290 compressors (regardless of HP or temp) utilize specialized non-sparking electrical relays and overloads to guarantee safety.
Can I use this compressor to retrofit an older R134a or R404a walk-in cooler?
No. Upgrading a system originally designed for a non-flammable refrigerant (like R134a or R404a) to a highly flammable hydrocarbon (R290) is illegal in many jurisdictions without strict engineering overhauls. R290 systems require non-sparking electrical components and extremely specific charge limits. Always replace like-for-like.
What type of oil does the Embraco NEU6220U use?
This compressor comes factory-charged with Polyol Ester (POE) oil (ISO22 viscosity). POE oil absorbs moisture from the atmosphere very rapidly. Do not unseal the compressor stubs until you are completely ready to braze it into the system, and always install a fresh, appropriately sized liquid line filter drier.
