Description

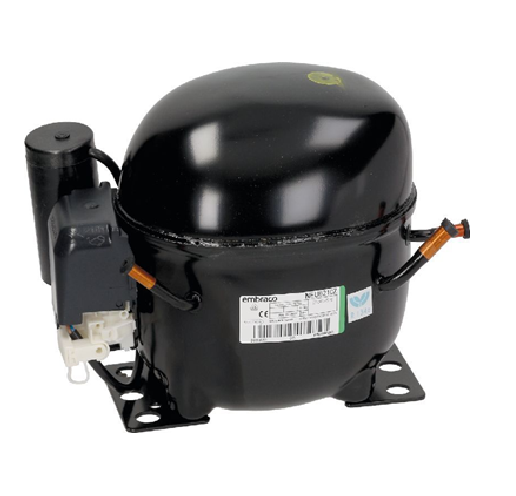

Embraco NEU6212U Medium Temp Compressor (1/2 HP, R290)
When a commercial multi-door display, large prep counter, or walk-in chiller drops its temperature, premium produce and expensive stock are on the line. You need a replacement that drops in smoothly, pulls the cabinet down fast, and runs reliably during the busiest services. Although sometimes mistakenly listed as a 1/4 HP unit, the Embraco NEU6212U is actually a highly efficient, heavy-duty 1/2 HP Medium Back Pressure (MBP) compressor engineered specifically to drive demanding medium-temperature applications using the eco-friendly, high-performance R290 natural refrigerant.
Key Features & Trade Benefits
- R290 Optimized Performance: Engineered exclusively for R290 (Propane). It offers brilliant thermodynamic efficiency, drastically lowering energy consumption while boasting an ultra-low Global Warming Potential (GWP).
- High-Capacity Medium Temp: Designed for MBP and HMBP applications requiring extra muscle, providing consistent, reliable cooling power perfect for large commercial display fridges, multi-door glass merchandisers, and spacious cold rooms.
- NEU Series Robustness: The NEU platform is a major upgrade over the standard NEK series, delivering up to 15% better efficiency, enhanced cooling capacity, and a rugged design suited for heavy commercial demands.
- Trusted Embraco Reliability: Embraco sets the global standard for commercial refrigeration. Expect smooth starts, robust mechanical longevity, and stable performance even under heavy loads.
Why This Compressor Matters on the Job
Aussie hospitality environments don't do "average" conditions. When a busy commercial kitchen hits 40°C during the lunch rush, with multi-door fridges constantly swinging open, the compressor takes an absolute beating. The NEU6212U is built specifically for these high-stress cycles. Its larger 9.99 cm³ displacement and superior NEU-series motor cooling mean it can recover safe food storage temperatures incredibly fast in larger cabinets, protecting your client's inventory and preventing frustrating callback jobs.
Tradie Pro Tip for R290:R290 is a highly flammable (A3 safety class) hydrocarbon. Treat it with respect. Never unbraze a live system. Always recover the refrigerant safely with an A3-rated recovery machine, purge the lines thoroughly with dry oxygen-free nitrogen (OFN), and ensure your work area is heavily ventilated before striking a torch. Accurate weigh-in of the new charge is critical for MBP systems to avoid flooding the compressor.
What’s Included
- 1 × Embraco NEU6212U Medium Temp Compressor (1/2 HP, R290)
- Note: Standard starting components, relays, and covers supplied as per factory Embraco packaging.
Specifications
| Attribute | Details |
|---|---|
| Brand & Model | Embraco NEU6212U |
| Application | MBP / HMBP (Medium/High Back Pressure) |
| Refrigerant | R290 (Propane) |
| Nominal Horsepower | 1/2 HP |
| Cooling Capacity (-10°C) | Approx. 900 Watts |
| Displacement | 9.99 cm³ |
| Power Supply | 220-240 V 50 Hz |
| Weight | Approx. 11.2 kg |
Frequently Asked Questions (FAQ)
What is the difference between Medium Temp (MBP) vs Low Temp (LBP), and how does Horsepower (HP) factor into R290 compressors?
Selecting the right compressor requires understanding three main factors: Application (Temp), Capacity (HP), and Refrigerant (R290). Here is how they break down:
- Medium Temp (MBP) vs. Low Temp (LBP): Medium Back Pressure (MBP) compressors like this NEU6212U are designed for standard refrigeration (chillers, prep fridges, beverage displays) operating between -10°C and +5°C. Low Back Pressure (LBP) compressors are designed specifically for deep freezing applications (freezers, ice cream cabinets) operating down to -25°C or lower. You cannot swap an LBP for an MBP.
- Low HP (e.g., 1/4 HP) vs. Med/High HP (e.g., 1/2 HP): Horsepower indicates the physical cooling capacity (muscle) of the compressor. A "low" HP compressor (1/4 HP) is perfect for smaller, single-door under-bench fridges. A "medium" to high HP compressor (like this 1/2 HP unit) has a much larger displacement and is required for massive multi-door uprights or demanding cabinets that need to shift huge volumes of heat.
- The R290 Factor: Whether it is a 1/4 HP MBP fridge or a 1 HP LBP freezer, if it uses R290, it benefits from incredible energy efficiency and cooling performance. However, because R290 is flammable, all R290 compressors (regardless of HP or temp) utilize specialized non-sparking electrical relays and overloads to guarantee safety.
Can I use this compressor to retrofit an older R134a or R404a fridge?
No. Upgrading a system originally designed for a non-flammable refrigerant (like R134a or R404a) to a highly flammable hydrocarbon (R290) is illegal in many jurisdictions without strict engineering overhauls. R290 systems require non-sparking electrical components and specific charge limits. Always replace like-for-like.
What type of oil does the Embraco NEU6212U use?
This compressor comes factory-charged with Polyol Ester (POE) oil (ISO22 viscosity). POE oil absorbs moisture from the atmosphere very rapidly. Do not unseal the compressor stubs until you are completely ready to braze it into the system, and always install a fresh, appropriately sized liquid line filter drier.
