Description

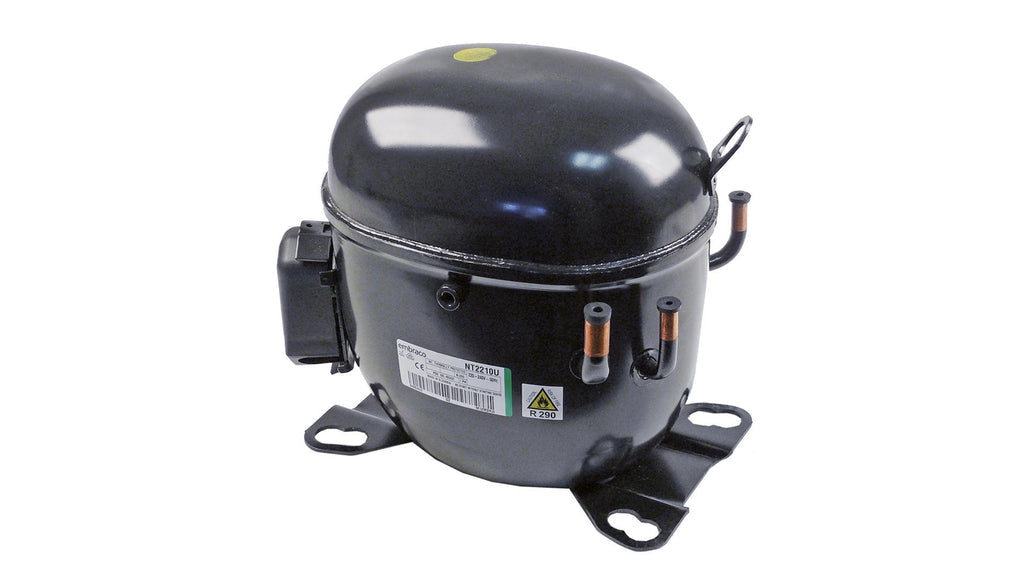

Embraco NT2210U Low Temp Compressor (1 1/4 HP, R290)
When a large commercial multi-door freezer or island display cabinet goes down, the financial risk to your client is massive. You need a heavy-hitting replacement that drops in easily, pulls down huge volumes of air fast, and runs relentlessly under load. The Embraco NT2210U is a high-capacity, heavy-duty Low Back Pressure (LBP) compressor engineered for demanding low-temp commercial applications running on highly efficient R290 natural refrigerant.
Key Features & Trade Benefits
- R290 Optimized: Purpose-built for R290 (Propane), delivering maximum thermodynamic efficiency, drastically reduced energy consumption, and compliance with strict modern environmental standards (ultra-low GWP).
- High-Capacity Low Temp Muscle: Packs serious cooling power, making it the ideal direct replacement for larger commercial freezer applications, walk-ins, and multi-door uprights that require rapid pull-down and stable holding temperatures.
- NT Series Durability: The Embraco NT platform is the gold standard for heavy commercial use. It features a larger displacement, superior cooling surface area, and robust internal components designed to handle higher ambient temperatures and extreme duty cycles.
- Trusted Embraco Reliability: As an industry leader, Embraco guarantees high starting torque, low acoustic noise for its size class, and rock-solid mechanical longevity.
Why This Compressor Matters on the Job
Aussie hospitality and retail environments test refrigeration gear to its absolute limits. When a busy supermarket or pub kitchen pushes past 40°C, the compressors working to keep multi-door freezers at -20°C take a massive beating. The NT2210U is built specifically for these high-stress, high-load environments. Its superior motor cooling and robust valve plate design mean it can recover deep freezing temperatures incredibly fast after heavy restocking periods, protecting your client's inventory and preventing frustrating callback jobs.
Tradie Pro Tip for High-Capacity R290:Because this is a larger capacity R290 compressor, the system charge will be higher (though strictly regulated). Accurate weigh-in using digital scales is non-negotiable. Because R290 is a highly flammable (A3) hydrocarbon, you must never unbraze a live system. Recover the gas safely using a spark-proof recovery unit, purge the lines thoroughly with dry oxygen-free nitrogen (OFN), and ensure the area is highly ventilated before striking a torch.
What’s Included
- 1 × Embraco NT2210U Low Temp Compressor (1 1/4 HP, R290)
- Note: Starting components, capacitors, and relays supplied as per factory Embraco packaging standards.
Specifications
| Attribute | Details |
|---|---|
| Brand & Model | Embraco NT2210U |
| Application | LBP (Low Back Pressure) / Low Temp |
| Refrigerant | R290 (Propane) |
| Nominal Horsepower | 1 1/4 HP (1.25 HP) |
| Cooling Capacity (-25°C) | Approx. 1160 - 1250 Watts (Subject to exact rating conditions) |
| Displacement | 27.80 cm³ |
| Power Supply | 220-240 V 50 Hz |
| Weight | Approx. 18.5 kg |
Frequently Asked Questions (FAQ)
How does the NT2210U differ from other Embraco R290 low temp compressors?
The primary difference lies in capacity and physical footprint. Embraco engineers different platforms to handle different cooling loads:
- EMC Series (e.g., EMC3130U): Compact, high-efficiency models (~1/4 HP) perfect for small under-bench freezers.
- NEU Series (e.g., NEU2155U): Mid-range workhorses (~1/2 to 3/4 HP) ideal for standard upright commercial freezers.
- NT Series (NT2210U): The heavyweights (1 1/4 HP). With a massive 27.80 cm³ displacement, this compressor is physically larger and engineered for high-demand applications like large multi-door freezers, island display cabinets, and walk-ins that require massive cooling power and rapid pull-down.
Can I retrofit a large commercial cabinet designed for R404A with this R290 compressor?
No. Upgrading or retrofitting a system designed for a non-flammable HFC (like R404A) to a highly flammable hydrocarbon (R290) involves significant legal and safety risks. The system's electrical components must be rated non-sparking, and charge limits are strictly governed by law. Always replace like-for-like to ensure compliance and safety.
What type of oil does the Embraco NT2210U use?
This heavy-duty compressor comes pre-charged with Polyol Ester (POE) oil. POE oil absorbs moisture from the atmosphere very rapidly, so do not unseal the compressor stubs until you are completely ready to braze it into the system, and always install a fresh, appropriately sized liquid line filter drier.
Do I need a special license to install this?
Yes. While R290 is a natural refrigerant, its A3 flammability rating means it requires specialized handling. Technicians must hold a specific hydrocarbon refrigerant handling accreditation to legally install, service, or decommission these systems.
