Description

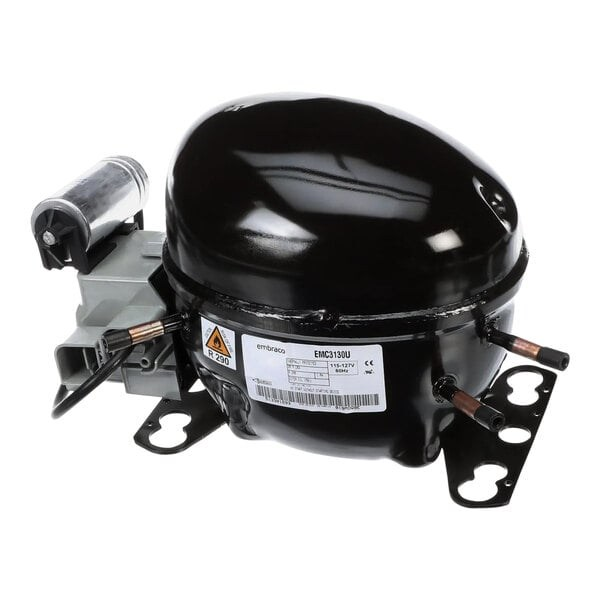

Embraco EMC3130U Low Temp Compressor (1/4 HP, R290)
When a commercial under-counter freezer or display cabinet goes down, your client is racing against the clock before expensive stock is ruined. You need a replacement that drops in easily, pulls down fast, and runs reliably. The Embraco EMC3130U is a heavy-duty, 1/4 HP Low Back Pressure (LBP) compressor designed specifically for demanding low-temp applications running on highly efficient R290 natural refrigerant.
Key Features & Trade Benefits
- R290 Optimized: Engineered explicitly for R290 (Propane), offering brilliant thermodynamic efficiency, much lower energy consumption, and an ultra-low Global Warming Potential (GWP).
- Low Temp Powerhouse: Delivering consistent and reliable cooling capacity at deep freezing temperatures, making it the perfect muscle for commercial display freezers, under-bench freezer cabinets, and ice cream tubs.
- EMC Series Efficiency: The EMC platform represents a highly advanced generation of Embraco compressors, designed to minimize energy usage while maximizing acoustic performance (quiet operation).
- Compact & Robust: Maintains a highly compact footprint for tight commercial cabinet spaces without sacrificing the rugged durability needed for non-stop hospitality environments.
Why This Compressor Matters on the Job
Aussie hospitality environments are notoriously brutal on refrigeration gear. When a kitchen hits 40°C in the middle of a summer lunch rush, the compressor underneath the prep bench cops an absolute beating. The EMC3130U is built to handle heavy duty cycles, ensuring fast recovery times after frequent door openings, maintaining deep freezing temperatures when standard compressors would overheat and trip.
Tradie Pro Tip for R290:Because R290 is a highly flammable hydrocarbon (A3 safety class), strict safe-handling procedures are legally required. Always ensure the area is heavily ventilated, purge the system thoroughly with dry oxygen-free nitrogen (OFN) before unbrazing, and never use a naked flame if there is any residual gas in the circuit. Accurate weigh-in of the small charge is critical.
What’s Included
- 1 × Embraco EMC3130U Low Temp Compressor (1/4 HP, R290)
- Note: Starting components/relays supplied as per factory Embraco packaging standards.
Specifications
| Attribute | Details |
|---|---|
| Brand & Model | Embraco EMC3130U |
| Application | LBP (Low Back Pressure) / Low Temp |
| Refrigerant | R290 (Propane) |
| Nominal Horsepower | 1/4 HP |
| Cooling Capacity (-25°C) | Approx. 310 Watts |
| Displacement | 6.10 cm³ |
| Power Supply | 220-240 V 50 Hz |
| Weight | Approx. 7.5 kg |
Frequently Asked Questions (FAQ)
Can I use this R290 compressor to replace a dead R404A or R134a compressor?
No. You cannot drop an R290 compressor into a system designed for legacy HFCs like R404A or R134a. R290 systems have specific safety designs, different capillary tube/TXV sizing, and distinct electrical component safety ratings (non-sparking) to handle flammable refrigerants. Always replace like-for-like.
What type of oil does the Embraco EMC3130U use?
Embraco R290 compressors typically come pre-charged with Polyol Ester (POE) oil. POE oil is highly hygroscopic, so minimize the time the system is open to the atmosphere. Always refer to the exact manufacturer data plate on the compressor shell before adding or replacing oil.
Is special licensing required to work with R290 compressors?
While R290 is not ozone-depleting and is exempt from synthetic greenhouse gas restrictions, it is a highly flammable (A3) hydrocarbon. In Australia, technicians should hold a specific hydrocarbon refrigerant handling accreditation to legally and safely repair or commission these systems.
