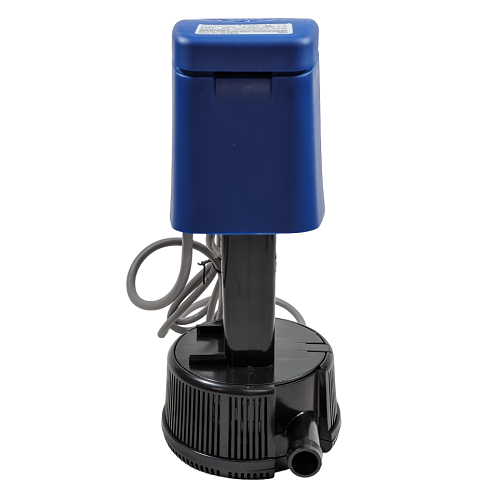

Coolbreeze SuperPump SP380 Evaporative Cooler Pump

The Coolbreeze SuperPump SP380 is a solid replacement pump for evaporative coolers. It’s built to keep your system humming, especially during those long Aussie summers where these units work overtime.

This pump delivers consistent water flow, ensuring your pads stay properly saturated for efficient cooling. Swapping out a tired pump can make a big difference to your cooler's performance.

Best For

• Evaporative Cooler Maintenance & Repair
• Replacing worn or faulty cooler pumps
• HVAC service technicians and competent DIY owners

Compatibility

This SuperPump SP380 is designed as a universal replacement for many evaporative cooler models. It features a quick-fit assembly bracket, making it adaptable to various units.

If you're running a different model, check fittings and specs before ordering.

Features

• Integrated filter basket to keep debris out of the pump mechanism.
• Hi-Flo Motor Cooling Venturi for efficient motor operation and extended lifespan.
• Quick fit assembly bracket designed to suit specific evaporative cooler models.
• Long life ball bearings for reliable, continuous performance.
• Durable stainless steel shaft built to withstand constant water exposure.
• Continuous S1 duty rating, suitable for non-stop operation during peak cooling periods.
• Standard 240V 50 Hz electrical input for common Australian power supplies.
• EMC approved to AS/NZS CISPR14:2010 and tested to AS/NZS 60335.1:2011 safety requirements.

Technical Specifications

What's in the Box

• 1 x Coolbreeze SuperPump SP380

Using It on the Job

1. Isolate power to the evaporative cooler at the mains and confirm zero voltage with a tester. Always lock out the breaker if necessary.
2. Drain the cooler's reservoir completely to avoid spills and allow for access.
3. Disconnect the old pump's wiring and water lines. Carefully remove the old pump from its mounting bracket.
4. Install the new SP380 pump, ensuring the quick-fit assembly bracket secures it properly. Reconnect water lines and wiring as per the cooler's manufacturer's instructions.
5. Refill the reservoir and restore power. Test for proper water flow over the pads and thoroughly check all connections for leaks before leaving the site.

Limitations & Safety Notes

• Always isolate power before attempting any work on electrical components, including pump replacement.
• Ensure correct voltage (240V, 50Hz) supply for operation; incorrect voltage can damage the pump.
• Regularly clean the integrated filter basket to prevent blockages and maintain optimal water flow.
• Follow Australian standards and Safe Work guidance for electrical appliance maintenance and repair.

Tradie Pro Tip

Before you re-fill the reservoir and power up, double-check that filter basket is seated right. A small leaf or bit of crud can slow your new pump down straight away, and you'll be back on the roof for a warranty call.

Pair With

Pair with new evaporative cooler filter pads and a quality coil cleaner for a full maintenance service.
