Coolbreeze QM Wall Controller

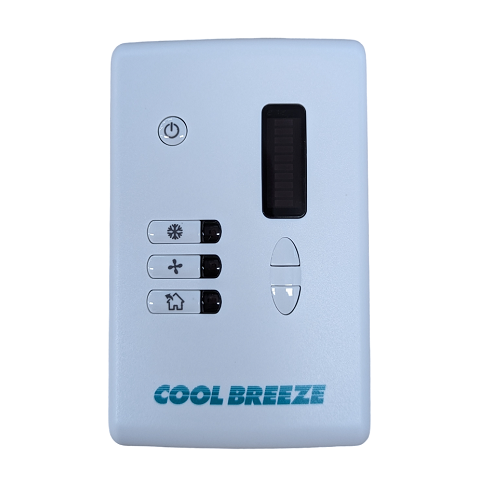

This Coolbreeze QM Wall Controller (CBSP3220) is your direct replacement for managing Coolbreeze evaporative cooling systems. It’s engineered to connect seamlessly with MRU and ECRU control boards, ensuring your unit responds correctly to user input.

Keeping your evaporative cooler's brain ticking over is crucial, especially when the Aussie summer hits its peak. A dead or faulty wall controller can quickly turn a comfortable home into a sauna, so a reliable replacement like this is essential.

Best For

• HVAC service technicians maintaining Coolbreeze evaporative coolers.
• Installers needing to replace a faulty or damaged controller on existing systems.
• Competent DIY homeowners with electrical knowledge servicing their own Coolbreeze evaporative cooler.

Compatibility

This Coolbreeze QM Wall Controller is specifically designed to suit Coolbreeze evaporative cooling systems that utilise MRU and ECRU control boards. It functions as a genuine direct replacement, ensuring full functionality with compatible units. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Coolbreeze replacement part, ensuring proper fit and function.
• QM Wall Controller model for intuitive system control.
• Direct compatibility with Coolbreeze MRU and ECRU control boards.
• Part/Code: CBSP3220 (CoolBreeze PN: SP3220) for easy identification.

What's in the Box

• 1 x Coolbreeze QM Wall Controller (CBSP3220)

Using It on the Job

1. Power Isolation: Always start by isolating power to the evaporative cooler at the main switchboard. Verify zero voltage with a multimeter before touching any wiring.
2. Old Controller Removal: Carefully unmount the old controller. Document the wiring configuration, either by taking a clear photo or drawing a simple diagram, before disconnecting wires.
3. New Controller Connection: Connect the new Coolbreeze CBSP3220 controller's wiring to your system, strictly following the manufacturer's wiring diagram and your documentation from the previous step.
4. Mounting: Securely mount the new wall controller to the wall, ensuring all connections are snug and protected.
5. System Test: Restore power to the unit. Test all functions of the controller – fan speeds, pump operation, mode selection, and timer settings – to confirm correct installation.

Limitations & Safety Notes

• Installation involves electrical work. This should only be performed by a licenced electrician or competent person adhering to AS/NZS wiring rules and local regulations.
• Ensure the specific Coolbreeze model and its control board (MRU or ECRU) are compatible with this CBSP3220 controller before purchase.
• Always verify power isolation and lockout procedures before commencing any work on electrical components.
• Refer to your Coolbreeze unit's service manual for specific wiring diagrams and troubleshooting steps.

Tradie Pro Tip: Before you unhook the old controller, always snap a clear photo of the wiring connections. It's a lifesaver when you're hooking up the new one, especially if the original installer didn't label anything clearly.

Pair With

Pair with other Coolbreeze control boards or Coolbreeze pumps if you're undertaking a larger evaporative cooler service. A quality multimeter is also essential for checking connections and fault finding.
