Coolbreeze O-Ring for Electric Drain Valve

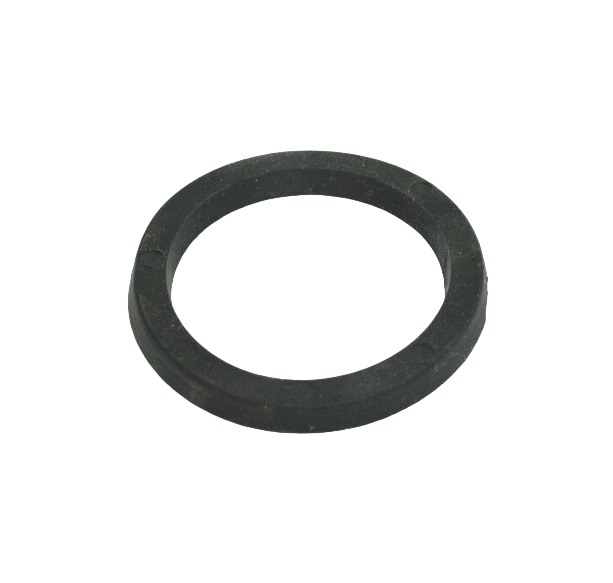

This Coolbreeze O-Ring (CBSP2066C) is the genuine replacement seal for your Coolbreeze electric drain valve, ensuring a leak-free operation for your evaporative cooler. Swapping out a worn O-ring is a simple fix that saves a lot of hassle and water damage, especially during a hot Australian summer when these units work overtime.

Regular maintenance, including checking these seals, is key to keeping evaporative coolers running efficiently without those annoying drips.

Compatibility

This O-ring is specifically designed for Coolbreeze electric drain valves, matching the CoolBreeze PN: SP2066. It's an exact fit, so you can trust it to seal correctly without modification. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Coolbreeze replacement part for reliable performance.
• Designed for Coolbreeze Electric Drain Valve (PN: SP2066).
• Helps maintain a watertight seal to prevent leaks and water wastage.
• Durable material built to withstand typical evaporative cooler operating conditions.

What's in the Box

• One (1) Coolbreeze O-Ring (CBSP2066C)

Using It on the Job

1. Isolate Power: Always ensure the evaporative cooler's main power is switched off at the circuit breaker and locked out before commencing any work.
2. Drain Water: Fully drain the cooler's water reservoir.
3. Access Drain Valve: Carefully remove the old drain valve assembly, noting how it's connected.
4. Replace O-Ring: Remove the old, worn O-ring. Clean the groove thoroughly before installing the new CBSP2066C O-ring, ensuring it sits flat and is not twisted.
5. Reassemble & Test: Reinstall the drain valve assembly, fill the cooler, and run a short cycle to check for leaks.
6. Final Check: Once confirmed leak-free, restore power to the unit.

Limitations & Safety Notes

• This O-ring is only for Coolbreeze electric drain valve model SP2066.
• Always isolate electrical power to the unit before performing any maintenance or replacement.
• Ensure the O-ring is correctly seated and free of twists to prevent leaks after installation.
• Follow all manufacturer's instructions and Safe Work guidance when servicing evaporative coolers.

Tradie Pro Tip

Before fitting a new O-ring, put a tiny dab of silicone grease on it. It helps the O-ring seat properly without pinching and makes future removal easier, stopping it from sticking to the plastic.

Pair With

Pair with other evaporative cooler spares like float valves or control boards, or grab some coil cleaner to maintain overall unit performance.
