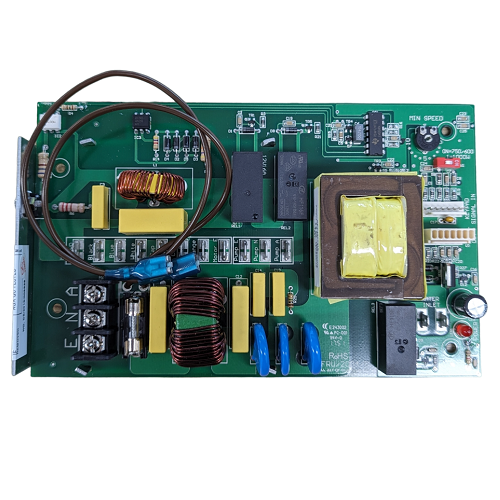

Coolbreeze L/R Circuit Board

This Coolbreeze L/R Circuit Board (CBSP3510) is a direct replacement part designed to keep your Coolbreeze evaporative cooler running smoothly. It's an essential component for technicians and competent homeowners looking to maintain or repair their evaporative cooling systems.

A faulty circuit board can be a real headache, especially when the Australian summer heat kicks in – this genuine replacement gets you back in action with minimal downtime.

Best For

• Evaporative cooler service and repair.
• HVAC technicians working on Coolbreeze systems.
• Competent DIY owners maintaining Coolbreeze evaporative coolers.

Compatibility

This circuit board is specifically designed for Coolbreeze evaporative coolers, compatible with R-Series and L-Series wall controllers. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Coolbreeze replacement part.
• Designed as an L/R control board component.
• Suits Coolbreeze R-Series wall controllers.
• Also suits Coolbreeze L-Series wall controllers.
• Direct replacement for CoolBreeze Part Number: SP3510.

What's in the Box

• 1x Coolbreeze L/R Circuit Board (CBSP3510)

Using It on the Job

1. Always isolate power to the evaporative cooler at the main switchboard before starting any work.
2. Access the existing control board enclosure carefully, ensuring no water ingress.
3. Photograph existing wiring connections before disconnecting to aid reassembly.
4. Carefully disconnect all wiring from the old circuit board.
5. Install the new CBSP3510 board into the enclosure, securing it as per the original.
6. Reconnect all wiring securely, matching your photographed reference.
7. Restore power and test all functions of the evaporative cooler to confirm correct operation.

Limitations & Safety Notes

• Always isolate electrical power at the source before attempting any installation or maintenance on control boards.
• This part is only compatible with the specified Coolbreeze R-Series and L-Series systems.
• Refer to your Coolbreeze evaporative cooler's service manual for specific installation instructions.
• Ensure all wiring connections are tight and correct before restoring power to avoid electrical faults.

Tradie Pro Tip

Before you swap out the board, always double-check all wiring connections, especially for common issues like loose terminals or corroded contacts – sometimes it's a simpler fix than replacing the whole board.

Pair With

Pair with other Coolbreeze spares like new filter pads or a float valve to ensure your evaporative cooler is running at its best, or consider a new Coolbreeze wall controller if yours is also faulty.
