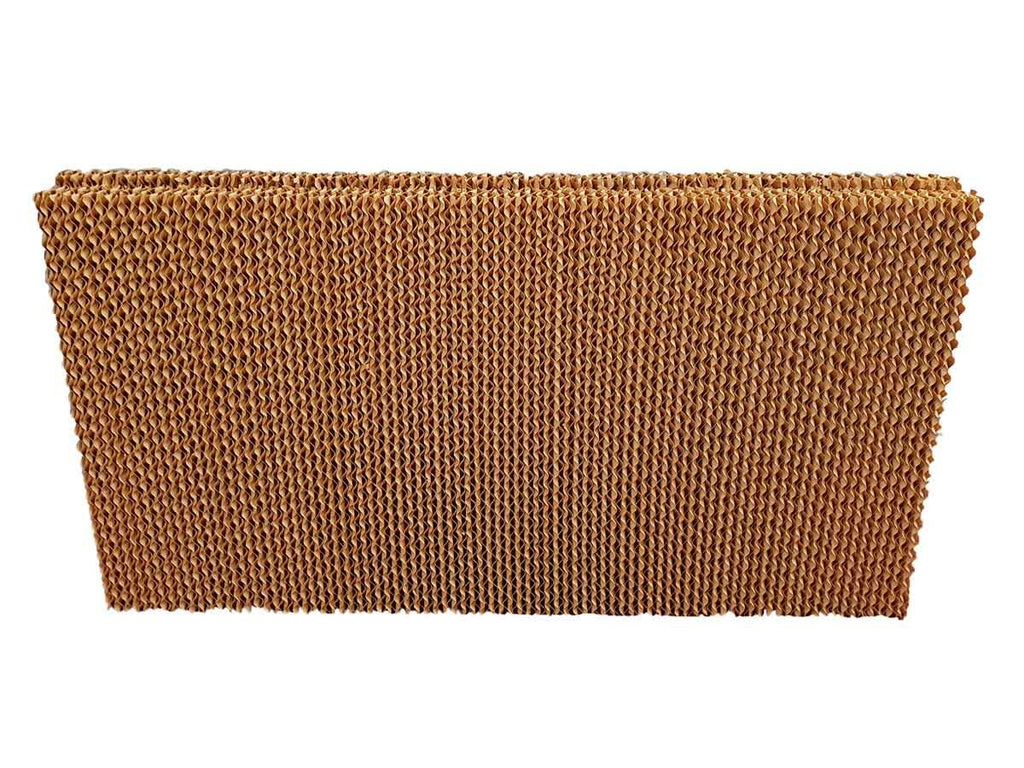

Coolbreeze FILCEL Pads for Contour EX165

These genuine FILCEL replacement pads are designed specifically for your Coolbreeze Contour EX165 evaporative cooler. Swapping out old pads is a straightforward job that keeps your system running clean and efficient, especially during the harsh Australian summer.

Properly maintained pads mean better airflow and cleaner air, stopping your unit from working overtime and saving you a few bucks on the power bill.

Best For

• HVAC technicians performing routine evaporative cooler maintenance.
• Homeowners looking to replace worn or dirty pads on their Coolbreeze Contour EX165.
• General upkeep to ensure optimal evaporative cooling performance.

Compatibility

These FILCEL pads are specifically engineered to fit the Coolbreeze Contour EX165 evaporative cooler model. They feature the correct channel and slit design for proper water distribution and air flow.

If you're running a different model, check fittings and specs before ordering.

Features

• Genuine FILCEL™ Australian owned & made pads for reliable performance.
• Pre-treated with antibacterial agents to kill 99% of airborne germs, viruses, bacteria, mould, fungus, and spores.
• Includes a separate antibacterial tank treatment for added system hygiene.
• Designed for straightforward installation, ready to fit the Contour EX165.
• Built with appropriate channel and slit for efficient water distribution.

Technical Specifications

What's in the Box

• 1 x 4-Pack of Coolbreeze FILCEL Filter Pads for Contour EX165 (includes one front pad sized 800 x 555 x 80mm).
• Separate antibacterial tank treatment.

Using It on the Job

1. Isolate Power: Always begin by switching off and locking out power to the evaporative cooler at the mains for safety.
2. Remove Panels: Carefully unclip or unscrew the cooler's side panels to access the old filter pads.
3. Extract Old Pads: Remove the worn-out pads. Note their orientation and the position of any fixing pins or clips you'll need to reuse.
4. Clean Housing: Take the opportunity to thoroughly clean the inside of the cooler housing and the water reservoir to remove sediment and biological growth.
5. Install New Pads: Slide the new FILCEL pads into place, ensuring the correct channel and slit alignment. Re-attach any fixing pins or clips.
6. Add Tank Treatment: Follow the instructions for the included antibacterial tank treatment and add it to the clean water reservoir.
7. Reassemble & Test: Replace the side panels, restore power, and run the cooler to check for proper operation and water distribution over the new pads.

Limitations & Safety Notes

• These pads are designed specifically for the Coolbreeze Contour EX165 model; they may not fit other units correctly.
• Always isolate electrical power before opening or servicing any evaporative cooler.
• Ensure proper disposal of old pads and any cleaning chemicals according to local regulations.
• Strips (water distribution panels) are not included; reuse your existing set.

Tradie Pro Tip

Before you pull the old pads out, snap a quick photo with your phone. It'll save you a head-scratch when you're trying to figure out which pad goes where, especially if they're different sizes or orientations.

Pair With

Keep your whole system running smooth. Consider pairing these pads with our range of evaporative cooler pumps or other Coolbreeze spare parts for complete maintenance.
