C&D Self Piercing Saddle

Overview

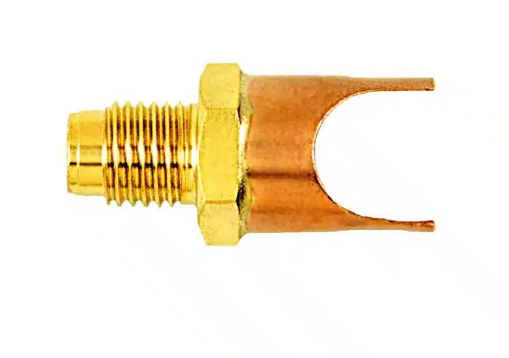

The C&D Self Piercing Saddle, specifically the M-Series, stands as the original and leading braze-on, self-piercing copper saddle valve in the HVAC industry. Engineered for superior performance and reliability, this valve allows HVAC technicians to create secure access points with unparalleled ease and efficiency.

Designed to simplify installation on existing charged lines, the process involves brazing the copper saddle portion onto the line. Subsequently, a robust steel pin, integrated with a valve core, penetrates the line and is firmly locked into position by merely tightening the cap. This innovative mechanism ensures a leak-free and durable connection for various service applications.

Why It Matters

In the fast-paced world of HVAC service and installation, the ability to quickly and securely tap into refrigerant lines without significant system disruption is critical. The C&D Self Piercing Saddle provides a crucial advantage by enabling technicians to add service ports, pressure gauges, or charging lines on live systems. This not only saves valuable time but also minimizes refrigerant loss and operational downtime, making it an indispensable tool for efficient and professional HVAC maintenance.

What's Included

Available Options:

• CD5512: 1/2″ Self Piercing Saddle – Pack of 4
• CD5514: 1/4″ Braze On Piercing Saddle – Pack of 6
• CD5518: 1-1/8″ Self Piercing Saddle – Pack of 2
• CD5534: 3/4″ Self Piercing Saddle – Pack of 2
• CD5538: 3/8″ Self Piercing Saddle – Pack of 6
• CD5558: 5/8″ Self Piercing Saddle – Pack of 3

Features & Benefits

• ✓ First and Best Braze-On Design: As the original and leading self-piercing copper saddle valve, it offers unmatched reliability and a permanent, leak-free connection compared to temporary clamp-on solutions.
• ✓ Effortless Self-Piercing Mechanism: The integrated steel pin and valve core penetrate the line seamlessly after brazing, locking securely in place with a simple cap tightening, significantly reducing installation time and effort.
• ✓ Easy Installation on Charged Lines: Designed for direct application onto live systems, this feature minimizes system downtime and prevents refrigerant loss, making it ideal for rapid service and diagnostic tasks.
• ✓ Durable Copper Construction: Crafted from high-quality copper, the saddle valve ensures excellent corrosion resistance and compatibility with standard HVAC copper tubing, guaranteeing extended product lifespan.
• ✓ High Maximum Working Pressure: Rated for an impressive 700 psi, this valve is robust enough for a wide range of high-pressure refrigeration and air conditioning applications, ensuring safety and performance.
• ✓ Proudly Made in USA: Manufactured in the USA, ensuring high standards of quality and craftsmanship.

Applications

• Adding temporary or permanent pressure gauge ports to HVAC and refrigeration systems.
• Creating convenient access points for refrigerant charging, recovery, or evacuating procedures.
• Installing dedicated service ports on existing refrigeration and air conditioning lines.
• Performing diagnostic checks and system analysis on operational HVAC units.
• Suitable for both residential and light commercial HVAC installations where quick line access is required.

Tradie Pro Tip

When brazing the C&D Self Piercing Saddle, always ensure the line is meticulously cleaned and properly fluxed for optimal adhesion and a strong, leak-free joint. Use a high-quality brazing alloy suitable for copper and maintain a neutral flame to prevent overheating the tubing. Allow the joint to cool completely before tightening the cap and activating the piercing mechanism to prevent stress on the newly formed braze and ensure a lasting seal.

Pair With

• HVAC Brazing & Soldering Kits: For secure and leak-proof installation of the saddle valve.
• Refrigerant Recovery Units: Essential for responsible refrigerant handling during service.
• Manifold Gauge Sets: To monitor system pressures through the newly created access point.

Keep Your Space Clean / Call to Action

Optimize your HVAC service capabilities with the reliability and efficiency of the C&D Self Piercing Saddle. Ensure your installations are equipped with the industry's most trusted components for secure and long-lasting access points. Explore our comprehensive selection of HVAC tools and accessories at HVAC Shop today to enhance your toolkit and streamline your workflow.
