Brivis Tytronics Control Board HCDS124-1

This Brivis Tytronics Control Board HCDS124-1 is a genuine replacement part designed to get your Brivis ducted gas heater back up and running. It's crucial for the proper sequencing and safe operation of your heating system.

Anyone who's spent time troubleshooting a ducted gas heater knows a faulty control board can cause some real head-scratchers, from intermittent faults to complete shutdowns, especially on those older, hardworking Brivis units across an Australian winter.

Best For

• HVAC technicians performing service and repairs on Brivis ducted gas heaters.
• Qualified gas fitters and apprentices needing a reliable replacement part.
• Competent DIY owners with proper training in gas appliance maintenance.

Compatibility

This control board is specifically designed for Brivis Tytronics HCDS124-1 gas heating systems. It's identified by the Brivis Part Numbers 80024700 or B024700. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Brivis Tytronics PCB for direct fitment.
• Identified as HCDS124-1 model.

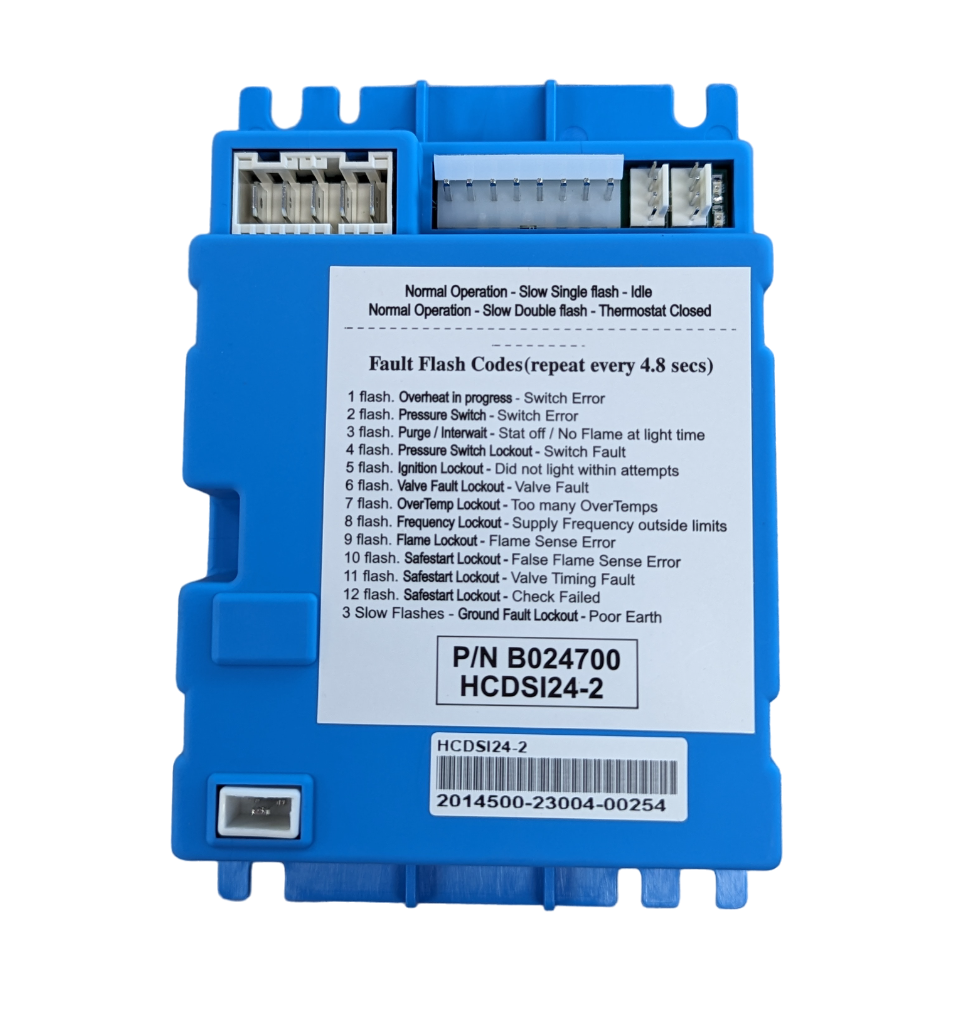

• Distinctive blue board design.
• Brivis Part Numbers: 80024700, B024700.

What's in the Box

• 1x Brivis Tytronics Control Board HCDS124-1 (BS-HCDDSI24-1).

Using It on the Job

1. Isolate Power: Always ensure all power to the heating unit is disconnected at the mains and confirm with a multimeter before commencing work.
2. Access Control Board: Locate and carefully open the access panel to the existing control board.
3. Document Connections: Take clear photos of all wiring connections to the old board before removal. Label wires if necessary.
4. Remove Old Board: Disconnect all wiring and mounting screws holding the faulty board in place.
5. Install New Board: Mount the new Brivis HCDS124-1 board securely and reconnect all wiring as per your documentation. Double-check every connection.
6. Test System: Restore power and carefully test the heating system's operation, including fan, ignition, and safety cut-outs.

Limitations & Safety Notes

• Installation and service of gas appliances should only be performed by a qualified and licensed gas fitter or HVAC technician.
• Always ensure complete power isolation and lockout/tagout procedures are followed before working on electrical components.
• Refer to the Brivis service manual for specific installation instructions and diagnostic procedures for your model.
• This board is specifically for Brivis Tytronics HCDS124-1 systems; confirm compatibility with your unit's existing part number.
• Follow all Australian standards and Safe Work guidance when servicing heating systems.

Before condemning a control board, always double-check all low-voltage connections and ensure auxiliary safeties like pressure switches and limit switches are operating correctly. Sometimes, it's a simple connection issue, not the board itself.

Pair With

Pair with other Brivis spare parts such as Brivis ignitors and sensors, Brivis pressure switches, or a new Brivis wall controller for a complete service or upgrade.
