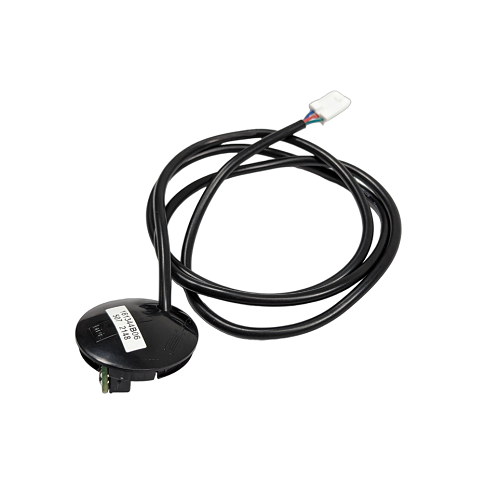

Brivis Switch Fan Sensor 820mm

This Brivis Switch Fan Sensor (820mm) is a direct replacement part designed to keep your Brivis evaporative cooling unit running smoothly. It's crucial for the control board to accurately monitor fan speed and ensure efficient airflow, especially during those long, hot Australian summers.

A faulty fan sensor can lead to erratic fan operation or complete shutdown, leaving your customers (or your own family) without relief. Swapping out a tired sensor with a genuine replacement like this one is a straightforward fix for maintaining reliable cooling performance.

Best For

• HVAC technicians servicing Brivis evaporative coolers.
• Maintenance teams for commercial or residential Brivis evaporative units.
• Competent DIY homeowners replacing a worn or faulty sensor in their Brivis evaporative cooler.

Compatibility

This Brivis Switch Fan Sensor is specifically designed to suit Brivis evaporative cooling units. It replaces Brivis part numbers 81014478 and B014478. If you're running a different model or brand, check fittings and specs before ordering.

Features

• Genuine Brivis replacement part for reliable performance.
• Standard 820mm cable length for typical Brivis evaporative units.
• Direct fit, designed to match original equipment specifications.
• Ensures accurate fan speed monitoring by the unit's control board.

What's in the Box

• 1 x Brivis Switch Fan Sensor (820mm) - Part No. BS81014478

Using It on the Job

1. Isolate Power: Always switch off and lockout power to the evaporative unit at the mains before starting any work.
2. Access Unit: Remove the cabinet panels to gain access to the fan motor and existing sensor.
3. Locate Old Sensor: Identify the current fan sensor and note its connection point to the control board or wiring harness.
4. Disconnect & Remove: Carefully disconnect the old sensor's wiring and unclip/unscrew it from its mounting location.
5. Install New Sensor: Secure the new Brivis sensor in the same position and reconnect its wiring. Ensure connections are snug.
6. Test: Reassemble the unit, restore power, and test the fan operation to confirm the sensor is working correctly.

Limitations & Safety Notes

• Always ensure power is isolated and locked out before performing electrical work.
• This sensor is specifically for Brivis evaporative units; it may not be compatible with other brands or types of HVAC equipment.
• Ensure the cable length (820mm) is suitable for your specific Brivis model to avoid stretching or kinking the wiring.
• Follow all manufacturer's instructions and Safe Work Australia guidelines when servicing HVAC equipment.

Tradie Pro Tip: Before ordering, measure the length of your existing fan sensor's cable, especially on older units. While 820mm is common, a quick check prevents a callback or a trip back to the shop.

Pair With

Pair this Brivis fan sensor with other Brivis evaporative cooler spares, such as Brivis control boards or Brivis fan motors, for comprehensive maintenance. You might also consider evaporative cooler filter pads for complete seasonal servicing.
