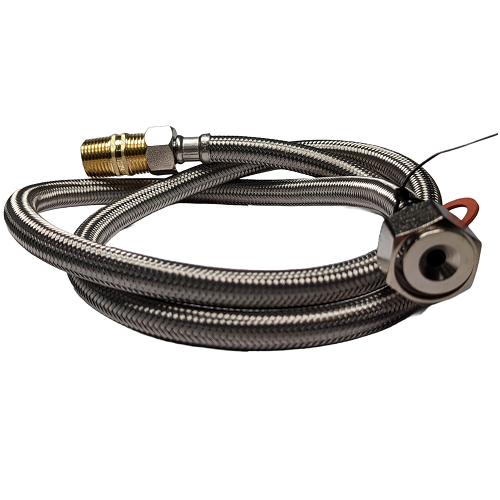

Brivis Stainless Steel Hose 1250mm

This Brivis Stainless Steel Hose is a genuine replacement part, purpose-built for ducted gas heating systems. It helps HVAC techs and competent DIY owners restore reliable gas flow and prevent costly leaks.

Anyone who's done a Brivis service knows that a tired, corroded, or kinked gas hose can lead to a call-back you don't need, especially after a long, cold winter's use. Swapping out a critical component like this ensures your repair holds up.

Best For

• Replacement in Brivis ducted gas heating systems.
• General maintenance and repair of Brivis heating units.
• HVAC technicians and licensed gas fitters.

Compatibility

This stainless steel hose is specifically designed for use with Brivis ducted gas heating systems, identified by Brivis Part Number 81008136. It's a direct fit for compatible Brivis models, ensuring proper function and safety.

If you're running a different model, check fittings and specs before ordering.

Features

• Durable Construction: Made from stainless steel for longevity and resistance to corrosion.
• Generous Length: Measures 1250mm, providing flexibility for various installations.
• Genuine Brivis Part: Ensures perfect fit and performance as per manufacturer specifications (PN: 81008136).
• Heating Specific: Engineered to withstand conditions typical of residential heating applications.

Technical Specifications

What's in the Box

• One (1) Brivis Stainless Steel Hose, 1250mm (BS81008136)

Using It on the Job

1. Isolate Gas Supply: Before starting any work, ensure the main gas supply to the heater is turned off and locked out.
2. Depressurise System: Verify that no residual gas pressure remains in the line before disconnecting the old hose.
3. Disconnect Old Hose: Carefully remove the existing hose, inspecting for any signs of corrosion, kinks, or leaks that led to its replacement.
4. Install New Hose: Apply appropriate thread sealant to the fittings and connect the new stainless steel hose, ensuring all connections are properly torqued to manufacturer specifications.
5. Leak Check: Once installed, slowly restore the gas supply and immediately perform a thorough leak check using an approved gas leak detection fluid on all connections.
6. Test Operation: With no leaks detected, restore full gas supply and test the heater's operation to ensure correct function.

Limitations & Safety Notes

• Installation and repair of gas appliances must be performed by a qualified and licensed gas fitter in Australia.
• This hose is specifically designed for Brivis heating systems; do not attempt to use it on non-compatible units or for different applications.
• Always use appropriate personal protective equipment (PPE) when working with gas appliances.
• Never use open flames for leak detection. Always use approved leak detection fluid.
• Follow all Australian standards and Safe Work guidance related to gas appliance servicing.

Tradie Pro Tip

Before installing this new hose, take a moment to clean the mating surfaces of the gas valve and burner manifold. A clean surface with fresh thread sealant makes all the difference for a leak-free connection.

Pair With

Pair with quality gas-rated thread sealant, gas leak detector spray, and a reliable set of spanners from HVAC Shop's Universal Spares for a complete and safe gas heater service.
