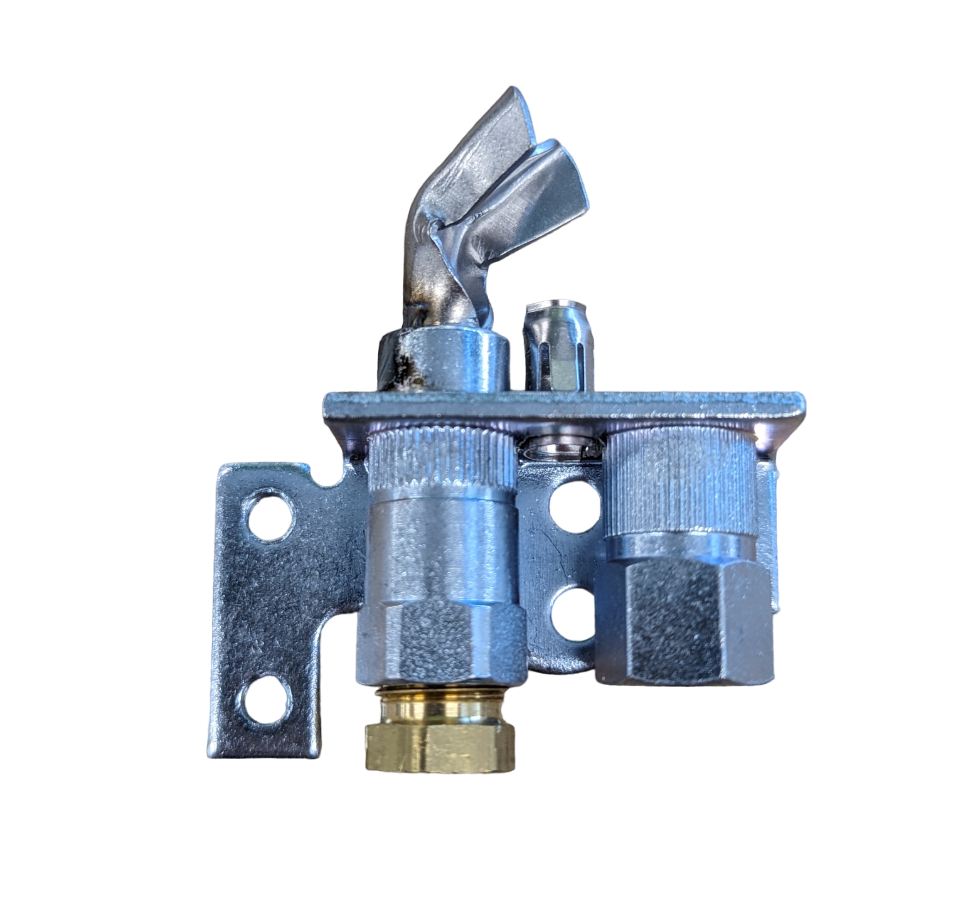

Brivis Pilot Burner Assembly 0.46mm NG

This Brivis pilot burner assembly is the core of reliable ignition for your ducted gas heater. It's purpose-built for Brivis units running on natural gas (NG), ensuring your system fires up safely and consistently.

Getting these swapped out on a cold morning before the homeowner gets up is key to keeping the peace and getting the system back online quickly.

Best For

• HVAC service technicians working on Brivis gas heaters
• Licensed gas fitters performing heater repairs or maintenance
• Competent DIY owners undertaking authorised repairs on their own Brivis ducted gas heater

Compatibility

This pilot burner assembly is designed specifically for Brivis gas heaters. It's set up for Natural Gas (NG) fuel and features a 0.46mm jet. It directly replaces Brivis Part Numbers B000156 and 80000156, and cross-references with Honeywell Part Numbers Q314A9015B and Q314U. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Brivis spare part for exact fit and performance in compatible units.
• Pre-set for Natural Gas (NG) systems, ready for straightforward installation.
• Features a 0.46mm pilot jet for precise flame delivery and reliable ignition.
• Direct replacement for common Brivis PN: B000156, 80000156.
• Cross-references with Honeywell PN: Q314A9015B, Q314U for broad compatibility.

What's in the Box

• 1x Brivis Pilot Burner Assembly (BS80000156), configured for Natural Gas (NG) with a 0.46mm jet.

Using It on the Job

1. Always isolate power and gas supply to the heater and perform a lockout procedure before starting any work.
2. Carefully disconnect the existing pilot burner assembly, noting the orientation and connections for the gas line and ignition lead.
3. Install the new Brivis pilot burner, ensuring all connections are secure and gas lines are properly tightened without overtightening.
4. Check for gas leaks at all new and disturbed connections using an approved leak detection solution before restoring gas supply.
5. Restore power and gas, then test the heater's ignition sequence multiple times to confirm reliable and consistent startup.
6. Verify proper flame sensing and operation, ensuring the main burner ignites smoothly from the pilot flame.

Limitations & Safety Notes

• This assembly is specifically for Natural Gas (NG) systems; it is not suitable for use with LPG (Liquefied Petroleum Gas).
• Installation and servicing of gas appliances must only be performed by a licensed gas fitter in accordance with AS/NZS 5601.1 and local regulations.
• Always conduct a thorough leak check after any gas connection work to prevent hazardous situations.
• Ensure the 0.46mm jet size matches your heater's specifications for optimal and safe operation.
• Always follow manufacturer's instructions for your specific Brivis heater model and adhere to Safe Work Australia guidelines.

Before you even unpackage the new pilot burner, always give the old one a good clean first. Sometimes a bit of dust, corrosion, or a spider web is all it takes to cause ignition issues. Only replace the part if cleaning doesn't fix it, saving you a new part and the customer a few bucks.

Pair With

For complete gas heater maintenance, pair this pilot burner with new Brivis Ignitors & Sensors and a reliable gas leak detector for peace of mind on every service call.
