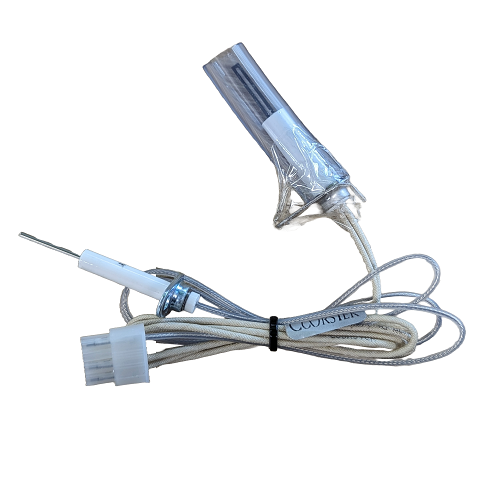

Brivis Igniter Flame Sensor Assembly 800mm

This Brivis Igniter Flame Sensor Assembly (BSB015379) is a direct replacement part essential for the safe and efficient operation of your ducted gas heater. It handles both ignition and flame sensing, making sure your unit lights up properly and shuts down safely if the flame drops out.

When a ducted gas heater plays up, often the igniter or flame sensor is the first place to check, especially after a few seasons of hard work in Aussie conditions.

Best For

• HVAC service technicians
• Licensed gasfitters
• Competent homeowners undertaking gas-safe diagnostics and repairs

Compatibility

This igniter flame sensor is a genuine Brivis replacement part, specifically designed for various Brivis ducted gas heater models. It matches Brivis Part Numbers 80015379 and B015379. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Brivis Part: Ensures perfect fit and reliable performance as intended by the manufacturer.
• Dual Function: Combines the igniter and flame sensor into one assembly for simplified replacement.
• 800mm Length: Standard length for compatible Brivis models, offering flexibility for connection.
• Reliable Ignition: Designed to provide consistent spark for quick and efficient burner light-up.
• Flame Safety: Accurately senses the presence of a flame, preventing uncombusted gas release.

What's in the Box

• 1 x Brivis Igniter Flame Sensor Assembly (BSB015379) - 800mm length

Using It on the Job

1. Isolate Power and Gas: Always start by turning off all electrical power to the unit and closing the gas supply valve. Verify zero energy state with a multimeter.
2. Access Burner Compartment: Carefully remove the access panels to expose the burner and existing igniter/sensor.
3. Disconnect & Remove: Disconnect the electrical leads and carefully unmount the old igniter flame sensor. Note its orientation and position.
4. Install New Part: Mount the new Brivis assembly in the exact same position and re-connect the electrical leads securely. Ensure no wires are pinched.
5. Test & Reassemble: Restore gas and power, then initiate a heating cycle. Observe for proper ignition and flame sensing operation. Check for any gas leaks if disturbing gas connections (though typically not needed for this part). Reinstall panels once confirmed working safely.

Limitations & Safety Notes

• This part is for Brivis ducted gas heaters only. Verify compatibility with your specific model using the provided Brivis part numbers.
• Installation and servicing of gas appliances must only be performed by a licensed gasfitter or qualified HVAC technician in accordance with Australian standards.
• Always isolate electrical power and shut off the gas supply before commencing any work on heating appliances.
• Ensure all connections are secure and wiring is correctly routed to prevent damage or hazardous conditions.

When troubleshooting ignition issues, don't just replace the sensor. Give the original one a quick clean with fine emery paper first – sometimes a little carbon buildup is all it takes to cause a flame failure fault. But if that doesn't work, this genuine Brivis replacement is the next step.

Pair With

Pair with a reliable multimeter for electrical testing and a gas leak detector for safety checks. Consider a new set of Brivis control boards if your diagnostics point to wider system issues.
