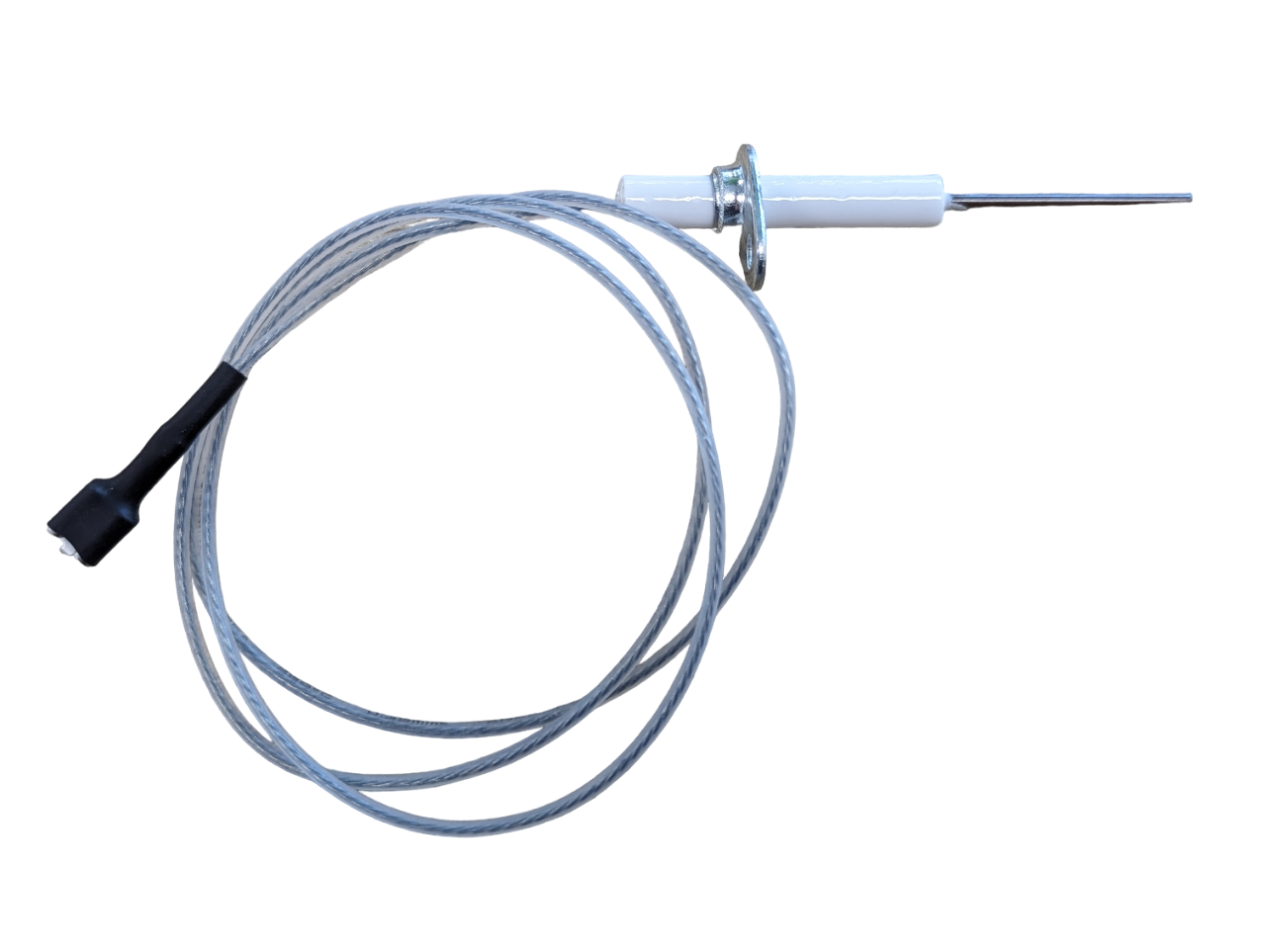

Brivis HX Series Gas Heater Igniter Flame Sensor

This Brivis Igniter Flame Sensor (BS80021026) is the genuine replacement part for HX series gas ducted heaters, keeping those cold Australian winters at bay. A faulty igniter or sensor is one of the most common callouts we see for 'no heat' issues, especially after the unit has been sitting idle for months.

Swapping this out can get your customer's heating back online quickly and reliably, preventing uncomfortable downtime.

Best For

HVAC service technicians, licensed gasfitters, and competent home owners maintaining their Brivis HX series gas ducted heater.

Compatibility

This igniter flame sensor is specifically designed for Brivis HX series gas ducted heaters. It is a direct replacement for Brivis part numbers 80021026 and B021026. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Brivis replacement part for guaranteed fit and performance.
• Combines igniter and flame sensor functions into one unit for simpler replacement.
• Designed to restore reliable ignition and flame proving on Brivis HX series heaters.
• Robust construction suitable for the typical operating conditions of a ducted gas heater.

What's in the Box

• 1 x Brivis HX Series Igniter Flame Sensor (BS80021026)

Using It on the Job

1. Always isolate power to the ducted heater at the main switchboard and follow lockout/tagout procedures.
2. Shut off the gas supply to the appliance before commencing any work.
3. Carefully disconnect the wiring from the old igniter/sensor. Note its orientation and connection points.
4. Remove the old igniter/sensor and install the new unit, ensuring it's seated correctly and secured.
5. Reconnect wiring exactly as it was removed. Double-check all connections.
6. Restore gas and power, then test the heater's ignition sequence and flame proving circuit thoroughly.

Limitations & Safety Notes

• This part is only for use with Brivis HX series gas ducted heaters as specified.
• Installation and servicing of gas appliances must be performed by a licensed gasfitter in accordance with Australian standards.
• Always follow manufacturer's installation instructions and local gas regulations.
• Ensure proper combustion analysis is performed after any ignition component replacement to confirm safe and efficient operation.

Tradie Pro Tip

"When you're swapping one of these out, take a clear photo of the wiring before you disconnect anything. It saves a lot of head-scratching trying to figure out which wire goes where, especially on a tight rooftop job or in a dark ceiling space."

Pair With

Pair with a quality manometer for checking gas pressures and a digital multimeter for diagnosing electrical faults. You'll also find relevant Brivis control boards and gas valves in our gas heating spares range.
