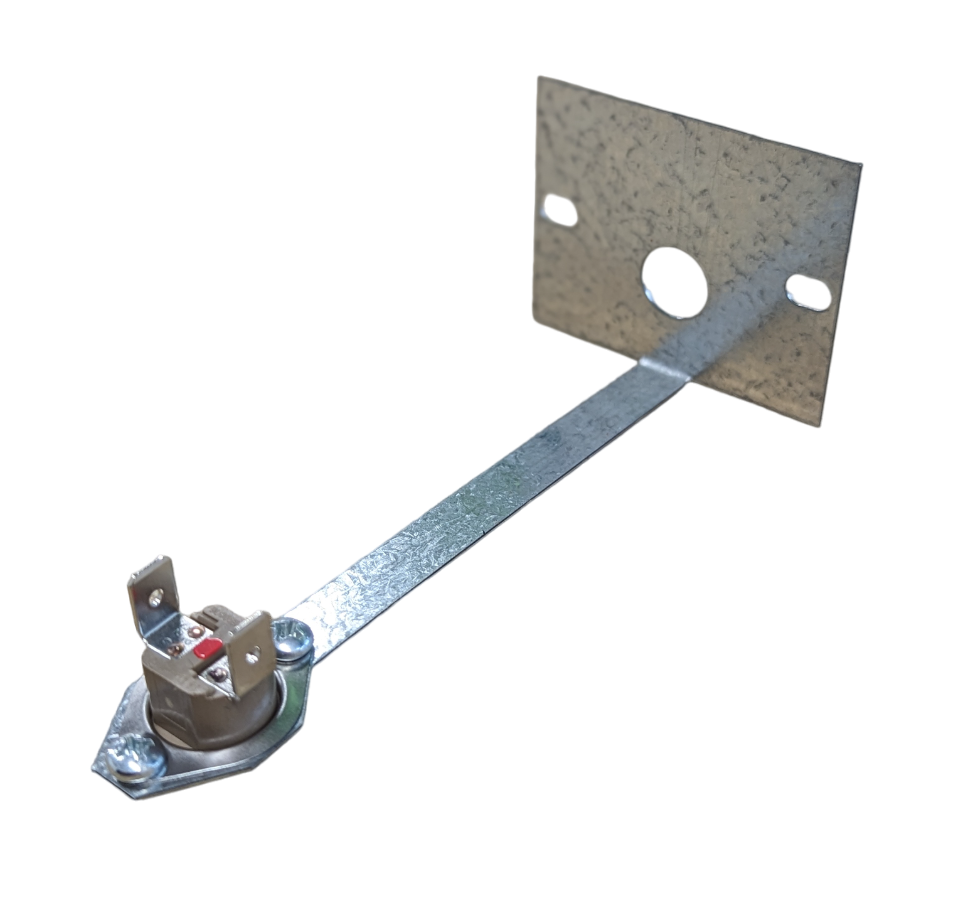

Brivis Heater Overheat Switch 90C Long Bracket

This Brivis 90C Overheat Switch is a direct replacement for faulty units in Brivis ducted gas heaters. It's a critical safety component, designed to shut down the burner if the heat exchanger gets too hot, preventing damage and potential hazards. Running calls in peak summer or winter, you often find these older switches corroded or sticking, so having a genuine spare on hand saves a lot of hassle.

Keeping your Brivis heater running safely and efficiently means using the right parts. This genuine Brivis switch ensures your system's protection mechanism is fully functional, giving peace of mind for both you and your customers.

Best For

• HVAC service technicians replacing worn Brivis heater components.
• Apprentices learning ducted gas heater maintenance.
• Competent DIY homeowners maintaining their Brivis ducted gas heating system.

Compatibility

This overheat switch is specifically designed for Brivis ducted gas heating systems that use a 90C switch with a 116mm long mounting bracket. It matches Brivis Part Numbers 80010744 and B010744. If you're running a different model, check fittings and specs before ordering.

Features

• 90°C Cut-Out: Precisely calibrated to trip at 90 degrees Celsius, protecting your heat exchanger from overtemperature conditions.
• Long Bracket Design: Features a 116mm long bracket, ensuring correct fitment and secure mounting in specified Brivis heater models.
• Genuine Brivis Part: Manufactured to Brivis's original specifications, guaranteeing reliability and direct interchangeability.
• Essential Safety Component: Designed to interrupt the burner circuit, preventing serious damage to the heater and potential hazards.

Technical Specifications

What's in the Box

• 1 x Brivis Overheat Switch 90C with Long Bracket (BS80010744)

Using It on the Job

1. Isolate Power: Always begin by switching off mains power to the Brivis heater at the circuit breaker and isolating the gas supply. Confirm no power with a suitable meter.
2. Access Switch: Carefully open the heater's service panel to locate the existing overheat switch. Note its mounting position and wiring connections.
3. Remove Old Switch: Disconnect the electrical leads and carefully unmount the old switch. Pay attention to how the bracket is secured.
4. Install New Switch: Mount the new Brivis Overheat Switch (BS80010744) using its 116mm long bracket in the exact same position. Reconnect the electrical leads securely.
5. Test Operation: Restore power and gas. Follow the manufacturer's procedures to test the heater's operation and confirm the new switch allows normal function without nuisance tripping.

Limitations & Safety Notes

• This switch is designed for 90°C applications only. Using it in systems requiring a different temperature cut-out may lead to safety issues or improper operation.
• Always ensure mains power and gas supply are isolated before attempting any work on ducted gas heating systems.
• Installation should be performed by a licensed gasfitter or qualified HVAC technician in accordance with Australian standards and local regulations.
• If the overheat switch has tripped, investigate and rectify the underlying cause of overheating before simply replacing the switch.

Before you fit the new switch, take a good look at the old one. If it's corroded or showing signs of heat stress, check the surrounding area for poor airflow or blockages in the heat exchanger that might be causing it to trip repeatedly. A quick fix isn't always the best fix.

Pair With

Pair this Brivis Overheat Switch with other genuine Brivis Heating Spares like gas valves or control boards, and ensure your toolkit includes a reliable multimeter for thorough testing.
