Brivis Heater Electronic Control Hi Module 504

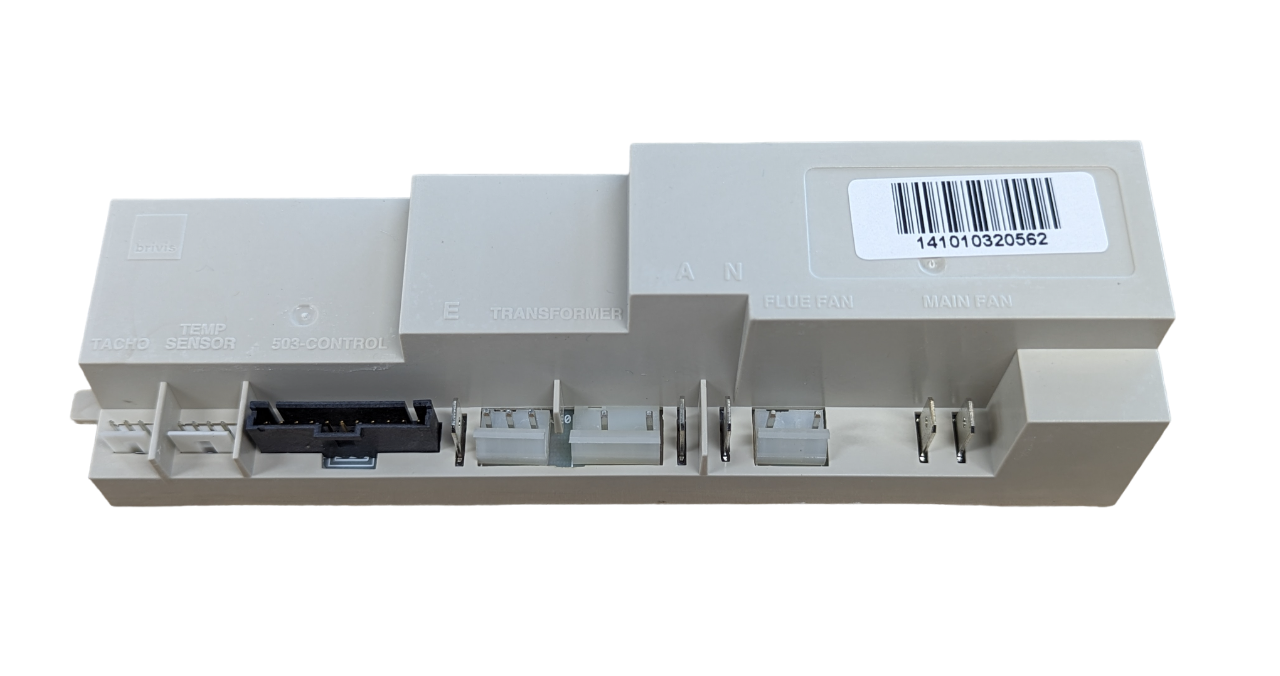

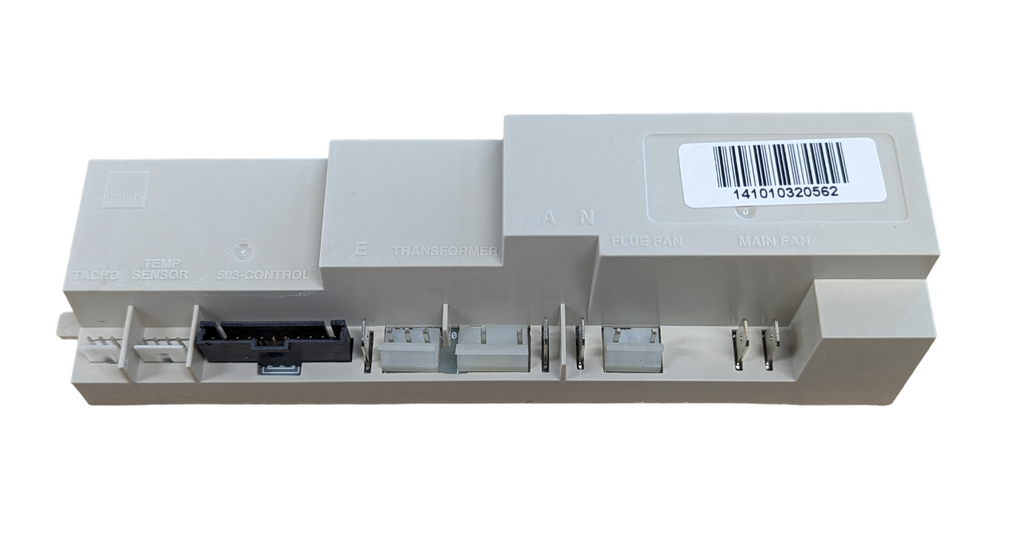

This Brivis Heater Electronic Control Hi Module 504 (BS80014101) is the brainbox for your Brivis ducted gas heater, keeping your system running reliably, especially when the winter chill really bites. When the old board starts playing up, diagnostics can be a nightmare, so swapping it out for a genuine replacement like this one often saves you a lot of grief on the job. It's designed to bring your heater back to spec for consistent performance.

Best For

• HVAC Technicians
• Gas Fitters
• Residential Heater Service Teams
• Competent DIY Homeowners with Brivis systems

Compatibility

This control board is a direct replacement for Brivis Part Number 80014101 (also B014101), specifically the Hi Module 504. It's compatible with several popular Brivis ducted gas heater models, including:

• Brivis Auto EMS series
• Brivis MPS HE series
• Brivis MPS ME series

If you're running a different model, check fittings and specs before ordering.

Features

• Direct Replacement: Matches Brivis PN: 80014101, B014101, ensuring a perfect fit and function.
• Restores Heater Function: Replaces faulty electronics to get your Brivis system operating as intended.
• Genuine Brivis Part: Ensures compatibility and reliability for specific Brivis Auto EMS, MPS HE, and MPS ME models.
• Electronic Control: Manages ignition, combustion, and fan operations for efficient heating.

What's in the Box

• 1 x Brivis Heater Electronic Control Hi Module 504 (BS80014101)

Using It on the Job

1. Isolate Power: Always disconnect mains power to the heater at the circuit breaker and verify with a suitable lockout procedure before starting any work.
2. Access Control Panel: Carefully remove the access panels to expose the existing control board, noting all wiring connections. Take photos if needed.
3. Disconnect & Remove: Label and disconnect all wiring harnesses and sensor leads from the old board. Unscrew and remove the old control module.
4. Install New Module: Mount the new Brivis Hi Module 504 in place, securing it with the original fasteners.
5. Reconnect Wiring: Carefully reconnect all wiring and sensor leads, ensuring correct polarity and secure connections. Double-check against your photos or wiring diagram.
6. Test Operation: Restore power to the heater and perform a full functional test to ensure all heating cycles, fan operations, and safety interlocks are working correctly.

Limitations & Safety Notes

• Always ensure mains power is isolated and locked out before attempting any repair or replacement of electrical components.
• Installation should only be performed by a competent person with appropriate electrical and gas qualifications.
• This module is designed specifically for the Brivis models listed; using it in incompatible systems may cause damage or unsafe operation.
• Follow all Australian standards and Safe Work guidance for working on gas heating appliances.

Tradie Pro Tip

Before you even think about ordering, double-check the part number on the old board in the heater. Brivis has a few different control boards that look similar, and getting the right Hi Module 504 (B014101 / 80014101) for your Auto EMS, MPS HE, or MPS ME is key to avoiding callbacks.

Pair With

When servicing Brivis heaters, it's often a good idea to inspect other common wear parts. Consider pairing this module with a new Brivis Ignitor & Sensor or a Brivis Pressure Switch for a more comprehensive service.
