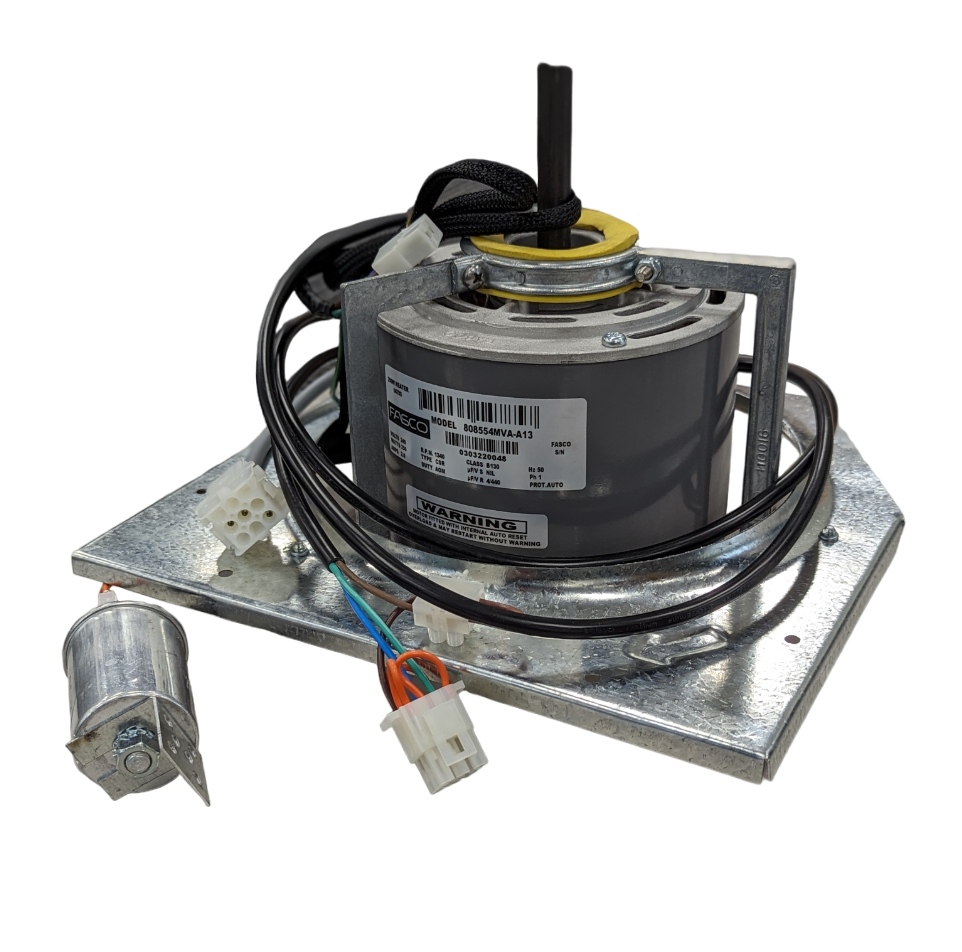

Brivis Gas Heater Fan Motor 650W with Plate & Capacitor

When a Brivis gas heater fan motor calls it quits, you need a replacement that drops straight in. This 650W Brivis Fasco motor, complete with its mounting plate and capacitor, is exactly that – designed to get your ducted gas heater circulating warm air again without fuss. I've swapped out enough of these over the years to know that a good, reliable motor is critical, especially when the colder months hit hard and a family's comfort depends on it.

This genuine Brivis part ensures compatibility and performance, making the job smoother for the technician.

Best For

HVAC technicians, gasfitters, and competent DIYers maintaining Brivis ducted gas heaters.

Compatibility

This fan motor is specifically designed for Brivis gas heating systems. It's a direct replacement for Brivis Part Number 80016072 and B016072. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Brivis replacement part for gas heater fan assemblies.
• Includes pre-fitted mounting plate and capacitor for straightforward installation.
• Powerful 650W output ensures optimal air circulation through ductwork.
• Designed to meet Brivis's original equipment specifications for reliable performance.

Technical Specifications

What's in the Box

• 1 x Brivis Fasco Heater Motor (650W)
• 1 x Mounting Plate (pre-attached)
• 1 x Capacitor (pre-wired)

Using It on the Job

1. Always isolate power to the ducted gas heater at the main switchboard and apply lockout/tagout procedures before starting work.
2. Carefully disconnect existing wiring and mounting hardware from the old fan motor, noting connections for reassembly.
3. Install the new Brivis 650W fan motor, securing the mounting plate and reconnecting electrical terminals as per the manufacturer's wiring diagram.
4. Verify all connections are secure and that the fan wheel (if separate) is properly seated and balanced before restoring power.
5. Test the heater's operation across all fan speeds and heat stages to confirm correct air delivery and motor function.

Limitations & Safety Notes

• Only compatible with specific Brivis gas heater models requiring this part number (B016072 / 80016072).
• Electrical work should only be performed by a licenced electrician or competent, qualified technician.
• Always follow manufacturer's installation instructions and local safety regulations.
• Ensure the fan wheel is correctly aligned and secure to prevent vibration or damage once installed.

Before pulling the old motor out, take a few photos of the wiring and mounting. It makes putting the new one in a whole lot quicker and stops those head-scratching moments later on.

Pair With

Pair with other Brivis heating spares like ignitors, pressure switches, or control boards, and ensure your toolkit includes quality electrical test meters and insulated hand tools for a safe and effective replacement.
