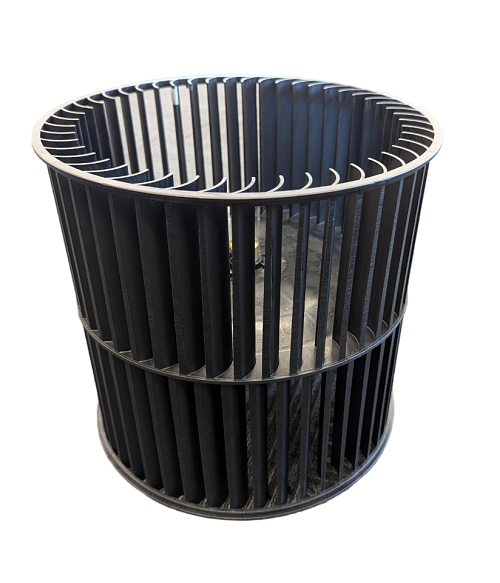

Brivis Gas Ducted Heater Plastic Blade Fan Wheel 10x10

This Brivis Plastic Blade Fan Wheel is a direct swap for specific Brivis gas ducted heaters, helping HVAC techs and homeowners keep their heating systems pushing air. When you're out on a call in winter and a fan wheel has failed, having the right part on hand means getting the heat back on fast for your customer.

It’s built to circulate air effectively, ensuring your ducted system operates as it should, even through those frosty Aussie mornings.

Best For

• HVAC Service Technicians
• Gas Heating Installers
• Maintenance Teams
• Competent DIY Homeowners repairing Brivis ducted heaters

Compatibility

This fan wheel is designed for Brivis gas ducted heaters that require a 10x10 inch plastic blade. It's a direct replacement for Brivis part numbers B000127 and 80000127.

If you're running a different model, check fittings and specs before ordering.

Features

• Direct replacement Brivis fan wheel, ensuring a precise fit.
• Made from durable black plastic for long-lasting performance.
• Specifically sized at 10 x 10 inches for optimal airflow.
• Features a 1/2 inch bore for standard motor shafts.

Technical Specifications

What's in the Box

• 1x Brivis Gas Ducted Heater Plastic Blade Fan Wheel (10x10 inches, 1/2 inch Bore, Black)

Using It on the Job

1. Always isolate power to the ducted heater at the main breaker and use a lockout tagout device before beginning any work.
2. Access the blower assembly, carefully noting how the existing fan wheel is mounted.
3. Remove the retaining screw or clamp from the motor shaft and slide off the old fan wheel.
4. Clean the motor shaft if necessary and slide the new Brivis 10x10 fan wheel onto the shaft, ensuring it's seated correctly.
5. Secure the new fan wheel with the retaining screw or clamp, making sure it's tight and the wheel spins freely without wobble.
6. Reassemble the blower housing and restore power to the unit, then test for proper operation and airflow.

Limitations & Safety Notes

• Only use this fan wheel for compatible Brivis gas ducted heater models requiring a 10x10 inch plastic blade with a 1/2 inch bore.
• Ensure the motor shaft is clean and free of burrs before installation to prevent damage to the new wheel.
• Always disconnect power before servicing to avoid electrical shock or injury.
• Verify correct rotation direction and secure mounting after installation to prevent vibration and premature failure.

Tradie Pro Tip

Before you fit the new wheel, give the blower housing a good clean out. All that dust and lint can throw off the balance and reduce airflow, making your new fan wheel work harder than it needs to. It's a quick job that saves call-backs.

Pair With

Consider pairing this fan wheel with new run capacitors or a replacement blower motor if other components in your Brivis heating system are also showing wear. Don't forget general heating spare parts like ignitors and flame sensors.
