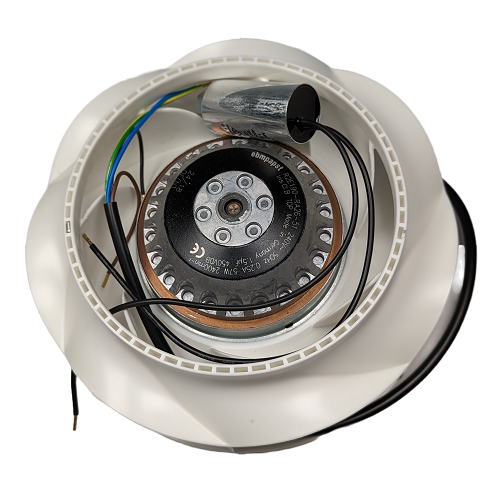

Brivis Gas Ducted Heater Flue Fan 190mm

This Brivis 190mm flue fan is a direct replacement part for Brivis MPS Series gas ducted heaters, ensuring safe and efficient combustion air removal. Keeping your heater's flue fan in top condition is critical for proper operation and carbon monoxide safety, especially after a tough Australian winter season where heaters work overtime.

Designed to pull combustion gases out and away from your living space, a failing flue fan needs quick attention to prevent lockout or, worse, dangerous flue gas spillage. This unit comes with the capacitor pre-fitted, ready for installation.

Best For

• HVAC Technicians performing Brivis heater service and repairs.
• Gas Fitters working on ducted heating systems.
• Building Maintenance teams looking for genuine Brivis replacement parts.

Compatibility

This flue fan (Brivis Part No: 80080131, B080131) is specifically designed to suit Brivis MPS Series gas ducted heaters. The 190mm fan size is a key identifier for this particular model. If you're running a different model, check fittings and specs before ordering.

Features

• Direct Replacement: Matches original Brivis specifications for a seamless fit.
• 190mm Flue Fan: Standard size for compatible Brivis MPS Series units.
• Integrated Capacitor: Comes with the necessary start/run capacitor already wired in, simplifying installation.
• Genuine Brivis Part: Ensures optimal performance and longevity for your ducted heater.

Technical Specifications

What's in the Box

• 1 x Brivis Gas Ducted Heater Flue Fan (190mm)
• 1 x Integrated Capacitor

Using It on the Job

1. Safety First: Always ensure power to the heater is isolated at the main switchboard and locked out before commencing any work. Turn off the gas supply.
2. Access & Removal: Carefully locate and access the existing flue fan. Disconnect wiring, noting connections, and remove mounting fasteners.
3. Installation: Install the new Brivis 190mm flue fan, ensuring it seats correctly and fasteners are tightened to manufacturer specifications. Connect wiring precisely as removed.
4. Check & Test: Restore gas and power. Perform thorough post-installation checks, including ignition, combustion, and safe flue gas exhaust, using appropriate test equipment like a combustion analyser.
5. Leak Test: If any gas connections were disturbed, perform a gas leak test using leak detection fluid or a sniffer.

Limitations & Safety Notes

• This part is designed for Brivis MPS Series heaters only. Verify your model before purchase.
• Installation and servicing of gas appliances must only be carried out by a licensed gas fitter or qualified technician.
• Always follow Australian standards and Safe Work guidance when working with gas appliances and electrical components.
• Ensure proper flue system integrity and ventilation after replacement to prevent dangerous flue gas re-entry.

"When you're replacing one of these, always give the flue pipe connection a good once-over. Corrosion or blockages here can put extra strain on the new fan, leading to early failure or, worse, safety issues. A bit of preventative maintenance goes a long way."

Pair With

Pair this flue fan with a quality digital manometer for checking system pressures, and a reliable combustion analyser to verify efficient and safe heater operation after installation. Don't forget basic hand tools and electrical testers from our HVAC Shop categories.
