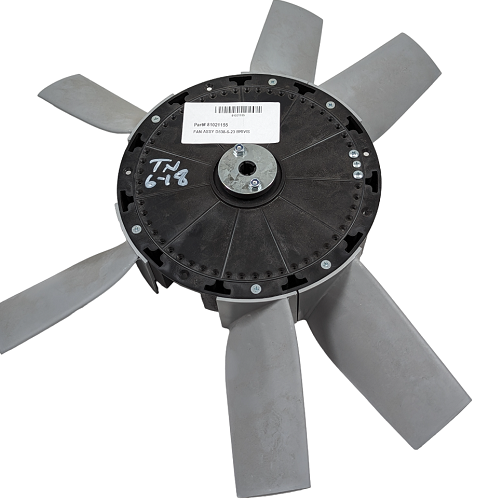

Brivis Fan Assembly D538-6-23

This is a replacement fan assembly for Brivis evaporative coolers. If your old fan is out of balance or just packed it in after years of service in the Aussie heat, this genuine part will get your cooler moving air again.

It's crucial for maintaining consistent airflow and unit efficiency, especially on those scorching summer days when your evaporative cooler is working flat out.

Best For

• HVAC technicians servicing Brivis evaporative cooling units.
• Competent DIY homeowners replacing parts on their own Brivis units.

Compatibility

This fan assembly is designed to suit Brivis evaporative cooling units and is a direct replacement for Brivis Part Number 81021155 (also referred to as B021155). If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Brivis D538-6-23 fan blade ensures correct fit and performance.
• Includes the necessary collet for secure installation onto the fan motor shaft.
• Direct replacement part, simplifying the repair process.
• Built to Brivis factory specifications for evaporative cooling units.

What's in the Box

• Brivis Fan Blade, D538-6-23
• Fan Collet

Using It on the Job

1. Isolate Power: Always ensure the evaporative cooler's power supply is isolated at the main switchboard before starting work. Use lockout/tagout procedures if available.
2. Remove Old Fan: Carefully detach and remove the old fan assembly, noting its orientation and any mounting hardware.
3. Install New Fan: Position the new Brivis Fan Assembly D538-6-23, ensuring the collet is correctly seated on the motor shaft and all fasteners are tightened to manufacturer specifications.
4. Check Balance: Before restoring power, manually spin the fan to check for any obstructions or signs of imbalance.
5. Test Operation: Restore power and test the evaporative cooler's operation, checking for proper airflow, reduced vibration, and normal noise levels.

Limitations & Safety Notes

• Always isolate the main power supply to the unit before undertaking any maintenance or repair work.
• Ensure the fan is securely fastened and balanced to prevent excessive vibration, which can lead to further damage.
• This assembly is designed specifically for Brivis evaporative units; check your model's compatibility.
• Wear appropriate Personal Protective Equipment (PPE), such as gloves and eye protection, during installation.

Tradie Pro Tip

Before you button everything up, give the fan blades a quick spin by hand. You're just checking for any rubs or fouling, making sure it's smooth before the motor takes over. Saves you pulling it all apart again if something's not quite right.

Pair With

Pair with other Brivis evaporative cooling spares or a quality set of basic hand tools for a smooth replacement job.
