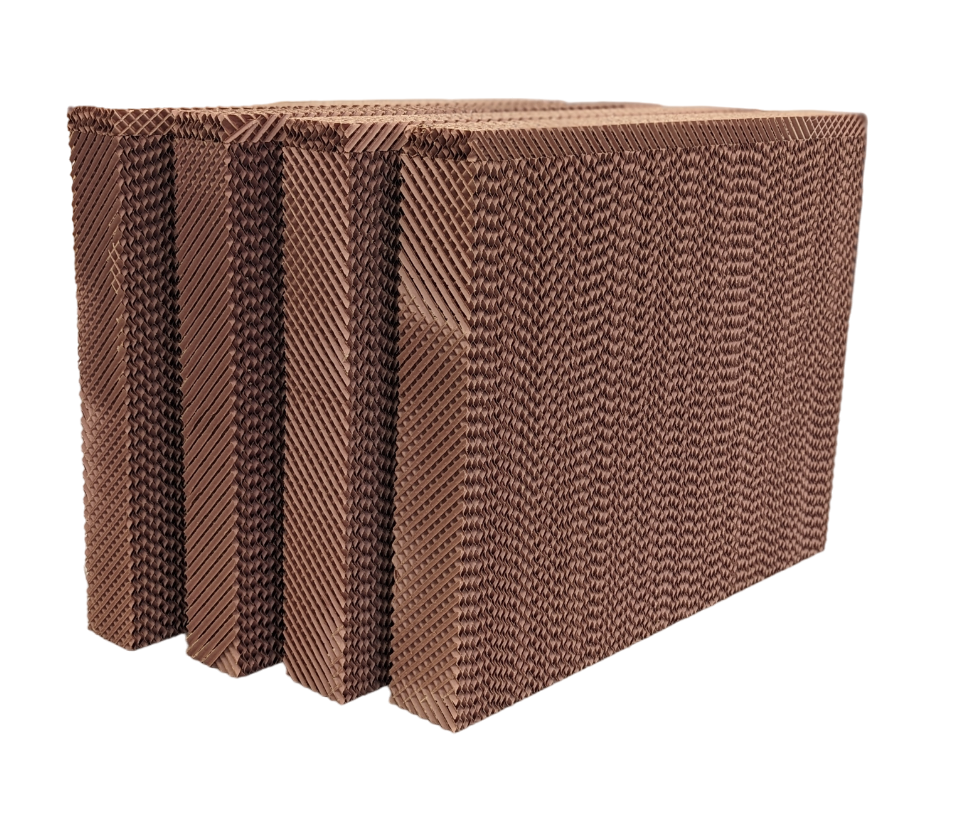

Brivis Evaporative Cooler Pad Set (4) AD/AC Series

This Brivis Evaporative Cooler Pad Set, including four pads, is essential for keeping your unit running efficiently, especially during the hot Australian summer. Replacing worn-out pads improves air quality and maximises your cooler's performance, ensuring you get the most out of your evaporative system.

Old, hardened pads can drastically reduce airflow and cooling capacity, making your unit work harder for less comfort. Fresh pads are key to pulling in and cooling air effectively across a wide contact area.

Best For

• HVAC technicians performing routine evaporative cooler servicing.
• Competent DIY homeowners maintaining their Brivis evaporative cooling systems.
• Service and maintenance teams for residential or light commercial evaporative coolers.

Compatibility

This pad set is specifically designed for Brivis AD/AC Series evaporative coolers. It suits models including:

• AC64
• AC65
• AD86
• CC42
• CC43
• CC44
• CC45

The pads in this set measure approximately 825mm (height) x 530mm (width) x 100mm (thickness). Always double-check your existing pad dimensions and Brivis model number before ordering to ensure a correct fit.

Features

• Direct Fit: Designed as a genuine replacement for specific Brivis AD/AC series evaporative coolers.
• Complete Set: Includes four pads, providing a full replacement for most standard units.
• Standard Dimensions: Each pad measures 825mm x 530mm x 100mm for optimal fit in compatible models.
• Improved Efficiency: Helps restore your evaporative cooler's ability to draw and cool air effectively.

Technical Specifications

What's in the Box

• 4 x Brivis Evaporative Cooler Pads (825mm x 530mm x 100mm)

Using It on the Job

1. Isolate Power: Always turn off and lockout the power to your evaporative cooler at the mains before starting any work.
2. Access Pads: Open the cooler's side panels or lid to gain access to the old filter pads.
3. Remove Old Pads: Carefully remove the old, worn-out pads. Note their orientation for correct installation of the new ones.
4. Clean Cooler: While the pads are out, take the opportunity to clean the cooler's internal surfaces, water tray, and pump filter.
5. Install New Pads: Insert the new Brivis pads, ensuring they are seated correctly and securely.
6. Restore & Test: Close up the cooler, restore power, and test the unit's operation. Check for even water distribution over the pads.

Limitations & Safety Notes

• Only compatible with the Brivis AD/AC series models listed; confirm your model and existing pad dimensions before purchase.
• Always ensure power is isolated and locked out before servicing any electrical appliance.
• Follow all instructions in your Brivis evaporative cooler's owner's manual for proper pad replacement.
• Wear appropriate PPE, such as gloves, as internal cooler components can be dirty or sharp.

Tradie Pro Tip: When you're replacing pads, always check the water pump and float valve too. They're often neglected, and a fresh set of pads won't do much good if you're not getting enough water flow or if the tank is overflowing.

Pair With

Pair with other Brivis Evaporative Cooler Spares like Brivis pumps, float valves, or control boards to complete your system's preventative maintenance for the season.
