Brivis Ducted Gas Control Electronic Interface 509

This Brivis Ducted Gas Control Electronic Interface 509 (BS80017529) is a vital replacement part for maintaining your Brivis ducted heating system, ensuring reliable operation and efficient temperature management.

When a control board fails, especially during a cold snap, getting a genuine replacement quickly is crucial for customer comfort. After diagnosing a faulty control module, there's no substitute for fitting a factory-spec replacement to get a ducted gas heater back online and keep it running smoothly in Australian conditions.

Best For

HVAC technicians, service and maintenance teams, and competent DIY owners working on Brivis ducted gas heating systems.

Compatibility

Specifically designed for Brivis ducted gas heating systems that utilise the 509 electronic control interface. This part is a direct replacement for Brivis PN: 80017529 and B017529. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Brivis replacement part for reliable performance.
• Electronic control interface 509 ensures proper system management.
• Direct fit for compatible Brivis ducted gas heating systems.
• Helps restore and maintain safe and efficient heater operation.

What's in the Box

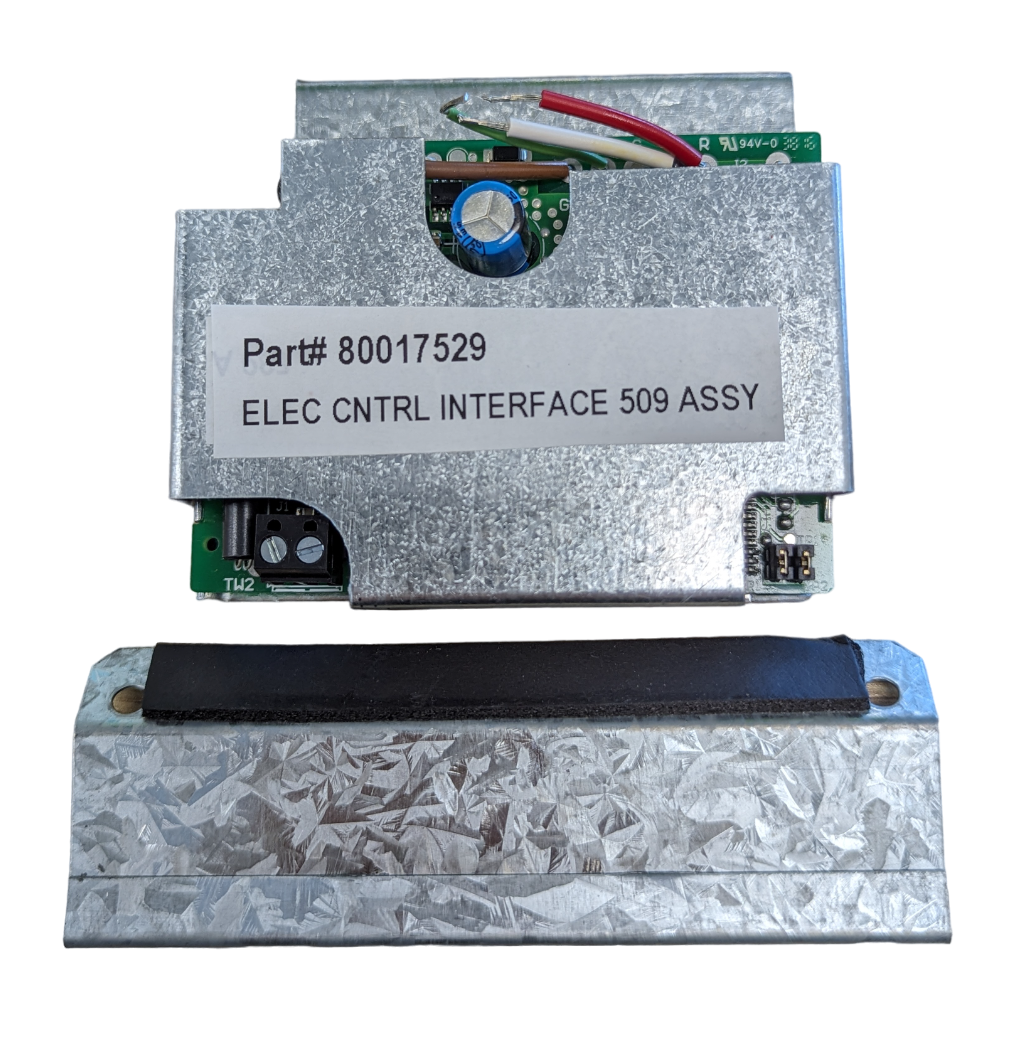

• One (1) Brivis Control Module 509 Electronic Control Interface Assembly (BS80017529).

Using It on the Job

1. Always isolate power to the ducted gas heater at the main switchboard before starting any work. Use lockout/tagout procedures.
2. Carefully disconnect the wiring harness and any other connections from the old control module, noting their positions. Take photos if needed.
3. Remove the old Brivis 509 module from its mounting.
4. Install the new BS80017529 module, ensuring all mounting points are secure and it sits correctly.
5. Reconnect all wiring, ensuring connections are tight, correct, and match the manufacturer's diagrams.
6. Restore power and thoroughly test the heating system's operation, including safety shutdowns and thermostat control.

Limitations & Safety Notes

• Installation requires a competent person with appropriate electrical knowledge.
• Always ensure power is isolated before commencing installation or any servicing.
• This module is only for the compatible Brivis ducted gas heating systems listed above.
• Follow all Australian standards, local regulations, and the manufacturer's installation guidelines.

When replacing control boards, always double-check all terminal connections. A loose connection can cause intermittent faults, or worse, damage the new board. Also, inspect nearby components for signs of why the original board failed, like water ingress or pest damage.

Pair With

Pair with a new Brivis wall controller or a pressure switch if you're troubleshooting a complete system malfunction. For diagnostics, a good multimeter and a combustion analyser are essential.
