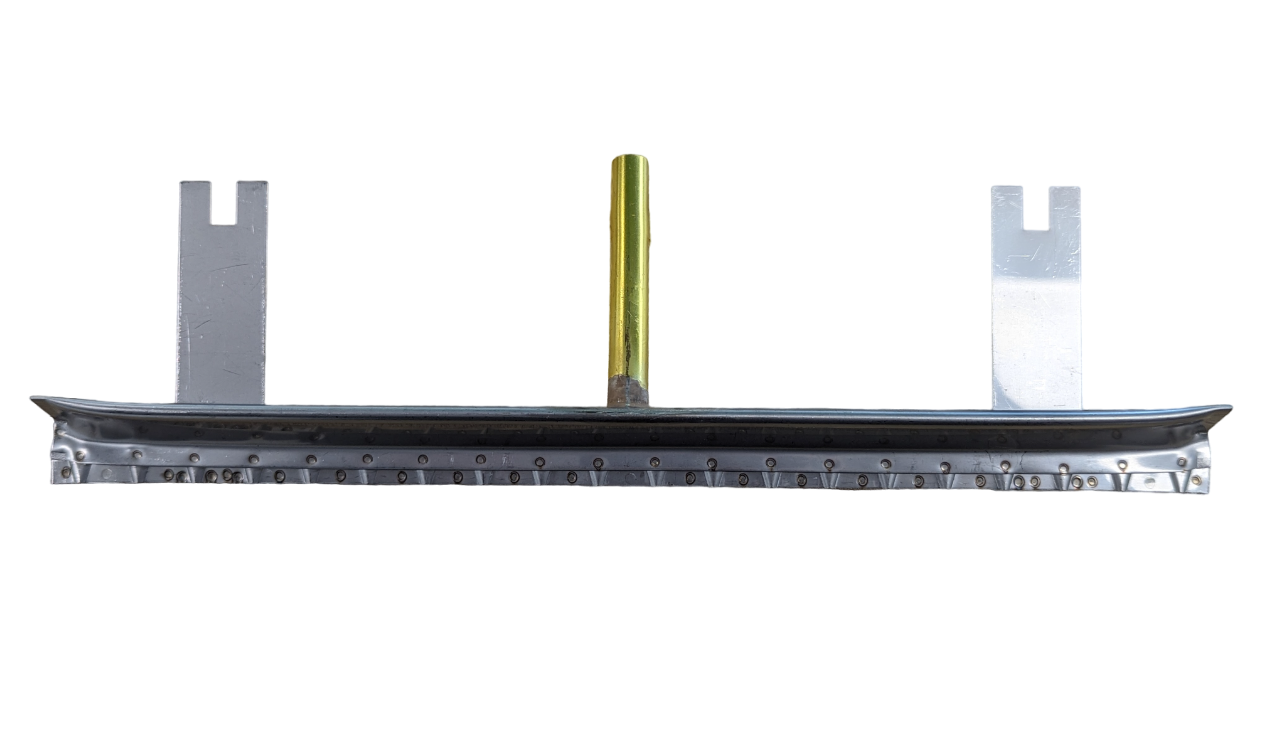

Brivis Burner Zip Tube 85/92MJ (Medium)

This Brivis Burner Zip Tube is a direct replacement part designed to keep your ducted gas heater running smoothly. It's built for specific Brivis models, ensuring reliable combustion and efficient heating when the cooler weather hits.

We've all been on a job where a faulty burner leaves a customer in the cold, so having the right genuine spare on hand saves call-backs and keeps everyone happy.

Best For

• Licensed gasfitters performing Brivis gas heater service and repairs.
• HVAC technicians maintaining Brivis ducted heating systems.
• Residential and light commercial gas heating applications.

Compatibility

This zip tube is specifically compatible with Brivis ducted gas heaters rated for 85MJ or 92MJ. It replaces original Brivis part numbers 80021046 and B021046. Always cross-reference the MJ rating and part number with your specific heater model before ordering.

If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Brivis spare part for assured fit and function.
• Rated for 85MJ/92MJ gas heaters, matching common Brivis models.
• Designated as a 'Medium' size zip tube for specific applications.
• Identical to original Brivis PN: 80021046 or B021046.
• Built to Brivis factory specifications for reliable operation.

Technical Specifications

What's in the Box

• 1 x Brivis Burner Zip Tube (Medium, 85/92MJ, BS80021046)

Using It on the Job

1. Safety First: Before commencing any work, ensure the gas supply and electrical power to the heater are fully isolated and locked out according to Australian standards.
2. Access Burner: Carefully open the heater's combustion chamber to access the burner assembly, following the manufacturer's instructions for your specific Brivis model.
3. Remove Old Tube: Disconnect any fasteners or clips holding the old zip tube in place and remove it, taking care not to damage other components.
4. Install New Tube: Position the new Brivis Burner Zip Tube, ensuring it seats correctly and securely. Fasten it into place.
5. Leak & Ignition Checks: Restore gas and power. Perform thorough gas leak checks on all connections. Cycle the heater through an ignition sequence to confirm proper flame pattern and operation.
6. Test Operation: Run the heater through a full cycle, checking for consistent heating and no abnormal sounds or smells.

Limitations & Safety Notes

• Installation and servicing of gas appliances must only be performed by a currently licensed gasfitter in Australia.
• This zip tube is only compatible with Brivis gas heaters matching the specified MJ rating and part numbers.
• Always refer to the heater's service manual for specific installation procedures and safety warnings.
• Do not attempt to modify this component or use it for purposes other than its intended design.
• Always perform thorough gas leak testing after replacing any gas-carrying component.

Tradie Pro Tip: Before you even think about ordering, get your eyes on the heater's data plate. Double-check the exact MJ rating and the original part number. It saves a heap of grief when you're on site and need to swap it out.

Pair With

Pair with other Brivis Heating Spares and a reliable flame failure device for comprehensive heater maintenance. Don't forget your gas leak detection fluid to confirm all new connections are sound.
