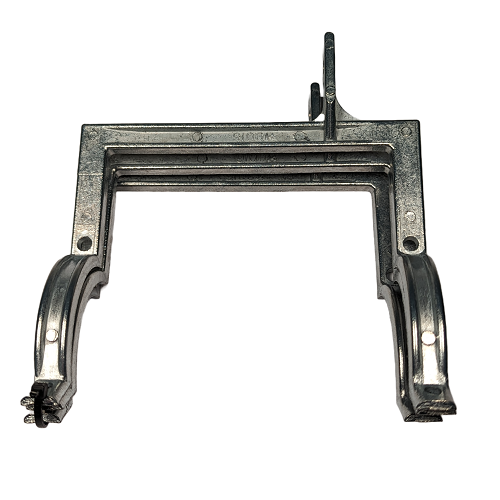

Brivis Bracket Motor Kit 114/35

This Brivis Bracket Motor Kit 114/35 is a genuine replacement part designed to securely mount Fasco motors in your Brivis heating unit. Keeping your fan motor stable is crucial for efficient air movement and preventing vibration damage, especially when your heater is working hard through a cold Australian winter.

It's built for HVAC techs and competent DIYers needing to replace or service existing Brivis heating systems.

Best For

• Replacement or service of Brivis heating systems.
• Securing Brivis heating Fasco fan motors.
• Preventing motor vibration issues and extending lifespan.

Compatibility

This bracket is specifically designed for Brivis heating units that utilise Fasco motors. It matches Brivis Part Number 80009100.

If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Brivis replacement part for reliable fit and performance.
• Designed specifically for Brivis heating Fasco motors.
• Ensures stable and secure motor mounting within the unit.
• Helps reduce operational vibration and extend the service life of the fan motor.

What's in the Box

• 1 x Brivis Bracket Motor Kit 114/35 (Brivis PN: 80009100)

Using It on the Job

1. Before starting any work, isolate power to the heating unit at the main switchboard and apply lockout/tagout procedures.
2. Carefully access the fan motor compartment, observing how the old bracket is positioned and attached.
3. Unmount the old motor and remove the damaged or worn bracket from the heating unit.
4. Install the new Brivis Bracket Motor Kit 114/35, ensuring all mounting points align correctly with the chassis.
5. Securely mount the Fasco motor onto the new bracket, tightening all fasteners to the manufacturer's specified torque.
6. Double-check all connections, clearances, and ensure no wiring is pinched before restoring power and thoroughly testing the heating unit's operation.

Limitations & Safety Notes

• Always isolate power before working on any electrical or mechanical components of heating systems.
• Only use this bracket with compatible Brivis heating Fasco motors as specified by Brivis Part Number 80009100.
• Follow all relevant Australian standards and Safe Work guidance when performing maintenance or repairs.
• Ensure all fasteners are properly tightened to prevent vibration and potential dislodgement during operation.

When you're swapping out one of these, always take a quick photo of the original setup before you pull anything apart. It makes putting the new one back in a breeze, especially if you're working in a tight spot under the house or in the roof cavity.

Pair With

Pair with other Brivis heating spares or a new Fasco fan motor if yours is past its prime. Also, consider replacing any worn vibration dampeners for a smoother running unit and reduced noise.
