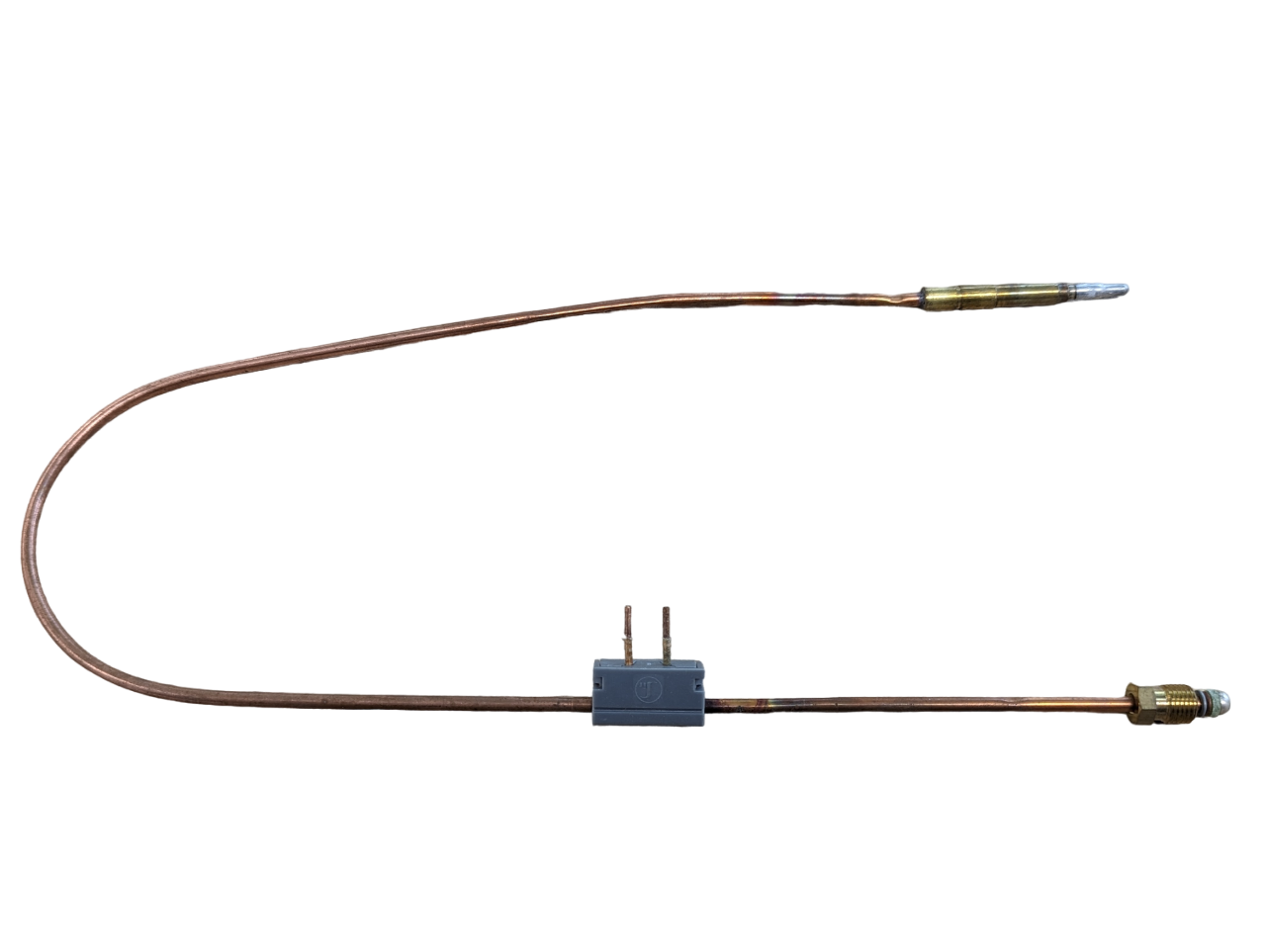

Braemar Wall Furnace Thermocouple

This genuine Braemar Wall Furnace Thermocouple is a critical safety component for your D45 and D55 models. It's designed to reliably sense the pilot flame, ensuring the gas valve shuts off safely if the flame isn't present, preventing dangerous gas build-ups.

When you're dealing with older units in the dead of winter, a faulty thermocouple can mean no heat at all. Having a direct replacement on hand means you can get the furnace back up and running fast, keeping your customers warm when it counts.

Best For

• HVAC technicians and gas fitters servicing Braemar wall furnaces.
• Appliance service teams conducting routine maintenance or repairs.
• Competent homeowners maintaining their own Braemar D45/D55 heating units.

Compatibility

This thermocouple is specifically designed as a direct replacement for Braemar D45 and D55 wall furnace units. It matches the SIT 0270416 part number, ensuring a perfect fit and reliable operation with these specific models. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Braemar component, guaranteeing proper fit and reliable operation with your unit.
• Measures 600mm in length, suitable for specific Braemar D45 and D55 wall furnaces.
• Essential safety device for flame supervision, preventing gas flow if the pilot light fails.
• Direct replacement for SIT Part Number 0270416.

Technical Specifications

What's in the Box

• 1 x Braemar Wall Furnace Thermocouple (600mm)

Using It on the Job

1. Always isolate the gas supply and electrical power to the furnace before commencing any work.
2. Safely access the pilot assembly and thermocouple connections inside the Braemar wall furnace.
3. Carefully disconnect the old thermocouple, making note of its routing and how it's connected at both ends.
4. Install the new 600mm thermocouple, ensuring the tip is correctly positioned within the pilot flame path.
5. Reconnect all fittings securely, then restore gas and power to test for proper ignition and flame proving.
6. Conduct a thorough gas leak check at all disturbed connections using an approved leak detection solution.

Limitations & Safety Notes

• Installation of gas appliance components requires appropriate licensing (e.g., gas fitter's licence) as per Australian regulations.
• This thermocouple is designed specifically for Braemar D45 and D55 wall furnace models only.
• Always follow the furnace manufacturer's installation instructions and local gas fitting codes.
• Ensure adequate ventilation is maintained when working on or near gas appliances.

Tradie Pro Tip

Before pulling the old thermocouple out, take a photo of its routing and how it sits in the pilot flame. It'll save you a headache getting the new one seated perfectly and prevent nuisance lockouts.

Pair With

Pair with a reliable gas leak detector and general heating spares like ignitors or pilot assemblies to ensure a complete repair or service for your Braemar unit.
