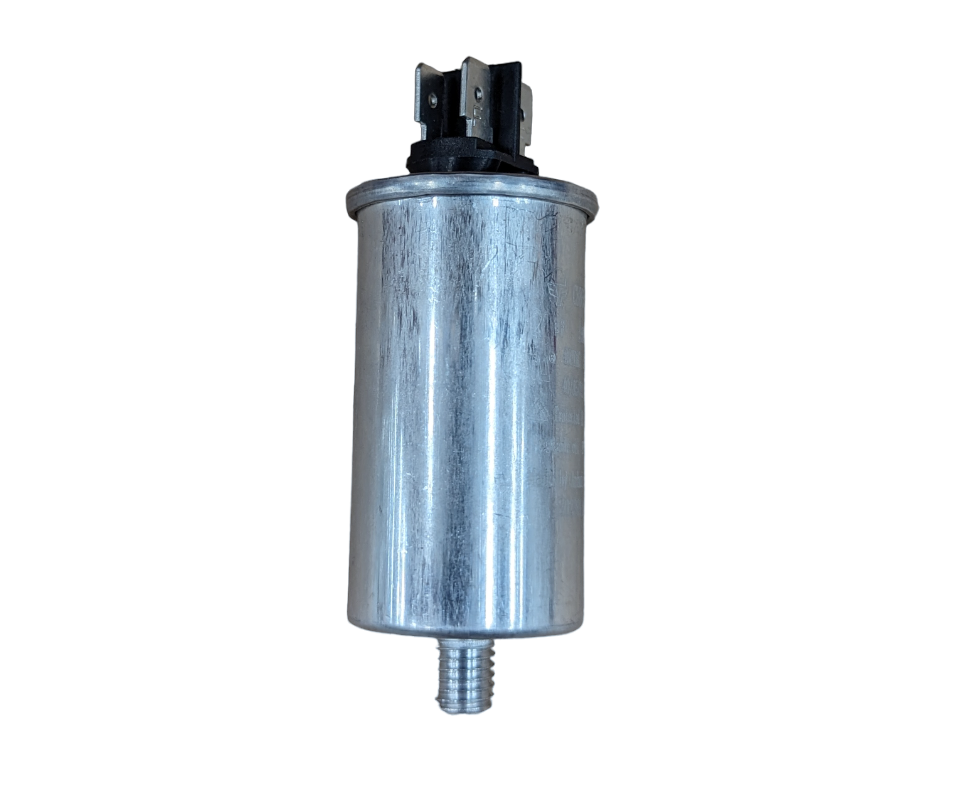

Braemar Wall Furnace Capacitor 2UF

This Braemar 2UF capacitor (SY612089) is a direct replacement for your WF2000 series wall furnace. It’s a critical component for reliable fan motor starting, helping HVAC techs and competent DIY owners keep these proven heaters running smoothly through the colder months.

In Australian winters, especially down south, a furnace failing to fire up its fan due to a dead capacitor is a common call-out. Swapping one of these out is often a quick and effective fix if it’s the culprit, getting your customers warm again in no time.

Best For

• Braemar WF2000 series wall furnace owners.
• HVAC service and maintenance technicians.
• Anyone performing routine heater repairs.

Compatibility

This capacitor is specifically designed as a genuine replacement part for Braemar WF2000 series wall furnaces. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Braemar spare part, ensuring proper fit and function.
• 2UF capacitance for correct fan motor starting and operation.
• Rated for 250V, suitable for standard residential furnace electrical systems.
• Direct replacement for Braemar part number SY612089 (also Seeley PN: 612089).

Technical Specifications

What's in the Box

• 1 x Braemar Wall Furnace Capacitor 2UF (SY612089)

Using It on the Job

1. Always isolate power to the furnace at the main switchboard and apply lockout/tagout procedures before commencing any work.
2. Access the furnace's control panel and carefully locate the existing capacitor. Note its orientation and wiring connections.
3. Carefully discharge the old capacitor using an insulated screwdriver across its terminals or a purpose-built discharge tool to prevent electric shock, even after power is off.
4. Disconnect the wiring from the old capacitor and remove it from its mounting.
5. Install the new SY612089 capacitor, ensuring correct wiring connections and secure mounting. Double-check all terminals.
6. Restore power to the furnace and test its operation, specifically observing the fan motor's start-up sequence.

Limitations & Safety Notes

• This capacitor is suitable only for compatible Braemar WF2000 series wall furnace models.
• Always disconnect and lockout electrical power before handling. Capacitors can store a dangerous charge even when power is off.
• Wear appropriate Personal Protective Equipment (PPE), including insulated gloves and eye protection, when working with electrical components.
• Installation and replacement should only be performed by qualified personnel or competent DIY owners who are familiar with electrical safety procedures.

Tradie Pro Tip: When troubleshooting a furnace that won't start its fan, a dead capacitor is often overlooked. Always check it with a multimeter set to capacitance mode; it's a quicker diagnosis than pulling the motor apart unnecessarily.

Pair With

Pair with a reliable multimeter for testing electrical components and other Braemar or Seeley heating spares to keep those older systems running efficiently and reliably.
