Braemar Spectrolink Wall Controller Test Cable

This Braemar Spectrolink test cable is a handy bit of kit for any tech troubleshooting Braemar wall controllers. It gives you a dedicated 1-metre lead to check connections and signals without having to stretch or jury-rig something.

It’s exactly what you need for a quick diagnostic on a ducted system, especially in a tight roof space or an older install where wiring can be tricky.

Best For

• HVAC service technicians
• Apprentices learning fault diagnosis
• Competent DIY owners maintaining Braemar systems

Compatibility

This low-voltage 4-pin test cable is specifically designed for Braemar Spectrolink wall controllers used in compatible ducted gas heating or evaporative cooling systems. If you're running a different model, check fittings and specs before ordering.

Features

• Direct Spectrolink Connection: Features a 4-pin low-voltage connector specifically for Braemar Spectrolink wall controllers.
• Convenient 1-Metre Length: Provides enough reach for easy testing without excess cable clutter.
• Durable Construction: Built to handle regular use in the field for diagnostic tasks.
• Genuine Braemar Part: Supplied under Seeley PN 831534, ensuring proper fit and function.

Technical Specifications

What's in the Box

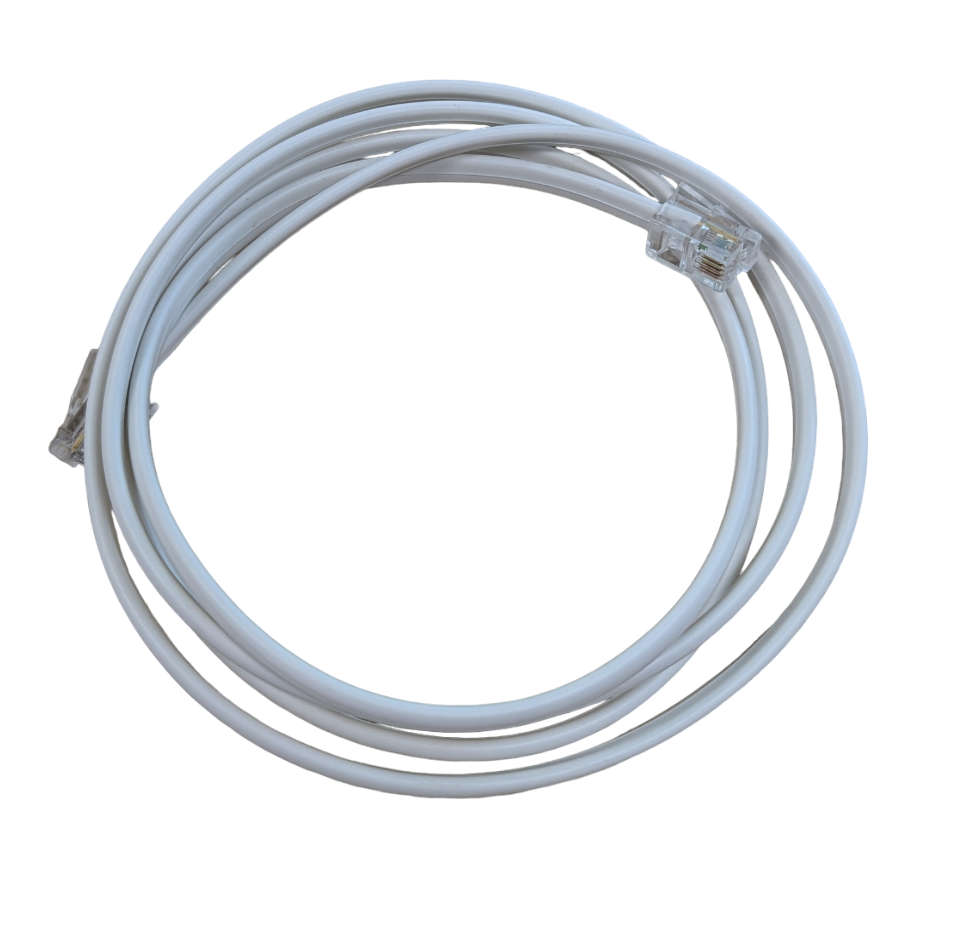

• 1 x Braemar Spectrolink Wall Controller Test Cable (1 metre, 4-pin low voltage)

Using It on the Job

1. Always isolate power to the ducted system's main control board before connecting or disconnecting any wiring looms.
2. Locate the Spectrolink wall controller connection point, typically on the main control board.
3. Connect the 4-pin test cable directly to the appropriate port.
4. Use your multimeter or other diagnostic tools to check continuity, voltage, or signal integrity as required.
5. Once testing is complete, disconnect the cable and restore power to the system, verifying normal operation.
6. Keep the cable clean and stored securely to prevent damage to the connectors.

Limitations & Safety Notes

• Only for use with Braemar Spectrolink wall controllers and compatible low-voltage circuits.
• Not designed for live electrical work; always isolate power first.
• Ensure connectors are clean and undamaged before use to prevent false readings.
• Always follow general electrical safety guidelines and Safe Work procedures for HVAC diagnostics.

I always keep one of these test cables handy. It saves a heap of time trying to back-probe terminals or extending short leads when you're trying to figure out if it's the controller, the board, or the wiring itself. Makes isolating the fault a lot cleaner.

Pair With

Pair with a reliable digital multimeter and the relevant Braemar technical manuals for comprehensive fault finding. Consider replacement Braemar wall controllers or control boards if the diagnostic confirms a failed component.
