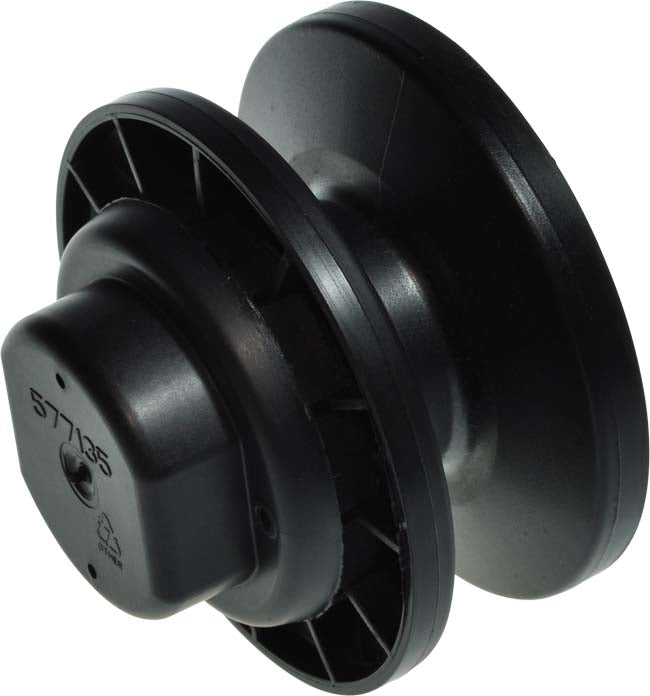

Braemar Motor Pulley Small 90MM

This Braemar 90mm Motor Pulley is an essential spare part for maintaining the belt drive on your evaporative cooler. It's designed to keep your unit running smoothly and efficiently.

Keeping the pulley system in good nick is crucial for efficient airflow, especially during a hot Australian summer when these units work overtime. A worn pulley can lead to reduced performance or even fan motor failure.

Best For

• HVAC techs undertaking evaporative cooler service, maintenance, or repair.
• Competent DIY owners replacing worn components on Braemar or Breezair units.

Compatibility

This small 90mm motor pulley is specifically designed for use with Braemar and Breezair evaporative cooling units. It’s a direct replacement for Seeley PN 108070. If you're running a different model, check fittings and specs before ordering.

Features

• Adjustable Belt Drive: Allows for precise tensioning of the fan belt, optimising fan speed and system efficiency.
• OEM Compatibility: Directly replaces Seeley Part Number 108070, ensuring a perfect fit and reliable operation.
• Durable Construction: Built to withstand the typical operating conditions within evaporative coolers, ensuring long-term performance.
• Standard 90mm Size: A common size for many residential evaporative cooler applications.

What's in the Box

• 1 x Braemar Motor Pulley Small 90MM (SY108070)

Using It on the Job

1. Before starting any work, always ensure the evaporative cooler's main power supply is isolated and locked out to prevent accidental startup.
2. Access the motor and fan assembly, taking note of the existing belt routing and how the old pulley is secured.
3. Loosen any fasteners, remove the fan belt, and then carefully detach the worn or damaged pulley.
4. Install the new 90mm pulley, re-attach the belt, and adjust the tension. Proper belt tension is critical for smooth, wobble-free operation and to prevent premature wear on components.
5. Double-check all connections and ensure no tools or loose parts are left inside the unit before restoring power and testing.

Limitations & Safety Notes

• Always isolate the evaporative cooler's power supply before attempting any service or repair.
• Ensure correct belt tensioning to avoid excessive load on the motor or potential fan bearing damage.
• This pulley is only for use on compatible Braemar and Breezair units as specified.
• Follow all manufacturer's guidelines for installation and maintenance procedures.

Tradie Pro Tip

When swapping out a pulley, it's a smart move to inspect the fan belt and motor bearings too. A new pulley on a worn belt or dodgy bearing won't last long, and you'll be back on site sooner than you'd like. Save yourself a callback.
